Generic · SKU: thfpm1674

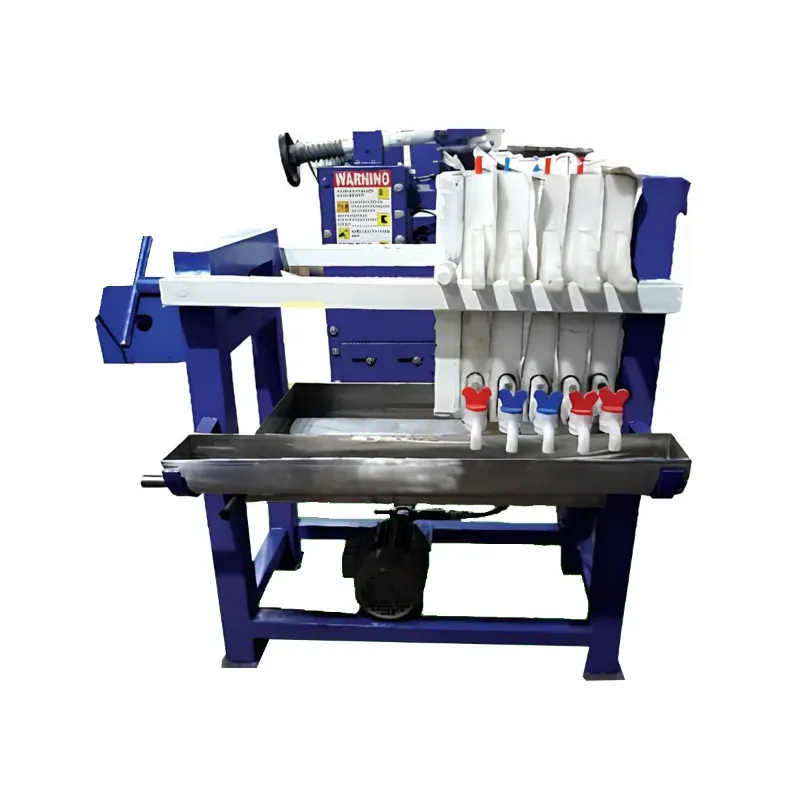

Automatic Oil Filter Press (Standard), 100-120 Litre Per Hour

Name: Automatic Oil Filter Press (Standard), 100-120 Litre Per Hour
Brand: Generic
SKU: thfpm1674
Availability: InStock

In Stock

₹99,396₹1,00,400-1% OFF

Bulk Pricing Tiers

🚚

Free Delivery

Orders above ₹2,000

📋

GST Invoice

Instant download

🔄

Easy Returns

7-day policy

⭐

Quality Checked

Verified listing

Brand	Generic
Material	Mild Steel
Weight (Approx.)	200 kg
Motor & Pump	1 HP
Motor RPM	960 RPM
Phase	3 Phase/ 1 Phase
Capacity	50-70 Liters/hr
Oil Tray Material	Stainless Steel (304)
Filter Plates	Polypropylene (18 x 18 inches) i.e, (45.72 x 45.72 cm)
No. of Plates	5
Cloth	Cotton/ PP/ Non Woven/ Spun
Power Consumption	0.75 Unit/hr.
Axil Shaft	EN 19 Grade Shaft
Dimensions (L x W x H)	5 x 2 x 4 Feet (1.52 x 0.60 x 1.21 m)
Design and Construction	The Oil filter press is typically constructed with robust materials such as stainless steel and mild steel to withstand high pressures and corrosive environments.
Filtration Process	The machine operates by applying pressure to the mixture of oil and solid particles. This pressure forces the liquid through filter cloths or membranes while retaining the solid particles on the surface.
Efficiency	One of the primary features is their efficiency in separating solids from liquids, which results in high-quality filtered oil with minimal impurities.
Ease of Maintenance	Oil filter presses are designed for easy maintenance, with accessible components that facilitate cleaning and replacement of filter cloths when necessary.
Food Industry	In the production of edible oils such as olive oil, sunflower oil, and canola oil, oil filter presses are utilized to remove impurities like sediment and suspended solids from crude oil. This purification process enhances the quality and safety of the final product, making it suitable for consumption.
Cosmetics	The cosmetic industry employs oil filter presses to refine oils used in skincare products. By filtering out impurities, these machines ensure that the oils are safe and effective for use in creams, lotions, and other beauty products.
Waste Oil Recycling	The filter press is pivotal in the recycling of waste oils, separating valuable oil from sludge and other unwanted materials. This process not only conserves resources but also mitigates environmental impacts associated with oil waste.
Clean the Machine	Before using the filter press, ensure that all components are clean. Any residue from previous uses can contaminate the oil.
Inspect the Filter Plates	Check for any damages or wear. Replace any damaged plates to ensure optimal performance.
Position the Machine	Place the filter press on a stable surface away from any water source or direct sunlight.
Connect the Pump	Attach the pump to the inlet of the filter press. Ensure that all connections are secure to avoid leaks.
Fill the Oil Tank	Pour the unfiltered oil into the oil tank connected to the pump.
Check for Air Leaks	Ensure there are no air leaks in the system that might affect the pressure during operation.
Start the Pump	Turn on the pump to begin circulating the oil into the filter press.
Apply Pressure	Activate the hydraulic system to apply pressure to the filter plates. This pressure forces the oil through the plates, where it will be filtered.
Monitor the Process	Keep an eye on the flow rate and pressure readings. Adjust the hydraulic pressure as necessary to maintain efficient filtration without overloading the plates.
Check the Outlet	Once the oil has been filtered, it will exit through the outlet port. Collect the filtered oil in a clean container.
Inspect Filter Residue	After completing the filtration process, check the residue on the filter plates. This will give you an idea of the impurities removed.
Lubrication	Weekly lubricate moving parts according to the manufacturerâ€™s specifications. Use the correct type of lubricant to avoid contamination.
Check Electrical Components	Inspect electrical connections, controls, and indicators for any signs of wear or malfunction.
Professional Inspection	Schedule a comprehensive inspection by a qualified technician to assess the condition of the machine. This includes checking all mechanical and electrical components.

⚖️

Deciding between a few options?

Add this product to compare it side-by-side with similar items.

About Automatic Oil Filter Press (Standard), 100-120 Litre Per Hour

Automatic Oil Filter Press (Standard), 100-120 Litre Per Hour is listed under Oil Press & Extraction Machine in Food Processing Machine on ToolHaat. Key specifications include material Mild Steel, weight (approx.) 200 kg, motor & pump 1 HP, motor rpm 960 RPM, phase 3 Phase/ 1 Phase. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.

Automatic Oil Filter Press (Standard), 100-120 Litre Per Hour specifications

Material	Mild Steel
Weight (Approx.)	200 kg
Motor & Pump	1 HP
Motor RPM	960 RPM
Phase	3 Phase/ 1 Phase
Capacity	50-70 Liters/hr
Oil Tray Material	Stainless Steel (304)
Filter Plates	Polypropylene (18 x 18 inches) i.e, (45.72 x 45.72 cm)
No. of Plates	5
Cloth	Cotton/ PP/ Non Woven/ Spun
Power Consumption	0.75 Unit/hr.
Axil Shaft	EN 19 Grade Shaft

FAQs related to Automatic Oil Filter Press (Standard), 100-120 Litre Per Hour

Can I compare different brands and price points for Automatic Oil Filter Press (Standard), 100-120 Litre Per Hour?

Yes — ToolHaat lists Automatic Oil Filter Press (Standard), 100-120 Litre Per Hour from multiple verified vendors at different price points and capacities, so you can compare before committing to a purchase for your kitchen or processing line.

Can I get a bulk quote for Automatic Oil Filter Press (Standard), 100-120 Litre Per Hour for a multi-outlet food business?

Yes — for multi-outlet or franchise-scale Automatic Oil Filter Press (Standard), 100-120 Litre Per Hour purchases, use the RFQ feature to get a dedicated quote and delivery plan covering multiple locations.

What if Automatic Oil Filter Press (Standard), 100-120 Litre Per Hour arrives with a defect or missing part?

Contact ToolHaat support with your order ID if Automatic Oil Filter Press (Standard), 100-120 Litre Per Hour arrives defective or incomplete. Replacement or refund is handled per our returns policy, coordinated with the listing vendor.

Does Automatic Oil Filter Press (Standard), 100-120 Litre Per Hour come with a warranty or servicing support?

Warranty terms for Automatic Oil Filter Press (Standard), 100-120 Litre Per Hour vary by brand and are listed on the product page. ToolHaat support can help connect you with the vendor for servicing or warranty claims after purchase.

Is a GST invoice provided for Automatic Oil Filter Press (Standard), 100-120 Litre Per Hour purchases?

Yes, every Automatic Oil Filter Press (Standard), 100-120 Litre Per Hour order generates a GST invoice automatically, useful for standard food-business accounting and input tax credit claims.
