Generic · SKU: thfpm726

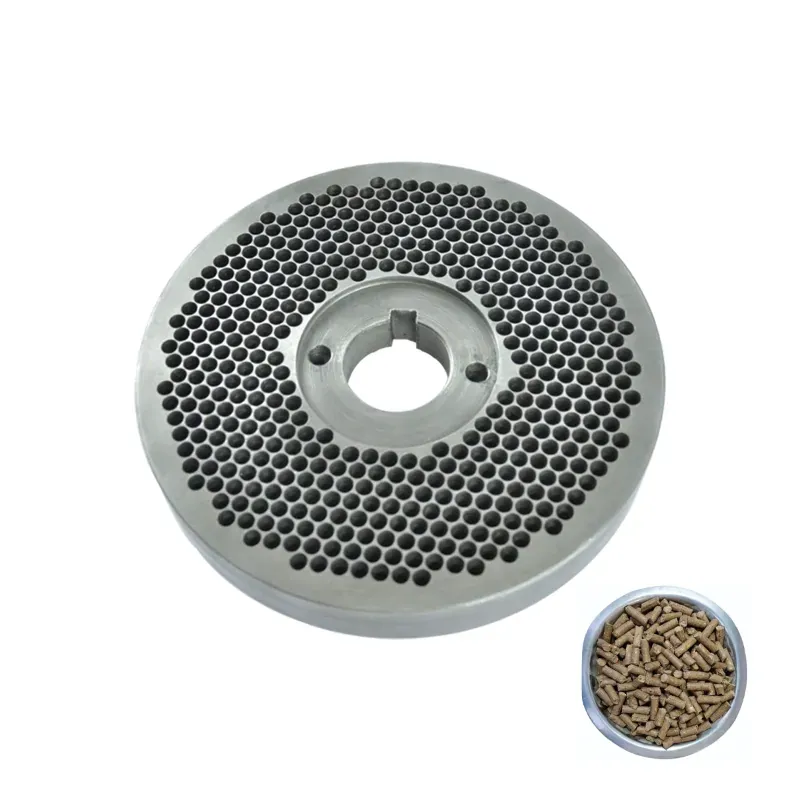

6 mm Flat Die For 4 HP Pellet Machine

Name: 6 mm Flat Die For 4 HP Pellet Machine
Brand: Generic
SKU: thfpm726
Availability: InStock

In Stock

₹3,959₹5,999-34% OFF

Bulk Pricing Tiers

🚚

Free Delivery

Orders above ₹2,000

📋

GST Invoice

Instant download

🔄

Easy Returns

7-day policy

⭐

Quality Checked

Verified listing

Brand	Generic
Weight (Approx.)	1 kg
Die Size	6 mm
Body Material	EN19 (High Quality Engineering Alloy Steel)
Suitable For	4 HP Animal Feed Pellet/Fodder Making Machine, 50 to 80 Kg/hr, 4 mm Pellet Size
Low Breakage Discharging Way	The flat die pellet machine allows for uniform feeding of raw materials, which directly enter the crushing chamber based on gravity. This method ensures that the pellets are produced through mutual extrusion of the flat dies and rollers, leading to a more efficient and consistent process compared to ring die machines.
Variable Pressure	Unlike ring die pellet machines, flat die pellet machines offer variable pressure capabilities. By increasing the inner bearing space and choosing larger bearings, operators can raise the roller's pressure and lengthen its service life.
Low Damage Discharge Method	The flat die pellet machine operates at a lower speed rotation, resulting in minimal damage to the materials during the pelletizing process.
Greater Mobility	Flat die pellet machines are compact in size and lightweight, making them easy to move around for granulation purposes. Their portability makes them suitable for use in home settings, small farms, and light industrial applications.

⚖️

Deciding between a few options?

Add this product to compare it side-by-side with similar items.

About 6 mm Flat Die For 4 HP Pellet Machine

6 mm Flat Die For 4 HP Pellet Machine is listed under Other Dairy Equipment in Food Processing Machine on ToolHaat. Key specifications include weight (approx.) 1 kg, die size 6 mm, body material EN19 (High Quality Engineering Alloy Steel), suitable for 4 HP Animal Feed Pellet/Fodder Making Machine, 50 to 80 Kg/hr, 4 mm Pellet Size, low breakage discharging way The flat die pellet machine allows for uniform feeding of raw materials, which directly enter the crushing chamber based on gravity. This method ensures that the pellets are produced through mutual extrusion of the flat dies and rollers, leading to a more efficient and consistent process compared to ring die machines.. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.

6 mm Flat Die For 4 HP Pellet Machine specifications

Weight (Approx.)	1 kg
Die Size	6 mm
Body Material	EN19 (High Quality Engineering Alloy Steel)
Suitable For	4 HP Animal Feed Pellet/Fodder Making Machine, 50 to 80 Kg/hr, 4 mm Pellet Size
Low Breakage Discharging Way	The flat die pellet machine allows for uniform feeding of raw materials, which directly enter the crushing chamber based on gravity. This method ensures that the pellets are produced through mutual extrusion of the flat dies and rollers, leading to a more efficient and consistent process compared to ring die machines.
Variable Pressure	Unlike ring die pellet machines, flat die pellet machines offer variable pressure capabilities. By increasing the inner bearing space and choosing larger bearings, operators can raise the roller's pressure and lengthen its service life.
Low Damage Discharge Method	The flat die pellet machine operates at a lower speed rotation, resulting in minimal damage to the materials during the pelletizing process.
Greater Mobility	Flat die pellet machines are compact in size and lightweight, making them easy to move around for granulation purposes. Their portability makes them suitable for use in home settings, small farms, and light industrial applications.
