Generic · SKU: thfpm354

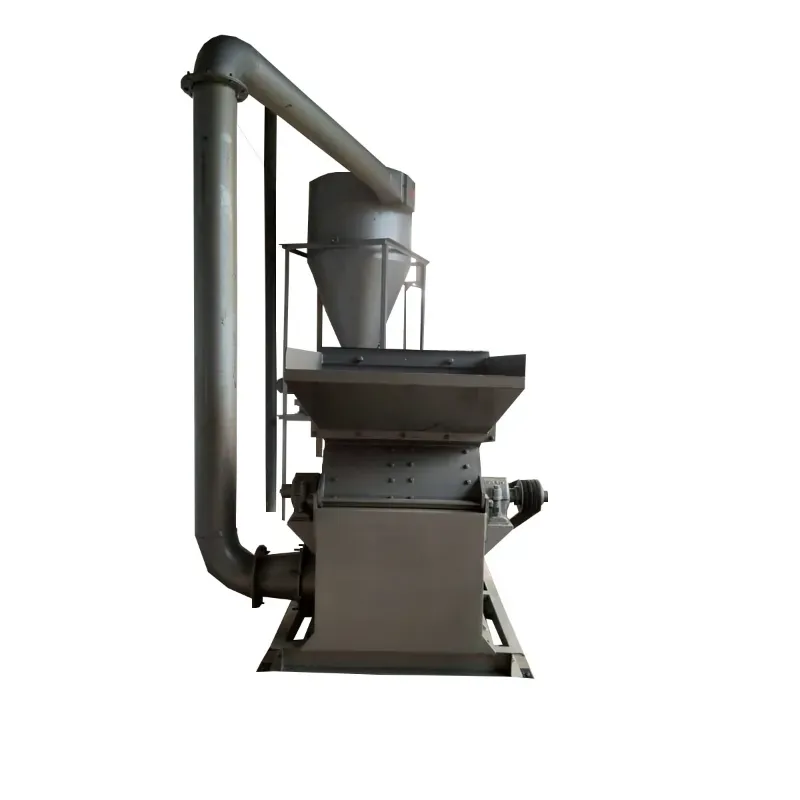

20 HP Rice Husk Grinding Machine

Name: 20 HP Rice Husk Grinding Machine
Brand: Generic
SKU: thfpm354
Availability: InStock

In Stock

₹2,11,365₹2,70,000-22% OFF

Bulk Pricing Tiers

🚚

Free Delivery

Orders above ₹2,000

📋

GST Invoice

Instant download

🔄

Easy Returns

7-day policy

⭐

Quality Checked

Verified listing

Brand	Generic
Weight (Approx.)	450 kg
Material	Mild Steel
Briquettes and Pellets	The ground rice husk is an excellent raw material for producing biomass briquettes or pellets. These densified fuels are a clean, renewable alternative to fossil fuels for boilers, furnaces, and even domestic cooking. This machine's output capacity is suitable for local production of these fuels
Direct Combustion	While less efficient in raw form, grinding allows for more uniform and complete combustion in specialized biomass burners, making it a viable fuel source for small industrial processes or even for drying paddy.
Roughage/Filler	Ground rice husk, though low in nutritional value, can be used as a fiber-rich roughage or filler in animal feed formulations for livestock (e.g., cattle, poultry). It aids in digestion and adds bulk, especially when mixed with more nutritious ingredients.
Compost Enhancement	Ground rice husks can be incorporated into composting piles as a carbon source, improving the aeration and structure of the compost.
Growing Medium	Due to their lightweight and good drainage properties, ground rice husks can be mixed into potting soils or used as a component in soilless growing mediums for nurseries and horticulture.
Construction Materials	Rice Husk Ash (RHA): When ground rice husks are subjected to controlled burning, the resulting ash (RHA) is rich in amorphous silica. This RHA is a highly reactive pozzolanic material.
Feeding	Raw rice husks, typically collected from rice mills, are fed into the machine's intake hopper. For this size of machine, feeding is often manual or via a simple screw conveyor.
First Chamber Processing	The husks first enter the 6" x 10" first chamber. Inside, high-speed rotating hammers or beaters impact and shatter the husks, performing an initial, coarser breakdown of the material.
Second Chamber Pulverization	The partially ground material then moves into the larger 8" x 16" second chamber. Here, the pulverization process is intensified, further reducing the particle size to the desired fineness.
Sizing and Discharge	A strategically placed screen at the outlet of the second chamber ensures that only particles meeting the required fineness pass through. Any oversized particles are retained within the chamber for continuous grinding until they reach the desired size. The finely ground rice husk powder is then discharged from the machine, typically collected into bags, bulk containers, or conveyed to the next stage of processing.
Significant Volume Reduction	Raw rice husks are voluminous. Grinding them into powder drastically reduces their bulk, making storage, handling, and transportation much more economical and convenient.
Increased Surface Area	Pulverizing greatly increases the exposed surface area of the husks. This is crucial for their reactivity in subsequent applications like combustion, chemical reactions, or absorption, making processes more efficient.
Improved Uniformity & Flowability	Ground husks are far more uniform in particle size and flow much more smoothly than raw husks, which is essential for consistent feeding into other machinery (e.g., pellet presses, furnaces) or for mixing with other ingredients.
For Energy Generation	The powder is used as a consistent feedstock for small-scale biomass boilers or gasifiers, or it's densified into briquettes or pellets for renewable fuel.
In Agriculture	It serves as a fiber-rich additive in animal feed or as a key ingredient for producing biochar to improve soil health and fertility. It's also used as a component in potting mixes and composting.
For Construction Materials	The ground husks are suitable for controlled burning to produce Rice Husk Ash (RHA), which can act as a pozzolanic additive in cement and concrete for smaller construction projects.
As Industrial Fillers/Absorbents	The finely ground material can be used as a base for activated carbon production or as an absorbent for spills, or even as a lightweight filler in various products.

⚖️

Deciding between a few options?

Add this product to compare it side-by-side with similar items.

About 20 HP Rice Husk Grinding Machine

20 HP Rice Husk Grinding Machine is listed under Grinding Machine in Food Processing Machine on ToolHaat. Key specifications include weight (approx.) 450 kg, material Mild Steel, briquettes and pellets The ground rice husk is an excellent raw material for producing biomass briquettes or pellets. These densified fuels are a clean, renewable alternative to fossil fuels for boilers, furnaces, and even domestic cooking. This machine's output capacity is suitable for local production of these fuels, direct combustion While less efficient in raw form, grinding allows for more uniform and complete combustion in specialized biomass burners, making it a viable fuel source for small industrial processes or even for drying paddy., roughage/filler Ground rice husk, though low in nutritional value, can be used as a fiber-rich roughage or filler in animal feed formulations for livestock (e.g., cattle, poultry). It aids in digestion and adds bulk, especially when mixed with more nutritious ingredients.. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.

20 HP Rice Husk Grinding Machine specifications

Weight (Approx.)	450 kg
Material	Mild Steel
Briquettes and Pellets	The ground rice husk is an excellent raw material for producing biomass briquettes or pellets. These densified fuels are a clean, renewable alternative to fossil fuels for boilers, furnaces, and even domestic cooking. This machine's output capacity is suitable for local production of these fuels
Direct Combustion	While less efficient in raw form, grinding allows for more uniform and complete combustion in specialized biomass burners, making it a viable fuel source for small industrial processes or even for drying paddy.
Roughage/Filler	Ground rice husk, though low in nutritional value, can be used as a fiber-rich roughage or filler in animal feed formulations for livestock (e.g., cattle, poultry). It aids in digestion and adds bulk, especially when mixed with more nutritious ingredients.
Compost Enhancement	Ground rice husks can be incorporated into composting piles as a carbon source, improving the aeration and structure of the compost.
Growing Medium	Due to their lightweight and good drainage properties, ground rice husks can be mixed into potting soils or used as a component in soilless growing mediums for nurseries and horticulture.
Construction Materials	Rice Husk Ash (RHA): When ground rice husks are subjected to controlled burning, the resulting ash (RHA) is rich in amorphous silica. This RHA is a highly reactive pozzolanic material.
Feeding	Raw rice husks, typically collected from rice mills, are fed into the machine's intake hopper. For this size of machine, feeding is often manual or via a simple screw conveyor.
First Chamber Processing	The husks first enter the 6" x 10" first chamber. Inside, high-speed rotating hammers or beaters impact and shatter the husks, performing an initial, coarser breakdown of the material.
Second Chamber Pulverization	The partially ground material then moves into the larger 8" x 16" second chamber. Here, the pulverization process is intensified, further reducing the particle size to the desired fineness.
Sizing and Discharge	A strategically placed screen at the outlet of the second chamber ensures that only particles meeting the required fineness pass through. Any oversized particles are retained within the chamber for continuous grinding until they reach the desired size. The finely ground rice husk powder is then discharged from the machine, typically collected into bags, bulk containers, or conveyed to the next stage of processing.
