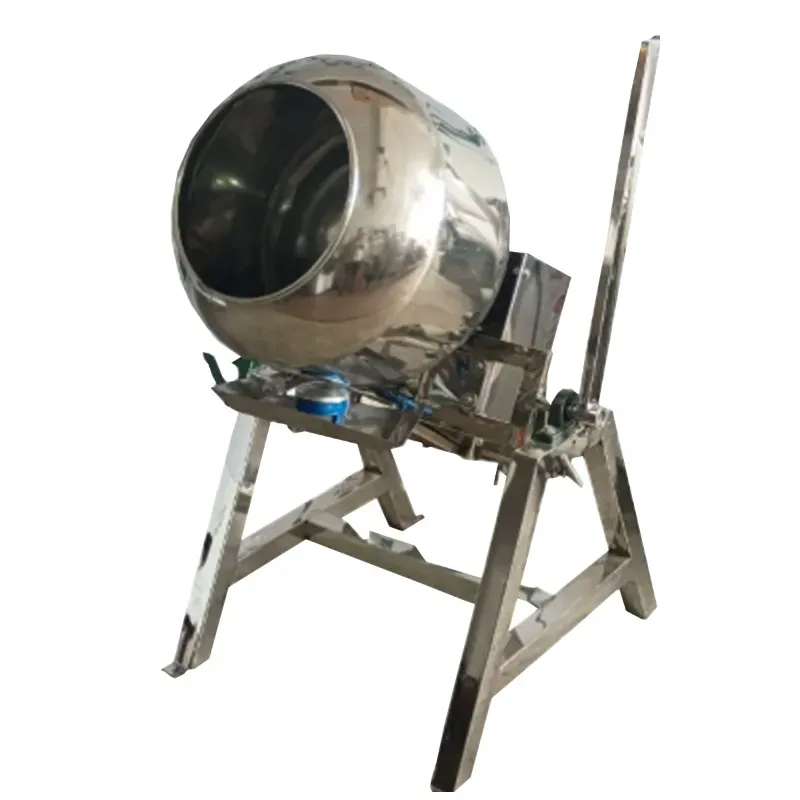

16 x 20 Inch Small Tilting Coating Pan With Gas Operation, 0.75 HP Motor, 10 kg Capacity

Name: 16 x 20 Inch Small Tilting Coating Pan With Gas Operation, 0.75 HP Motor, 10 kg Capacity
Brand: Generic
SKU: thfpm6689
Availability: InStock

In Stock

₹44,054₹48,000-8% OFF

Bulk Pricing Tiers

🚚

Free Delivery

Orders above ₹2,000

📋

GST Invoice

Instant download

🔄

Easy Returns

7-day policy

⭐

Quality Checked

Verified listing

Brand	Generic
Weight (Approx.)	70 kg
Body Material	Stainless Steel
Motor Power	0.75hp
Bowl Size	16X20
Machine Size	30X26X52 Inches
Production Capacity	7to 10kg ( Depends on Material )
Integrated Gas Burner System	Equipped with a dedicated burner, this unit delivers powerful and consistent direct gas heating to the coating bowl. This ensures rapid and precise temperature control, essential for efficient drying, curing, and achieving desired coating properties.
Tilting Stainless Steel Bowl	The 16x20 inch, food-grade stainless steel bowl can be easily tilted at various angles. This feature facilitates convenient loading and unloading of materials and optimizes the tumbling action to achieve highly uniform and smooth coatings.
Robust 0.75 HP Motor	A powerful 0.75 horsepower electric motor provides reliable and consistent rotation of the coating pan, capable of handling different product types and coating viscosities while maintaining a steady and controlled tumbling process.
Compact and Versatile Design	Despite including an integrated burner, the pan maintains a relatively small and efficient footprint. This makes it highly versatile for use in confined spaces such as laboratories, small-scale production facilities, and pilot plants, without compromising on coating quality or throughput.
Pharmaceutical Coating	Indispensable for applying film, sugar, enteric, or special functional coatings to tablets, granules, and pellets. The integrated burner ensures effective drying and setting of these delicate coatings, critical for product stability and release characteristics.
Food & Confectionery Glazing/Coating	Perfect for uniformly coating nuts, candies, chocolates, coffee beans, and other food items with sugar, chocolate, glazes, polishes, or savory seasonings. This enhances appearance, flavor, texture, and shelf life of the coated products.
Nutraceutical Product Enhancement	Used to apply protective or taste-masking coatings to vitamins, dietary supplements, and herbal extracts. This improves their stability, bioavailability, palatability, and overall consumer acceptance.
Research & Development/Pilot Scale Production	Its controlled heating and manageable batch size make it an ideal tool for developing new coating formulations, optimizing coating parameters, and conducting small-scale production trials before scaling up to larger manufacturing processes.
Post-Operation Cleaning	Immediately after each use, thoroughly clean the stainless steel bowl and all product-contact parts. Utilize appropriate food-grade or pharmaceutical-grade cleaning agents and ensure complete drying to prevent cross-contamination and material buildup. Regular cleaning extends equipment lifespan.
Burner and Gas System Inspection	Regularly inspect the gas burner for proper flame operation, carbon buildup, or blockages. Check all gas lines, connections, and safety valves for leaks and ensure adequate ventilation in the operating area. Strict adherence to manufacturer guidelines for burner maintenance and gas safety is crucial.
Motor and Mechanical Component Checks	Periodically inspect the 0.75 HP motor for any unusual noise or vibration. Verify the tension and condition of drive belts, and lubricate bearings and gears as per the manufacturer's specified schedule. This ensures smooth operation, prevents premature wear, and maintains efficiency.
General Component Integrity	Routinely check the tilting mechanism for smooth movement and secure locking. Inspect all electrical connections for wear or damage, and ensure all safety guards and emergency stops are functioning correctly. Address any issues promptly to maintain operational safety, prevent breakdowns, and ensure consistent coating quality.

⚖️

Deciding between a few options?

Add this product to compare it side-by-side with similar items.

About 16 x 20 Inch Small Tilting Coating Pan With Gas Operation, 0.75 HP Motor, 10 kg Capacity

16 x 20 Inch Small Tilting Coating Pan With Gas Operation, 0.75 HP Motor, 10 kg Capacity is listed under Namkeen and Quick Snacks Equipment in Food Processing Machine on ToolHaat. Key specifications include weight (approx.) 70 kg, body material Stainless Steel, motor power 0.75hp, bowl size 16X20, machine size 30X26X52 Inches. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.

16 x 20 Inch Small Tilting Coating Pan With Gas Operation, 0.75 HP Motor, 10 kg Capacity specifications

Weight (Approx.)	70 kg
Body Material	Stainless Steel
Motor Power	0.75hp
Bowl Size	16X20
Machine Size	30X26X52 Inches
Production Capacity	7to 10kg ( Depends on Material )
Integrated Gas Burner System	Equipped with a dedicated burner, this unit delivers powerful and consistent direct gas heating to the coating bowl. This ensures rapid and precise temperature control, essential for efficient drying, curing, and achieving desired coating properties.
Tilting Stainless Steel Bowl	The 16x20 inch, food-grade stainless steel bowl can be easily tilted at various angles. This feature facilitates convenient loading and unloading of materials and optimizes the tumbling action to achieve highly uniform and smooth coatings.
Robust 0.75 HP Motor	A powerful 0.75 horsepower electric motor provides reliable and consistent rotation of the coating pan, capable of handling different product types and coating viscosities while maintaining a steady and controlled tumbling process.
Compact and Versatile Design	Despite including an integrated burner, the pan maintains a relatively small and efficient footprint. This makes it highly versatile for use in confined spaces such as laboratories, small-scale production facilities, and pilot plants, without compromising on coating quality or throughput.
Pharmaceutical Coating	Indispensable for applying film, sugar, enteric, or special functional coatings to tablets, granules, and pellets. The integrated burner ensures effective drying and setting of these delicate coatings, critical for product stability and release characteristics.
Food & Confectionery Glazing/Coating	Perfect for uniformly coating nuts, candies, chocolates, coffee beans, and other food items with sugar, chocolate, glazes, polishes, or savory seasonings. This enhances appearance, flavor, texture, and shelf life of the coated products.

FAQs related to 16 x 20 Inch Small Tilting Coating Pan With Gas Operation, 0.75 HP Motor, 10 kg Capacity

Is 16 x 20 Inch Small Tilting Coating Pan With Gas Operation, 0.75 HP Motor, 10 kg Capacity suitable for commercial kitchens, food trucks, or industrial dairies?

ToolHaat lists 16 x 20 Inch Small Tilting Coating Pan With Gas Operation, 0.75 HP Motor, 10 kg Capacity across a range of scales — from compact commercial-kitchen units to higher-capacity industrial models. Check the specifications on each listing to match your operation size.

What food-safety or hygiene standards does 16 x 20 Inch Small Tilting Coating Pan With Gas Operation, 0.75 HP Motor, 10 kg Capacity meet?

Check the specifications on each 16 x 20 Inch Small Tilting Coating Pan With Gas Operation, 0.75 HP Motor, 10 kg Capacity listing for material grade and food-safety compliance details — vendors specify this information where applicable to the equipment type.

Can I compare different brands and price points for 16 x 20 Inch Small Tilting Coating Pan With Gas Operation, 0.75 HP Motor, 10 kg Capacity?

Yes — ToolHaat lists 16 x 20 Inch Small Tilting Coating Pan With Gas Operation, 0.75 HP Motor, 10 kg Capacity from multiple verified vendors at different price points and capacities, so you can compare before committing to a purchase for your kitchen or processing line.

What throughput or capacity of 16 x 20 Inch Small Tilting Coating Pan With Gas Operation, 0.75 HP Motor, 10 kg Capacity is right for my kitchen or dairy?

The right 16 x 20 Inch Small Tilting Coating Pan With Gas Operation, 0.75 HP Motor, 10 kg Capacity depends on your required processing volume — each listing specifies capacity and power requirements. For help matching equipment to your operation’s scale, contact ToolHaat support or submit an RFQ.

Can I get a bulk quote for 16 x 20 Inch Small Tilting Coating Pan With Gas Operation, 0.75 HP Motor, 10 kg Capacity for a multi-outlet food business?

Yes — for multi-outlet or franchise-scale 16 x 20 Inch Small Tilting Coating Pan With Gas Operation, 0.75 HP Motor, 10 kg Capacity purchases, use the RFQ feature to get a dedicated quote and delivery plan covering multiple locations.
