Mahalaxmi · SKU: thfpt615

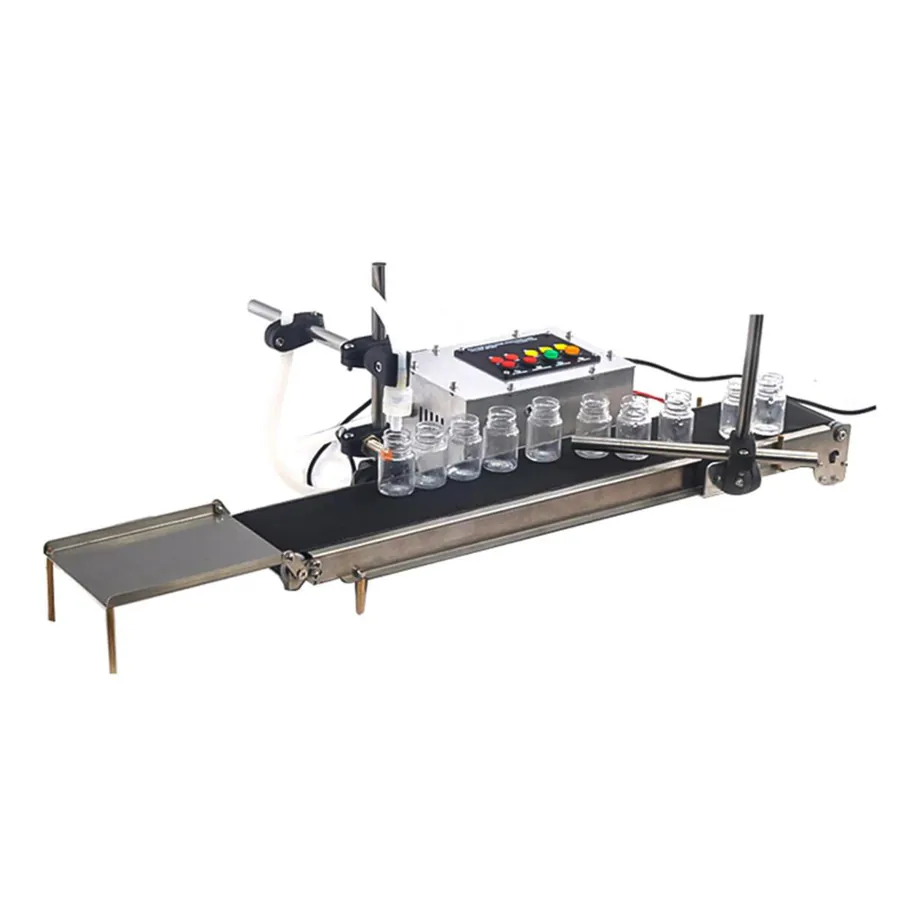

Mahalaxmi Automatic 1 to 3000 ml Liquid Filling Machine with Conveyor Belt for Medical, Pharmaceutical, Commercial uses

Name: Mahalaxmi Automatic 1 to 3000 ml Liquid Filling Machine with Conveyor Belt for Medical, Pharmaceutical, Commercial uses
Brand: Mahalaxmi
SKU: thfpt615
Availability: InStock

In Stock

₹40,671₹49,496-18% OFF

Bulk Pricing Tiers

🚚

Free Delivery

Orders above ₹2,000

📋

GST Invoice

Instant download

🔄

Easy Returns

7-day policy

⭐

Quality Checked

Verified listing

Brand	Mahalaxmi
Weight (Approx.)	5.8 kg
Voltage	110-220 V, 50-60 Hz
Power	60 Watt
Filling Flow Rate	3.0 LPM (3000 ml)
Mini Filling Volume	1 ml
Filling Accuracy	Â±1%
Conveyor Size	600 mm (L) * 81 mm (W)
Filling Nozzle Diameter	Approximately 7 mm
Filling Speed	Adjustable
Anti-Dripping Function	Available
Intelligent Sensor Distance	10 mm
Distance of Intelligent Induction	0-5 mm
Maximum Temperature	60Â°C (Note: This likely refers to the maximum temperature of the liquid being filled)
Suitable Bottle Size	Maximum height of 100 mm
Automatic Filling	Automates the liquid dispensing process.
Conveyor Attached	Integrated 600 mm long conveyor for seamless container movement.
Wide Filling Range	Capable of filling volumes from 1 ml up to 3000 ml.
Adjustable Filling Speed	Allows customization based on liquid viscosity and desired output.
High Filling Accuracy	Achieves an accuracy of approximately Â±1%.
Intelligent Sensors	Uses sensors for automatic container detection and filling initiation.
Adjustable Sensor Distance	Offers flexibility in sensor positioning (0-5 mm induction distance, 10 mm intelligent sensor distance).
Compact and Lightweight	Weighing approximately 5.8 kg, it's relatively portable and easy to integrate.
Wide Voltage Compatibility	Operates on 110-220V, 50-60Hz power supply.
Free Fitting Stands	Comes with stands for convenient setup and positioning.
Suitable for Free Flow Liquids	Specifically designed for liquids with low viscosity.
Food and Beverage	Filling sauces, juices, water, oils (low viscosity).
Cosmetics	Filling lotions, toners, liquid soaps.
Pharmaceuticals	Filling liquid medications, solutions.
Chemicals	Filling certain low-viscosity chemicals (ensure material compatibility).
Agriculture	Filling liquid fertilizers or pesticides.
Setup	Place the machine on a stable surface using the provided free-fitting stands. Ensure the conveyor is correctly positioned.
Connect Power	Plug the machine into a compatible power outlet (110-220V).
Prepare Liquid	Ensure the liquid to be filled is free-flowing and within the machine's temperature limitations (maximum 60Â°C).
Adjust Filling Volume	Set the desired filling volume using the machine's control panel (specific method not provided, refer to the user manual).
Adjust Filling Speed	Set the appropriate filling speed based on the liquid's viscosity and desired throughput.
Position Containers	Place empty containers onto the conveyor belt.
Sensor Adjustment (if needed)	Adjust the intelligent sensor distance to ensure proper detection of the containers.
Start Operation	Turn on the machine. The conveyor will move the containers to the filling nozzle, and the sensor will trigger the filling process.
Monitor	Observe the filling process to ensure accuracy and consistency. Make adjustments as needed.
Collection	Filled containers will move along the conveyor for collection.
Regular Cleaning	After each use, especially when handling different liquids, thoroughly clean the filling nozzle, liquid pathways, and conveyor belt to prevent contamination and clogging. Use appropriate cleaning solutions compatible with the materials being filled.
Check Connections	Periodically inspect all electrical and mechanical connections for tightness and wear.
Nozzle Inspection	Regularly check the filling nozzle for any blockages or damage. Clean or replace as necessary.
Sensor Cleaning	Gently clean the intelligent sensors to ensure accurate detection.
Lubrication (if applicable)	If the conveyor or other moving parts require lubrication, follow the manufacturer's recommendations.
Storage	When not in use, store the machine in a clean and dry environment.
Refer to Manual	Always consult the user manual provided by the manufacturer for specific maintenance instructions and schedules.
Free Flow Liquids Only	This machine is designed for free-flowing liquids. Do not attempt to fill viscous or particulate-containing liquids as this may damage the pump and affect performance.
Temperature Limits	Do not fill liquids exceeding the maximum temperature of 60Â°C.
Electrical Safety	Ensure the machine is properly grounded and connected to a compatible power source. Avoid operating in wet or damp environments.
Material Compatibility	Ensure that the liquid being filled is compatible with the materials of the machine's components (e.g., nozzle, tubing). Incompatibility can lead to corrosion or damage.
Operator Safety	Keep hands and other body parts away from moving parts during operation. Use appropriate personal protective equipment (PPE) if necessary, depending on the liquid being filled.
Overfilling	Monitor the filling process to prevent overfilling, which can lead to spills and waste.
Emergency Stop	Familiarize yourself with the location and operation of any emergency stop mechanisms.
Maintenance Safety	Always disconnect the power supply before performing any maintenance or cleaning tasks.
User Manual	Read and understand the user manual thoroughly before operating or maintaining the machine.
Intended Use	Use the machine only for its intended purpose of filling liquids. Avoid using it for any other applications.

⚖️

Deciding between a few options?

Add this product to compare it side-by-side with similar items.

About Mahalaxmi Automatic 1 to 3000 ml Liquid Filling Machine with Conveyor Belt for Medical, Pharmaceutical, Commercial uses

Mahalaxmi Automatic 1 to 3000 ml Liquid Filling Machine with Conveyor Belt for Medical, Pharmaceutical, Commercial uses is listed under Paste and Liquid Fillers in Food Packaging Tools on ToolHaat, supplied by Mahalaxmi. Key specifications include weight (approx.) 5.8 kg, voltage 110-220 V, 50-60 Hz, power 60 Watt, filling flow rate 3.0 LPM (3000 ml), mini filling volume 1 ml. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.

Mahalaxmi Automatic 1 to 3000 ml Liquid Filling Machine with Conveyor Belt for Medical, Pharmaceutical, Commercial uses specifications

Weight (Approx.)	5.8 kg
Voltage	110-220 V, 50-60 Hz
Power	60 Watt
Filling Flow Rate	3.0 LPM (3000 ml)
Mini Filling Volume	1 ml
Filling Accuracy	Â±1%
Conveyor Size	600 mm (L) * 81 mm (W)
Filling Nozzle Diameter	Approximately 7 mm
Filling Speed	Adjustable
Anti-Dripping Function	Available
Intelligent Sensor Distance	10 mm
Distance of Intelligent Induction	0-5 mm
