UTL · SKU: thagri10705

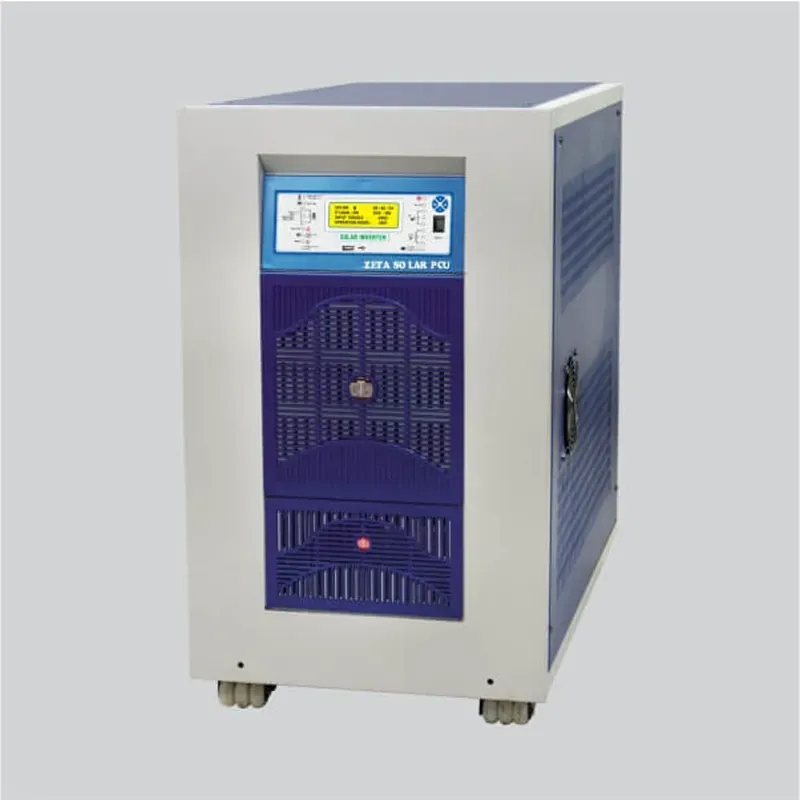

UTL Zeta Pro Solar Hybrid PCU 40240, Three Phase 40 kVA 240 V Solar Inverter, Built-in Wi-Fi SUPPORT
In Stock
₹5,56,380₹7,50,000-26% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | UTL |
| Weight (Approx.) | 350 kg |
| System Rating (KVA) | 40 |
| Operating DC Voltage (VDC) | 240 |
| Input open circuit voltage range(Min-Max) (Voc) | 400-720 |
| Maximum PV Power Recommended/No. of Charge Controller | 40KW/1 |
| Switching Element/Type of Charger/Solar Charge Controller Rating | IGBT/MPPT/160A |
| Peak Efficiency (DC to DC) | 95% |
| Input Voltage (R.Y.B w.r.t. N) Nominal (VAC) | 220V/Phase |
| Supply Phase & Connection | 3Phase/4Wire |
| Switching Element/Bypass Element/Grid charger Efficiency (AC-DC) | IGBT/SCR/>85% |
| Grid Low Cut Volt. Range RYB wrt N (IT Mode Enable/Disable) (VAC) | NA/120-200 |
| Grid High Cut Volt. Range R-Y-B wrt N (IT Mode Enable/Disable) (VAC) | NA/245-280 |
| Grid Charger | Enable/Disable |
| Grid Export Mode | Enable/Disable |
| IT Load | Enable/Disable |
| Battery Low Buzzer | Batt Low Cut+0.2 |
| Battery Low Cut | 10-11.7 |
| Battery Charging Voltage Range with SPV (VDC) | SPV Present- SPV Chg. Ref. 1.0V for 158ec, SPV Chg. Ref. +1.5V for 28ec |
| Battery Charging Current Range with SPV (A) | SPV Absent SPV Cng. Ref for 155ec, SPV Cng. Ref+0.2V for 25ec |
| Battery Charging Voltage Range with Grid (VDC) | 12.8-16 |
| Battery Charging Current Range with Grid (A) | 12-60 |
| Operation Mode | Smart/Hybrid/PCU |
| Grid Reconnect Range (PCU Mode | Smart Mode) | 11-12 |
| Capacity | 40kVA rating with a 240V DC operating voltage. |
| Three-Phase System | Supports 3-phase input and output for balanced and stable power distribution across large loads. |
| rMPPT Technology | Equipped with UTL’s patented rMPPT (Rapid Maximum Power Point Tracking) charge controller, providing up to 30% more solar energy harvesting compared to conventional controllers. |
| Built-in Wi-Fi | Integrated monitoring allows users to track power generation, battery status, and system health via a smartphone or PC. |
| Hybrid Intelligence | Multiple working modes (Smart, PCU, and Hybrid) to prioritize solar usage and reduce electricity bills. |
| Rugged Protection | Built-in safeguards against short circuits, overloads, high/low voltage, and thermal overheating. |
| User-Friendly Interface | Large LCD display for real-time data logging and easy configuration of AC/DC parameters. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About UTL Zeta Pro Solar Hybrid PCU 40240, Three Phase 40 kVA 240 V Solar Inverter, Built-in Wi-Fi SUPPORT
UTL Zeta Pro Solar Hybrid PCU 40240, Three Phase 40 kVA 240 V Solar Inverter, Built-in Wi-Fi SUPPORT is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by UTL. Key specifications include weight (approx.) 350 kg, system rating (kva) 40, operating dc voltage (vdc) 240, input open circuit voltage range(min-max) (voc) 400-720, maximum pv power recommended/no. of charge controller 40KW/1. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
UTL Zeta Pro Solar Hybrid PCU 40240, Three Phase 40 kVA 240 V Solar Inverter, Built-in Wi-Fi SUPPORT specifications
| Weight (Approx.) | 350 kg |
|---|---|
| System Rating (KVA) | 40 |
| Operating DC Voltage (VDC) | 240 |
| Input open circuit voltage range(Min-Max) (Voc) | 400-720 |
| Maximum PV Power Recommended/No. of Charge Controller | 40KW/1 |
| Switching Element/Type of Charger/Solar Charge Controller Rating | IGBT/MPPT/160A |
| Peak Efficiency (DC to DC) | 95% |
| Input Voltage (R.Y.B w.r.t. N) Nominal (VAC) | 220V/Phase |
| Supply Phase & Connection | 3Phase/4Wire |
| Switching Element/Bypass Element/Grid charger Efficiency (AC-DC) | IGBT/SCR/>85% |
| Grid Low Cut Volt. Range RYB wrt N (IT Mode Enable/Disable) (VAC) | NA/120-200 |
| Grid High Cut Volt. Range R-Y-B wrt N (IT Mode Enable/Disable) (VAC) | NA/245-280 |
