UTL · SKU: thagri10535

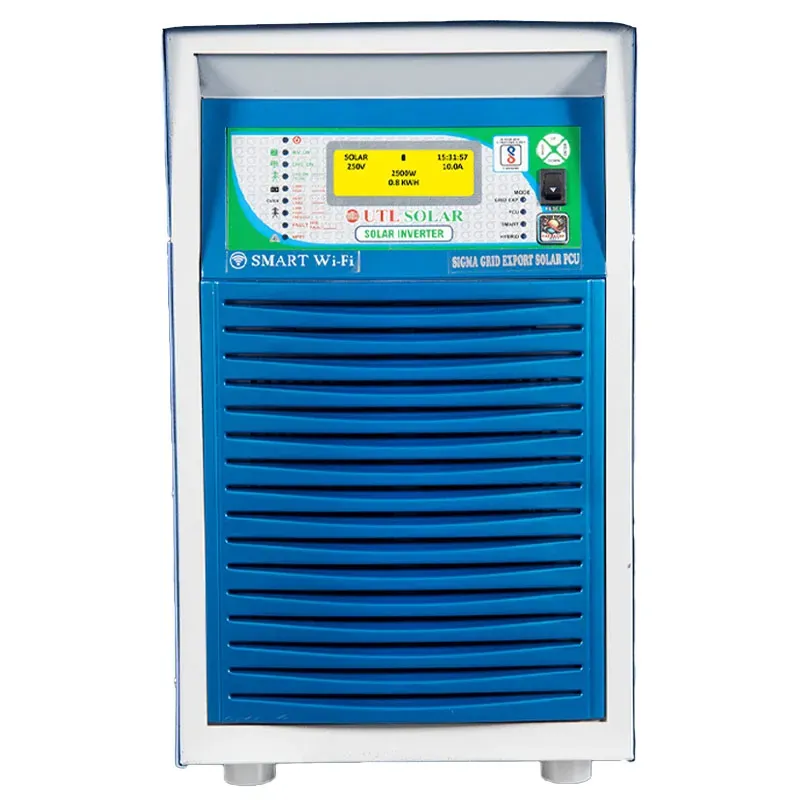

UTL 5 kW UGE5096 Sigma Pro Solar PCU 96 V Hybrid Solar Inverter For Home, Office & Shops
In Stock
₹77,220₹94,200-18% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | UTL |
| Weight (Approx.) | 75 kg |
| System Rating | 5KVA |
| Operating DC Voltage | 96V |
| Input Voltage Range (Min-Max) | 160-400 VDC |
| Maximum PV Power Recom | 5KW |
| Solar Charge Controller Rating | 50A |
| Switching Element | IGBT |
| Controller | DSP |
| Type of Charger | MPPT |
| Efficiency | 95% |
| Battery Low Buzzer(V) | Batt. Low Cut +0.2 |
| Battery Low Cut(V) | 10-11.7 |
| Battery High Cut (V) | SPV Present-SPV CHG. REF +1V for 15Sec, SPV CHG. REF +1.5V for 2Sec |
| Battery Charging Voltage by SPV(V) | 12.8-16 |
| Battery Charging Current by SPV(A) | 12-60 |
| Battery Charging Voltage by Grid(V) | 12.5 - 15.5 |
| Battery Charging Current by Grid(A) | 6-15 |
| Grid Charging | Enable |
| IT Load | Disable |
| Operating Mode | Smart |
| Output Voltage Low(V) | 170-190 |
| Output Voltage High(V) | 250-260 |
| Input Source | Grid |
| Grid Disconnect (Solar Available) | @Solar Charging Voltage Ref Or The Solar Charging Current Ref. For 2 Minutes |
| Grid Reconnect (PCU Mode/ Smart Mode)(V) | 11-12 |
| Control | PWM |
| Nominal Output Voltage(VAC) | 220 |
| Output Supply Phase | 1Phase, 3Wire |
| Output Waveform | Pure Sine Wave |
| Nominal Frequency(Hz) | 50.0 |
| Load Current(A) | 27 |
| Voltage Regulation(%) | 1 |
| Output Voltage Distortion with 100% Linear Load(%) | <3 |
| Operating Temperature(C) | 0-50 |
| Max Relative Humidity@25°C(non condensing)% | 95 |
| Degree of Protection | IP21 |
| Data Loggin | 30 Day Data Storage |
| Inbuilt Solar Charge Controller | Ensures up to 30% more energy generation from solar panels compared to PWM controllers |
| Low Voltage Charging | Can charge the battery from the mains grid even with a low input voltage |
| Dual Priority Modes | Selectable Hybrid and Smart modes for maximizing solar energy usage and saving money |
| Battery Health | Multi-stage (Bulk, Absorption, Float) battery charging with auto-equalization feature to maintain long battery life |
| Load Compatibility | Compatible with IT loads |
| Flexibility | Can operate without solar panels, functioning as a regular inverter initially |
| Protection | Comprehensive electronic protections |
| Display | LED display for operational status and fault indications |
⚖️
