UTL · SKU: thagri10702

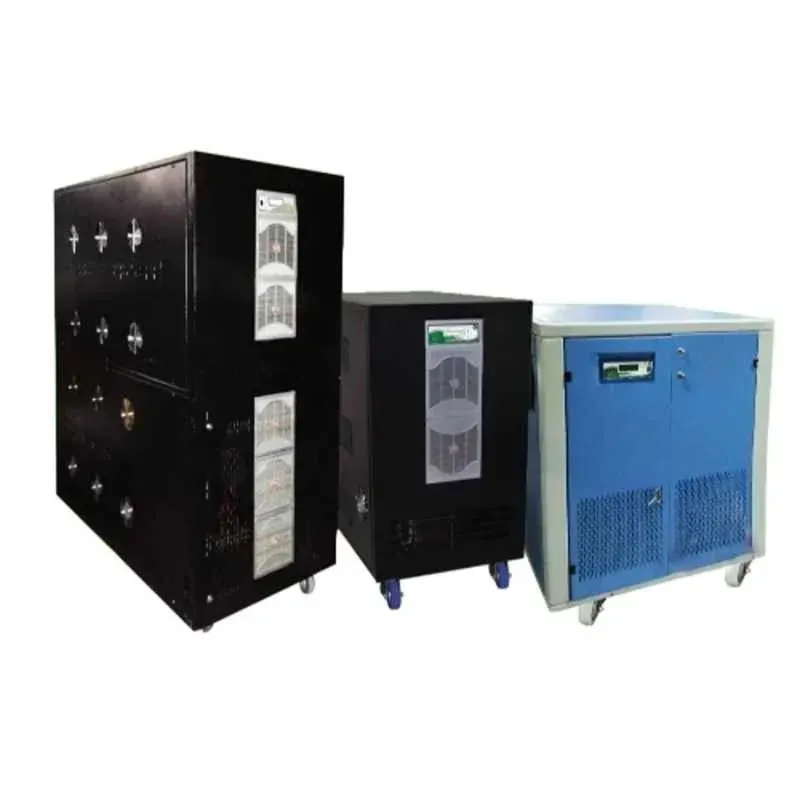

UTL Off Grid Star Online Solar PCU 80360 (3-3)Output, 80 kVA 360 V Solar Inverter For Home, Office & Shop
In Stock
₹9,50,202₹9,75,000-3% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | UTL |
| Weight (Approx.) | 110 kg |
| Voltage Range | 400V± 20% |
| Phase | 3 phase, four wire |
| Frequency | 50Hz ± 10% |
| Power Factor | 0.94 |
| Solar | 80KW |
| VOC (min-max) | 540-810 |
| VMP | 430-730 |
| Configuration 72 Cell | 16 string of 16 panel |
| Switching Device | IGBT |
| Switching Frequency | 16KHZ |
| Type of charger | MPPT |
| Peak Efficiency (DC to DC) | 96% |
| Voltage (Ph-Ph) | 380/400V/415V ± 1% Configurable by LCD Display |
| Load Current Per Phase | 92.57A |
| Efficiency (AC to AC) | >88% @ Full Load |
| Waveform | Pure Sin Wave |
| Voltage Harmonics | <3 % ( Linear Load ) |
| Overload Capacity | 100-110%@10Min, 100-120%@2Min; 120-150%@30s; 150-200%@2s; 200-300%@1s; 300-400%@250ms; >400%@20ms |
| Crest Factor | 3:1 |
| Voltage Regulation | ±1% |
| Frequency Regulation | ±.05 Hz |
| Storage Relative Humidity | 0-95% |
| Degree of Protection | IP 20 |
| Dimension (LxWxH) | 1244 x 863 x1752 mm |
| True Online Double Conversion | Provides a constant, regulated output voltage, acting as a firewall for sensitive electronics. |
| rMPPT Technology | Features a built-in Maximum Power Point Tracking (MPPT) charge controller that is up to 30% more efficient than standard controllers. |
| 3-Phase Input & 3-Phase Output | Designed specifically for 3-phase machinery and balanced load distribution across larger premises. |
| DSP Based Design | Advanced Digital Signal Processing ensures high reliability and a pure sine wave output. |
| Smart Monitoring | Supports Ethernet-based monitoring for real-time tracking of battery status, solar generation, and load performance. |
| Rugged Protection | Comprehensive shielding against short circuits, input under/over-voltage, lightning, and surges via SPD. |
| Configurable Settings | User-friendly LCD for adjusting parameters like battery charging current, voltage, and source priority (Solar/Grid/Battery). |
| Long-Term Reliability | Backed by a 5-year warranty |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About UTL Off Grid Star Online Solar PCU 80360 (3-3)Output, 80 kVA 360 V Solar Inverter For Home, Office & Shop
UTL Off Grid Star Online Solar PCU 80360 (3-3)Output, 80 kVA 360 V Solar Inverter For Home, Office & Shop is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by UTL. Key specifications include weight (approx.) 110 kg, voltage range 400V± 20%, phase 3 phase, four wire, frequency 50Hz ± 10%, power factor 0.94. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
UTL Off Grid Star Online Solar PCU 80360 (3-3)Output, 80 kVA 360 V Solar Inverter For Home, Office & Shop specifications
| Weight (Approx.) | 110 kg |
|---|---|
| Voltage Range | 400V± 20% |
| Phase | 3 phase, four wire |
| Frequency | 50Hz ± 10% |
| Power Factor | 0.94 |
| Solar | 80KW |
| VOC (min-max) | 540-810 |
| VMP | 430-730 |
| Configuration 72 Cell | 16 string of 16 panel |
| Switching Device | IGBT |
| Switching Frequency | 16KHZ |
| Type of charger | MPPT |
