UTL · SKU: thagri10683

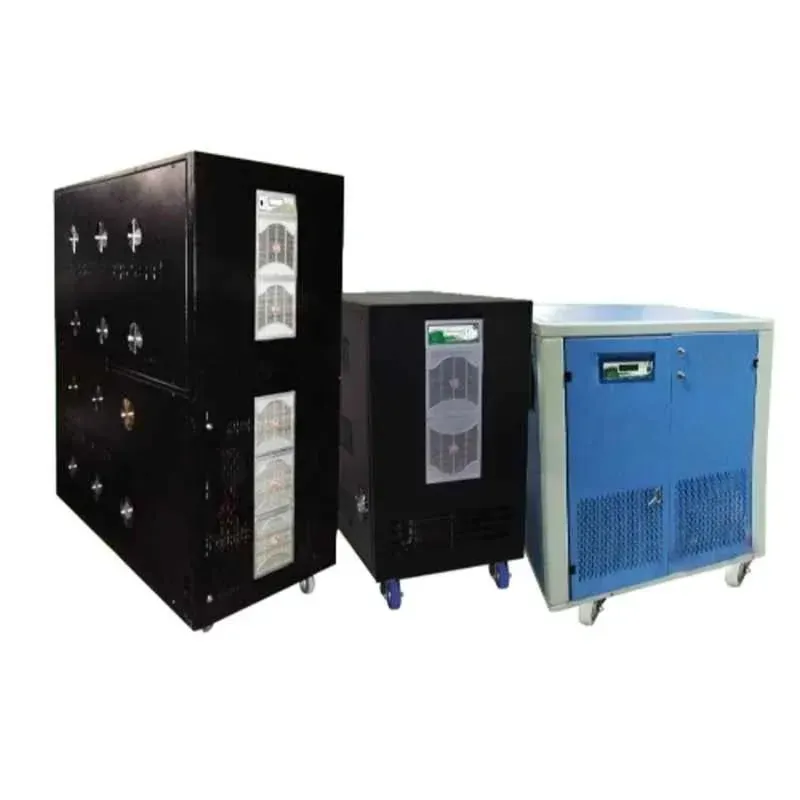

UTL Off Grid Star Online Solar PCU 30360 (3-3)Output, 30 kVA 360 V Solar Inverter For Home, Office & Shop
In Stock
₹3,71,745₹4,00,000-7% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | UTL |
| Weight (Approx.) | 110 kg |
| Voltage Range | 400V± 20% |
| Phase | 3 phase, four wire |
| Frequency | 50Hz ± 10% |
| Power Factor | 0.94 |
| Solar | 30KW |
| VOC (min-max) | 540-810 |
| VMP | 430-730 |
| Configuration 72 Cell | 6 string of 16 panel |
| Switching Device | IGBT |
| Switching Frequency | 16KHZ |
| Type of charger | MPPT |
| Peak Efficiency (DC to DC) | 96% |
| Voltage (Ph-Ph) | 380/400V/415V ± 1% Configurable by LCD Display |
| Load Current Per Phase | 34.8A |
| Efficiency (AC to AC) | >88% @ Full Load |
| Waveform | Pure Sin Wave |
| Voltage Harmonics | <3 % ( Linear Load ) |
| Overload Capacity | 100-110%@10Min, 100-120%@2Min; 120-150%@30s; 150-200%@2s; 200-300%@1s; 300-400%@250ms; >400%@20ms |
| Crest Factor | 3:1 |
| Voltage Regulation | ±1% |
| Frequency Regulation | ±.05 Hz |
| Storage Relative Humidity | 0-95% |
| Degree of Protection | IP 20 |
| Dimension (LxWxH) | 990 x 660 x 889 mm |
| True Online Topology | Provides a constant, stabilized pure sine wave output with zero switching time between solar, battery, and grid. |
| rMPPT Technology | Patented technology ensures maximum solar harvest even in low-light or fluctuating weather conditions. |
| 3-Phase (3-In, 3-Out) | Balanced power distribution across three phases, ideal for commercial machinery and large buildings. |
| High Surge Capability | Can handle up to 300% surge load, allowing it to start heavy motors and industrial compressors easily. |
| Intelligent Logic | Automatically prioritizes Solar Power > Battery > Grid to minimize electricity bills. |
| Advanced Protection | Built-in SPD (Surge Protection Device) for lightning protection, along with short-circuit, over-load, and high-temperature safeguards. |
| Monitoring & Control | Ethernet-based remote monitoring (optional) and a multi-function LCD for real-time data tracking. |
| Galvanic Isolation | Integrated isolation transformer for enhanced safety and equipment protection. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About UTL Off Grid Star Online Solar PCU 30360 (3-3)Output, 30 kVA 360 V Solar Inverter For Home, Office & Shop
UTL Off Grid Star Online Solar PCU 30360 (3-3)Output, 30 kVA 360 V Solar Inverter For Home, Office & Shop is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by UTL. Key specifications include weight (approx.) 110 kg, voltage range 400V± 20%, phase 3 phase, four wire, frequency 50Hz ± 10%, power factor 0.94. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
UTL Off Grid Star Online Solar PCU 30360 (3-3)Output, 30 kVA 360 V Solar Inverter For Home, Office & Shop specifications
| Weight (Approx.) | 110 kg |
|---|---|
| Voltage Range | 400V± 20% |
| Phase | 3 phase, four wire |
| Frequency | 50Hz ± 10% |
| Power Factor | 0.94 |
| Solar | 30KW |
| VOC (min-max) | 540-810 |
| VMP | 430-730 |
| Configuration 72 Cell | 6 string of 16 panel |
| Switching Device | IGBT |
| Switching Frequency | 16KHZ |
| Type of charger | MPPT |
FAQs related to UTL Off Grid Star Online Solar PCU 30360 (3-3)Output, 30 kVA 360 V Solar Inverter For Home, Office & Shop
What is the bulk pricing structure for UTL Off Grid Star Online Solar PCU 30360 (3-3)Output, 30 kVA 360 V Solar Inverter For Home, Office & Shop?
+
UTL Off Grid Star Online Solar PCU 30360 (3-3)Output, 30 kVA 360 V Solar Inverter For Home, Office & Shop on ToolHaat uses tiered bulk pricing — cost per unit drops as order quantity rises, shown on the product page. For dealer-volume or distributor-level quantities, an RFQ gets you a dedicated quote.
Are spare parts or accessories for UTL Off Grid Star Online Solar PCU 30360 (3-3)Output, 30 kVA 360 V Solar Inverter For Home, Office & Shop also available on ToolHaat?
+
Many UTL Off Grid Star Online Solar PCU 30360 (3-3)Output, 30 kVA 360 V Solar Inverter For Home, Office & Shop categories on ToolHaat also list compatible accessories and spare parts separately — check related subcategories or use search to find parts matching your specific model.
Is a GST invoice provided for UTL Off Grid Star Online Solar PCU 30360 (3-3)Output, 30 kVA 360 V Solar Inverter For Home, Office & Shop purchases?
+
Yes, every UTL Off Grid Star Online Solar PCU 30360 (3-3)Output, 30 kVA 360 V Solar Inverter For Home, Office & Shop order comes with an automatically generated GST invoice, useful for input tax credit claims and standard farm-business accounting.
Can UTL Off Grid Star Online Solar PCU 30360 (3-3)Output, 30 kVA 360 V Solar Inverter For Home, Office & Shop orders be timed to arrive before the sowing or harvest season?
+
Yes — for seasonal equipment needs, place your UTL Off Grid Star Online Solar PCU 30360 (3-3)Output, 30 kVA 360 V Solar Inverter For Home, Office & Shop order with enough lead time before peak season, or contact our sales team to confirm stock availability and delivery timing ahead of sowing or harvest windows.
Does UTL Off Grid Star Online Solar PCU 30360 (3-3)Output, 30 kVA 360 V Solar Inverter For Home, Office & Shop come with a warranty or after-sales support?
+
Warranty terms for UTL Off Grid Star Online Solar PCU 30360 (3-3)Output, 30 kVA 360 V Solar Inverter For Home, Office & Shop vary by vendor and brand — check the product listing for specific coverage. ToolHaat support can help connect you with the vendor for warranty claims or service queries after purchase.
