UTL · SKU: thagri10711

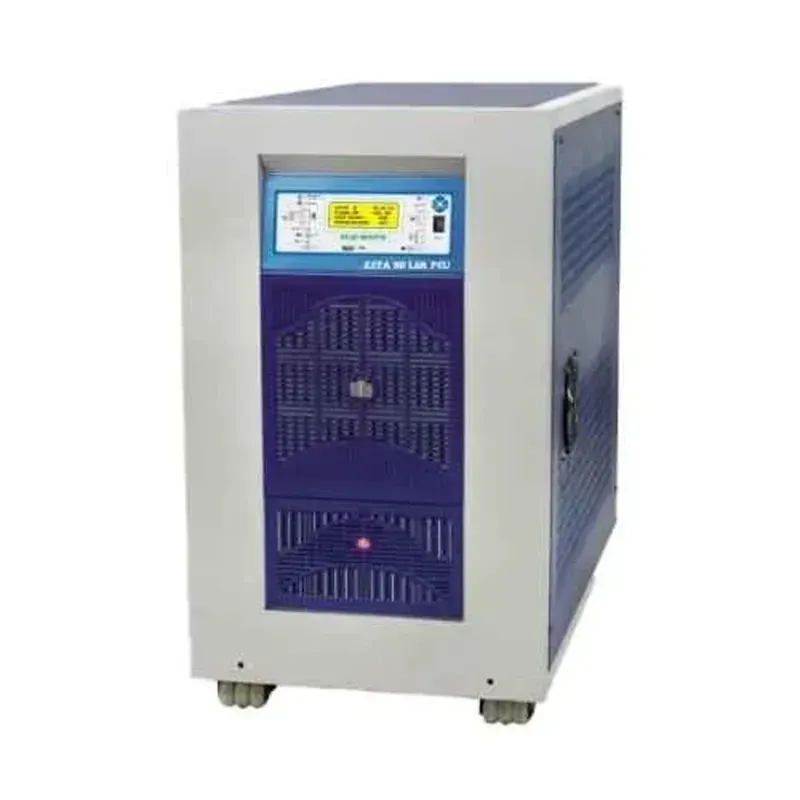

UTL Off Grid Mars Online Solar PCU 15240 (3-3)Output, 15 kVA 240 V Solar Inverter For Home, Office & Shop
In Stock
₹2,19,780₹2,40,000-8% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | UTL |
| Weight (Approx.) | 50 kg |
| Voltage Range | 400V±20% |
| Phase | 3 |
| Frequency | 50Hz±20% |
| Power Factor | >0.92 |
| Charger Topology | Buck |
| Solar | 15kW |
| Voc (min-max) | 400V – 740V |
| Vmp | 288V - 660V |
| Configurable (72 Cell) | 12 Panel in series (4 strings) |
| Switching Devices | IGBT |
| Switching Freq. | 16KHz |
| Type of Charger | PWM with MPPT |
| Peak Efficiency (DC – DC) | 96% |
| Battery Low Buzzer | Battery Low Cut + 0.2 |
| Battery Low Cut | 10-11.7V |
| Battery High Cut (Charger) | Battery Volt By SPV + 0.7 |
| Battery Charging Voltage by Grid | 13-14.5V |
| Battery Charging Current by Grid | 3-12A |
| Battery Charging Voltage by SPV | 13.5-15V |
| Battery Charging Current by SPV | 5-24A |
| Grid Charger Reconnect | Enable /Disable |
| Output Voltage Low Cut | 170-190V |
| Output Voltage High Cut | 250-260V |
| Voltage | 380V/400V/415V ±1% (3phase 4 wire) |
| Load Current | 17.4A |
| Efficiency (AC – AC) | >90%@Full Load |
| Waveform | Pure Sine Wave |
| Voltage Harmonics | <3% Linear Load |
| Overload Capacity | 100 to 110%-10 Min.; 110 to 120%-2 Min.; 120 to 150%-30 Sec; 150 to 200%-2 Sec; 200 to 300%-1sec.; 300 to 400%-250msec., >400%-20-30msec. |
| Crest Factor | 3:1 |
| Frequency Regulation | ±0.05Hz |
| Alarm | Battery Low, battery High, Overload |
| Extended Battery Charging | Yes |
| Caster Wheels | Yes |
| Operating Environment | 0-50° C |
| Operating Relative Humidity | (5%-95%) Non-condensed |
| Storage Environment | 0-75°C |
| Storage Relative Humidity | 0-95% |
| Degree of Protection | IP20 |
| Remote Monitoring | Ethernet (Optional) |
| Dimension (LXWXH) | 762 x 406 x 685 mm |
| Online Double Conversion | Provides the highest level of power protection by converting AC to DC and back to AC, ensuring a clean and stable voltage output regardless of grid fluctuations. |
| High-Efficiency MPPT | Built-in Maximum Power Point Tracking (MPPT) solar charge controller extracts up to 30% more power from solar panels compared to PWM chargers. |
| DSP Based Design | Advanced Digital Signal Processing (DSP) ensures high reliability, precision, and faster processing for complex power management. |
| Zero Changeover Time | Ideal for sensitive equipment like servers, medical devices, and high-end computers where even a micro-second power gap is unacceptable. |
| Configurable Priority | Flexible working modes allow users to set priority between Solar, Battery, and Grid based on their specific needs. |
| High Surge Capability | Designed to handle high startup currents (up to 300%) for heavy loads like air conditioners, motors, and industrial machinery. |
| Comprehensive Protection | Includes safeguards against short circuits, over/under voltage, overload, battery high/low, and overheating. |
| LCD Display | A user-friendly multi-function LCD provides real-time data on solar generation, battery status, load percentage, and fault alerts. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About UTL Off Grid Mars Online Solar PCU 15240 (3-3)Output, 15 kVA 240 V Solar Inverter For Home, Office & Shop
UTL Off Grid Mars Online Solar PCU 15240 (3-3)Output, 15 kVA 240 V Solar Inverter For Home, Office & Shop is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by UTL. Key specifications include weight (approx.) 50 kg, voltage range 400V±20%, phase 3, frequency 50Hz±20%, power factor >0.92. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
UTL Off Grid Mars Online Solar PCU 15240 (3-3)Output, 15 kVA 240 V Solar Inverter For Home, Office & Shop specifications
| Weight (Approx.) | 50 kg |
|---|---|
| Voltage Range | 400V±20% |
| Phase | 3 |
| Frequency | 50Hz±20% |
| Power Factor | >0.92 |
| Charger Topology | Buck |
| Solar | 15kW |
| Voc (min-max) | 400V – 740V |
| Vmp | 288V - 660V |
| Configurable (72 Cell) | 12 Panel in series (4 strings) |
| Switching Devices | IGBT |
| Switching Freq. | 16KHz |
FAQs related to UTL Off Grid Mars Online Solar PCU 15240 (3-3)Output, 15 kVA 240 V Solar Inverter For Home, Office & Shop
What if UTL Off Grid Mars Online Solar PCU 15240 (3-3)Output, 15 kVA 240 V Solar Inverter For Home, Office & Shop arrives damaged or doesn’t match the listed specifications?
+
Contact ToolHaat support with your order ID and photos if UTL Off Grid Mars Online Solar PCU 15240 (3-3)Output, 15 kVA 240 V Solar Inverter For Home, Office & Shop arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.
Can dealers or distributors get a custom quote for UTL Off Grid Mars Online Solar PCU 15240 (3-3)Output, 15 kVA 240 V Solar Inverter For Home, Office & Shop in large volumes?
+
Yes — use the RFQ feature for dealer or distributor-level UTL Off Grid Mars Online Solar PCU 15240 (3-3)Output, 15 kVA 240 V Solar Inverter For Home, Office & Shop orders. Our sales team provides a dedicated quote and delivery plan for bulk agricultural equipment purchases.
Can UTL Off Grid Mars Online Solar PCU 15240 (3-3)Output, 15 kVA 240 V Solar Inverter For Home, Office & Shop orders be timed to arrive before the sowing or harvest season?
+
Yes — for seasonal equipment needs, place your UTL Off Grid Mars Online Solar PCU 15240 (3-3)Output, 15 kVA 240 V Solar Inverter For Home, Office & Shop order with enough lead time before peak season, or contact our sales team to confirm stock availability and delivery timing ahead of sowing or harvest windows.
Is a GST invoice provided for UTL Off Grid Mars Online Solar PCU 15240 (3-3)Output, 15 kVA 240 V Solar Inverter For Home, Office & Shop purchases?
+
Yes, every UTL Off Grid Mars Online Solar PCU 15240 (3-3)Output, 15 kVA 240 V Solar Inverter For Home, Office & Shop order comes with an automatically generated GST invoice, useful for input tax credit claims and standard farm-business accounting.
Is UTL Off Grid Mars Online Solar PCU 15240 (3-3)Output, 15 kVA 240 V Solar Inverter For Home, Office & Shop suitable for both small farms and large agricultural operations?
+
ToolHaat lists UTL Off Grid Mars Online Solar PCU 15240 (3-3)Output, 15 kVA 240 V Solar Inverter For Home, Office & Shop across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
