UTL · SKU: thagri10684

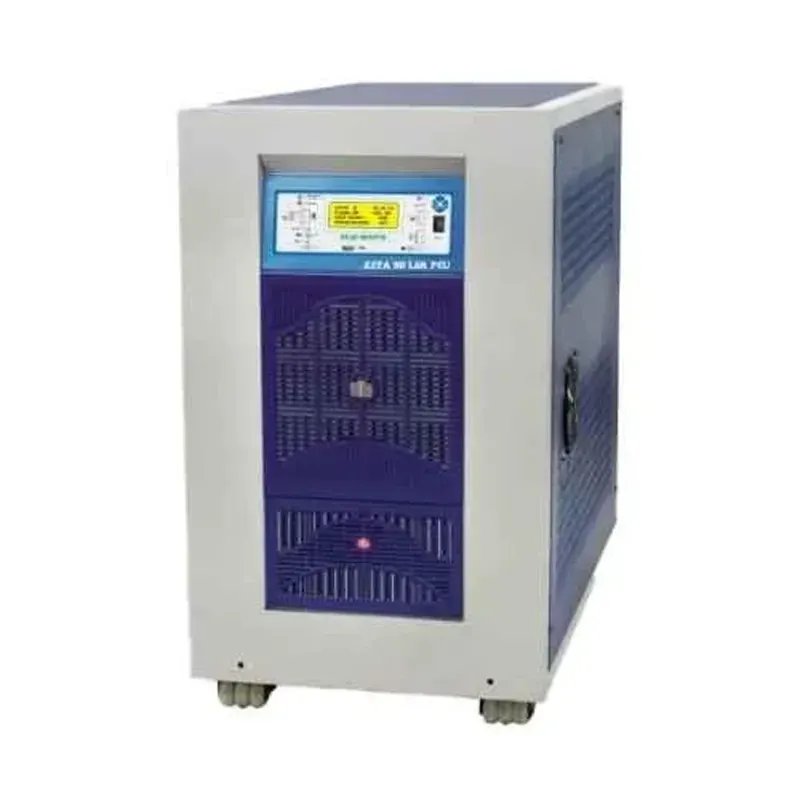

UTL Off Grid Mars Online Solar PCU 10240 (3-3)Output, 10 kVA 240 V Solar Inverter For Home, Office & Shop
In Stock
₹1,58,301₹1,70,000-7% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Switching Devices | IGBT |
| Brand | UTL |
| Weight (Approx.) | 50 kg |
| Voltage Range | 400V±20% |
| Phase | 3 |
| Frequency | 50Hz±20% |
| Power Factor | >0.92 |
| Charger Topology | Buck |
| Solar | 10kW |
| Voc (min-max) | 400V - 740V |
| Vmp | 288V - 660V |
| Configurable (72 Cell) | 16 panel in series (2 strings) |
| Switching Freq. | 16 KHz |
| Type of Charger | PWM with MPPT |
| Peak Efficiency (DC-DC) | 96% |
| Battery Low Buzzer | Battery Low Cut + 0.2 |
| Battery Low Cut | 10-11.7V |
| Battery High Cut (Charger) | Battery Volt By SPV + 0.7 |
| Battery Charging Voltage by Grid | 13-14.5V |
| Battery Charging Current by Grid | 3-12A |
| Battery Charging Voltage by SPV | 13.5-15V |
| Battery Charging Current by SPV | 5-24A |
| Grid Charger Reconnect | Enable /Disable |
| Output Voltage Low Cut | 170-190V |
| Output Voltage High Cut | 250-260V |
| Voltage | 380V/400V/415V ±1% (3phase 4 wire) |
| Load Current | 11.6A |
| Efficiency (AC – AC) | >90%@Full Load |
| Waveform | Pure Sine Wave |
| Voltage Harmonics | <3% Linear Load |
| Overload Capacity | 100 to 110%-10 Mins ; 110 to 120%-2 Mins ; 120 to 150%-30 Secs ; 150 to 200%-2 Secs ; 200 to 300%-1secs ; 300 to 400%-250msecs ; >400%-20-30msecs |
| Crest Factor | 3:1 |
| Frequency Regulation | ±0.05Hz |
| Alarm | Battery Low, battery High, Overload |
| Extended Battery Charging | Yes |
| Caster Wheels | Yes |
| Operating Environment | 0-50° C |
| Operating Relative Humidity | (5%-95%) Non-condensed |
| Storage Environment | 0-75°C |
| Storage Relative Humidity | 0-95% |
| Degree of Protection | IP20 |
| Remote Monitoring | Ethernet (Optional) |
| Dimension (LXWXH) | 762 x 406 x 685 mm |
| Capacity | 10kVA power rating with a 240V battery bank requirement. |
| 3-Phase (3-3) Configuration | Designed for balanced 3-phase input and 3-phase output for industrial loads. |
| MPPT Technology | Advanced rMPPT charge controller extracts up to 30% more power from solar panels compared to PWM. |
| Double Conversion | Eliminates all power disturbances (noise, spikes, and harmonics) by converting AC to DC and back to clean AC. |
| Pure Sine Wave Output | Ensures the safety of sensitive electronics like servers, medical equipment, and high-end motors. |
| Configurable Priority | Select between Solar/Battery/Grid or Solar/Grid/Battery modes based on your needs. |
| High Surge Capability | Can handle up to 300% surge for starting heavy inductive loads like air conditioners or heavy machinery. |
| Robust Warranty | Comes with a 5-year comprehensive warranty for long-term peace of mind. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About UTL Off Grid Mars Online Solar PCU 10240 (3-3)Output, 10 kVA 240 V Solar Inverter For Home, Office & Shop
UTL Off Grid Mars Online Solar PCU 10240 (3-3)Output, 10 kVA 240 V Solar Inverter For Home, Office & Shop is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by UTL. Key specifications include switching devices IGBT, weight (approx.) 50 kg, voltage range 400V±20%, phase 3, frequency 50Hz±20%. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
UTL Off Grid Mars Online Solar PCU 10240 (3-3)Output, 10 kVA 240 V Solar Inverter For Home, Office & Shop specifications
| Switching Devices | IGBT |
|---|---|
| Weight (Approx.) | 50 kg |
| Voltage Range | 400V±20% |
| Phase | 3 |
| Frequency | 50Hz±20% |
| Power Factor | >0.92 |
| Charger Topology | Buck |
| Solar | 10kW |
| Voc (min-max) | 400V - 740V |
| Vmp | 288V - 660V |
| Configurable (72 Cell) | 16 panel in series (2 strings) |
| Switching Freq. | 16 KHz |
FAQs related to UTL Off Grid Mars Online Solar PCU 10240 (3-3)Output, 10 kVA 240 V Solar Inverter For Home, Office & Shop
Does UTL Off Grid Mars Online Solar PCU 10240 (3-3)Output, 10 kVA 240 V Solar Inverter For Home, Office & Shop come with a warranty or after-sales support?
+
Warranty terms for UTL Off Grid Mars Online Solar PCU 10240 (3-3)Output, 10 kVA 240 V Solar Inverter For Home, Office & Shop vary by vendor and brand — check the product listing for specific coverage. ToolHaat support can help connect you with the vendor for warranty claims or service queries after purchase.
What if UTL Off Grid Mars Online Solar PCU 10240 (3-3)Output, 10 kVA 240 V Solar Inverter For Home, Office & Shop arrives damaged or doesn’t match the listed specifications?
+
Contact ToolHaat support with your order ID and photos if UTL Off Grid Mars Online Solar PCU 10240 (3-3)Output, 10 kVA 240 V Solar Inverter For Home, Office & Shop arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.
How long does delivery take for UTL Off Grid Mars Online Solar PCU 10240 (3-3)Output, 10 kVA 240 V Solar Inverter For Home, Office & Shop orders, including to rural areas?
+
Delivery timelines for UTL Off Grid Mars Online Solar PCU 10240 (3-3)Output, 10 kVA 240 V Solar Inverter For Home, Office & Shop are shown at checkout based on your pincode. ToolHaat delivers pan-India, including rural and semi-urban locations, though larger equipment may have a longer transit window than smaller accessories.
Can I compare different brands and price points for UTL Off Grid Mars Online Solar PCU 10240 (3-3)Output, 10 kVA 240 V Solar Inverter For Home, Office & Shop before buying?
+
Yes — ToolHaat lists UTL Off Grid Mars Online Solar PCU 10240 (3-3)Output, 10 kVA 240 V Solar Inverter For Home, Office & Shop from multiple vendors and brands at different price points and specifications, so you can compare before committing to a bulk purchase.
Are spare parts or accessories for UTL Off Grid Mars Online Solar PCU 10240 (3-3)Output, 10 kVA 240 V Solar Inverter For Home, Office & Shop also available on ToolHaat?
+
Many UTL Off Grid Mars Online Solar PCU 10240 (3-3)Output, 10 kVA 240 V Solar Inverter For Home, Office & Shop categories on ToolHaat also list compatible accessories and spare parts separately — check related subcategories or use search to find parts matching your specific model.
