UTL · SKU: thagri10548

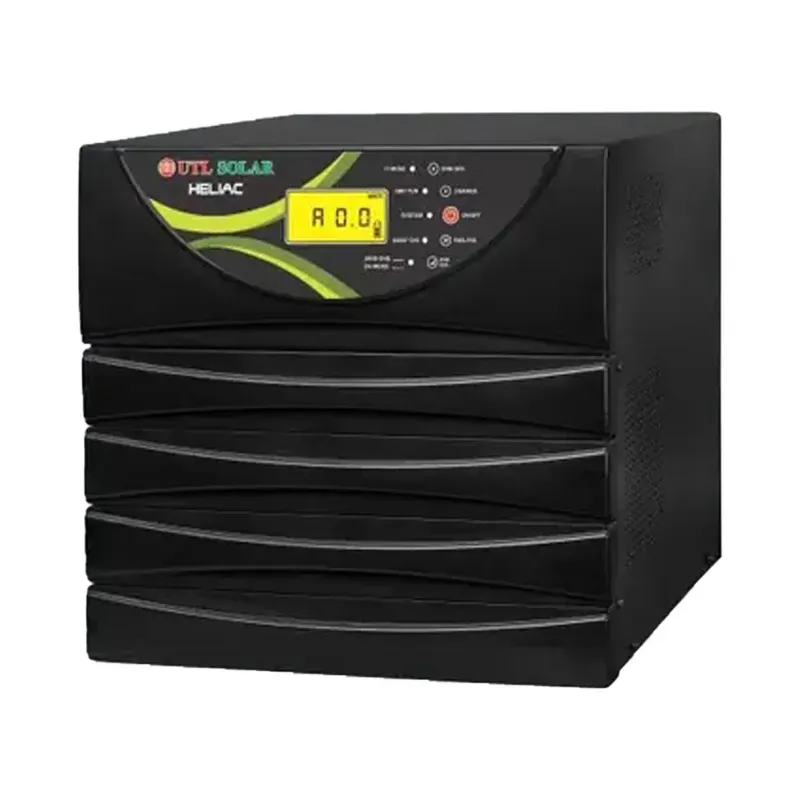

UTL HELIAC 3550 -24 V Inverter 3000VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops
In Stock
₹18,315₹22,900-20% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | UTL |
| Weight (Approx.) | 30 kg |
| System Rating | 3000VA |
| Operating DC Voltage | 24V |
| Switching Element | MOSFET |
| Charger Topology | Boost Mosfet |
| Max. Battery Capacity | 200AH |
| Operating Mode | Smart mode (Default) |
| Optional DG mode | Disable (Default) |
| Solar Power Maximum | 2000W |
| Nominal Grid Voltage | 230V 1Φ |
| Nominal frequency | 50Hz |
| Frequency Range | 47-53Hz ± 1Hz |
| Battery Charging Method 3 Stages | Bulk/Absorption/Float/Equalize |
| Default charging mode | Tubular |
| Grid - Battery Charging Voltage (TUB) | 14.5V ± 0.2V |
| Grid - Battery Charging Voltage (LITHIUM) | 13.8V ± 0.2V |
| Grid Charging Current | 12A/15A ± 2A |
| Optional Grid charging | Enable |
| Grid Reconnect @ Battery Voltage (TUB) | 11.8V ± 0.2V |
| Grid Reconnect @ Battery Voltage (LITHIUM) | 12.4V ± 0.2V |
| Grid Low Cut Voltage | 170V ± 10V |
| Grid Low Cut Recovery | 180V ± 10V |
| Grid High Cut Voltage | 265V ± 10V |
| Grid High Cut Recovery | 255V ± 10V |
| Change Over (Battery to Mains) | <5ms |
| Change Over (Mains to Battery) | <12ms |
| Output Phase | 1Φ |
| Nominal Output Voltage | 230V ± 8% |
| Nominal Frequency | 50 Hz ± 1% |
| Max. Output Current | 4.3A |
| Battery Low Buzzer (TUB) | 10.8V ± 0.2V (Each Battery ) |
| Battery Low Cut(TUB) | 10.5V ± 0.2V (Each Battery ) |
| Battery Low Buzzer (LITHIUM) | 11.9V ± 0.2V (Each Battery) |
| Battery Low Cut (LITHIUM) | 11.6V ± 0.2V (Each Battery) |
| Battery High Cut (TUB) | 16.5 ± 0.2V (Each Battery) |
| Battery High Cut (LITHIUM) | 14.5 ± 0.2V (Each Battery) |
| Output Waveform | Sinewave |
| Typical Efficiency | >85% |
| Voltage Harmonic | <3% (Linear Load) |
| Type of Charger | PWM |
| SPV Charging Voltage (Boost) | 14.7V ± 0.2V (Each Battery) |
| Efficiency | >95% |
| Inbuilt Solar Charge Controller | Ensures up to 30% more energy generation from solar panels compared to PWM controllers |
| Low Voltage Charging | Can charge the battery from the mains grid even with a low input voltage |
| Dual Priority Modes | Selectable Hybrid and Smart modes for maximizing solar energy usage and saving money |
| Battery Health | Multi-stage (Bulk, Absorption, Float) battery charging with auto-equalization feature to maintain long battery life |
| Load Compatibility | Compatible with IT loads |
| Flexibility | Can operate without solar panels, functioning as a regular inverter initially |
| Protection | Comprehensive electronic protections |
| Display | LED display for operational status and fault indications |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About UTL HELIAC 3550 -24 V Inverter 3000VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops
UTL HELIAC 3550 -24 V Inverter 3000VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by UTL. Key specifications include weight (approx.) 30 kg, system rating 3000VA, operating dc voltage 24V, switching element MOSFET, charger topology Boost Mosfet. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
UTL HELIAC 3550 -24 V Inverter 3000VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops specifications
| Weight (Approx.) | 30 kg |
|---|---|
| System Rating | 3000VA |
| Operating DC Voltage | 24V |
| Switching Element | MOSFET |
| Charger Topology | Boost Mosfet |
| Max. Battery Capacity | 200AH |
| Operating Mode | Smart mode (Default) |
| Optional DG mode | Disable (Default) |
| Solar Power Maximum | 2000W |
| Nominal Grid Voltage | 230V 1Φ |
| Nominal frequency | 50Hz |
| Frequency Range | 47-53Hz ± 1Hz |
FAQs related to UTL HELIAC 3550 -24 V Inverter 3000VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops
Is UTL HELIAC 3550 -24 V Inverter 3000VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops suitable for both small farms and large agricultural operations?
+
ToolHaat lists UTL HELIAC 3550 -24 V Inverter 3000VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
Can dealers or distributors get a custom quote for UTL HELIAC 3550 -24 V Inverter 3000VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops in large volumes?
+
Yes — use the RFQ feature for dealer or distributor-level UTL HELIAC 3550 -24 V Inverter 3000VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops orders. Our sales team provides a dedicated quote and delivery plan for bulk agricultural equipment purchases.
Can I compare different brands and price points for UTL HELIAC 3550 -24 V Inverter 3000VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops before buying?
+
Yes — ToolHaat lists UTL HELIAC 3550 -24 V Inverter 3000VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops from multiple vendors and brands at different price points and specifications, so you can compare before committing to a bulk purchase.
How long does delivery take for UTL HELIAC 3550 -24 V Inverter 3000VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops orders, including to rural areas?
+
Delivery timelines for UTL HELIAC 3550 -24 V Inverter 3000VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops are shown at checkout based on your pincode. ToolHaat delivers pan-India, including rural and semi-urban locations, though larger equipment may have a longer transit window than smaller accessories.
Does UTL HELIAC 3550 -24 V Inverter 3000VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops come with a warranty or after-sales support?
+
Warranty terms for UTL HELIAC 3550 -24 V Inverter 3000VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops vary by vendor and brand — check the product listing for specific coverage. ToolHaat support can help connect you with the vendor for warranty claims or service queries after purchase.
