UTL · SKU: thagri10387

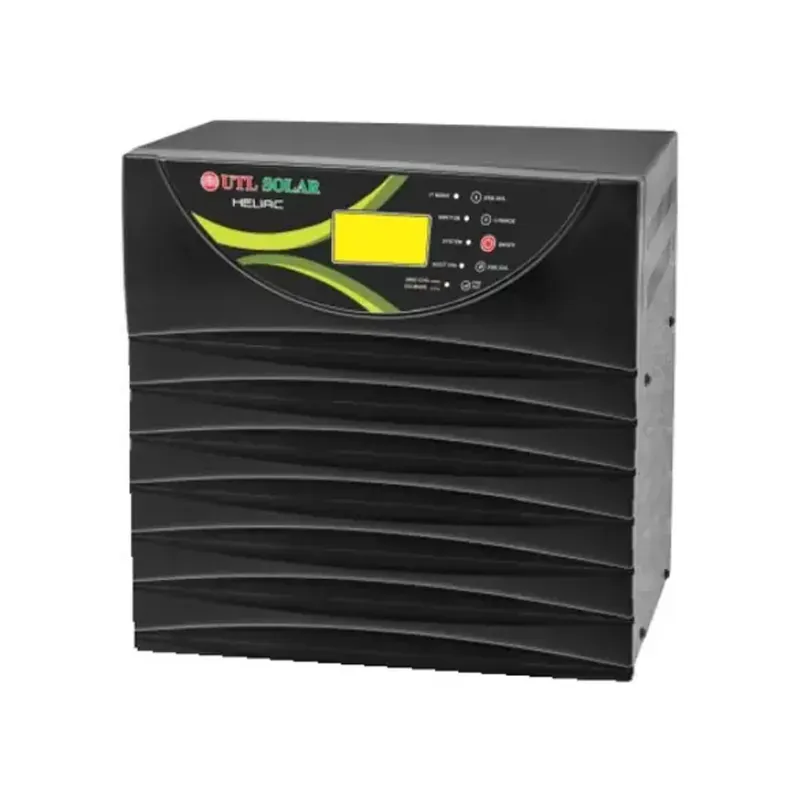

UTL HELIAC 3000 -24 V Inverter 2200VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops
In Stock
₹14,355₹18,900-24% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | UTL |
| Weight (Approx.) | 17 kg |
| System Rating | 2200VA |
| Operating DC Voltage | 24V |
| Switching Element | MOSFET |
| Charger Topology | Boost Mosfet |
| Max. Battery Capacity | 200AH |
| Operating Mode | Smart mode (Default) |
| Optional DG mode | Disable (Default) |
| Solar Power Maximum | 2000W |
| Nominal Grid Voltage | 230V 1Φ |
| Nominal frequency | 50Hz |
| Frequency Range | 47-53Hz ± 1Hz |
| Battery Charging Method 3 Stages | Bulk/Absorption/Float/Equalize |
| Default charging mode | Tubular |
| Grid - Battery Charging Voltage (TUB) | 14.5V ± 0.2V |
| Grid - Battery Charging Voltage (LITHIUM) | 13.8V ± 0.2V |
| Grid Charging Current | 12A/15A ± 2A |
| Optional Grid charging | Enable |
| Grid Reconnect @ Battery Voltage (TUB) | 11.8V ± 0.2V |
| Grid Reconnect @ Battery Voltage (LITHIUM) | 12.4V ± 0.2V |
| Grid Low Cut Voltage | 170V ± 10V |
| Grid Low Cut Recovery | 180V ± 10V |
| Grid High Cut Voltage | 265V ± 10V |
| Grid High Cut Recovery | 255V ± 10V |
| Change Over (Battery to Mains) | <5ms |
| Change Over (Mains to Battery) | <12ms |
| Output Phase | 1Φ |
| Nominal Output Voltage | 230V ± 8% |
| Nominal Frequency | 50 Hz ± 1% |
| Max. Output Current | 4.3A |
| Battery Low Buzzer (TUB) | 10.8V ± 0.2V (Each Battery ) |
| Battery Low Cut(TUB) | 10.5V ± 0.2V (Each Battery ) |
| Battery Low Buzzer (LITHIUM) | 11.9V ± 0.2V (Each Battery) |
| Battery Low Cut (LITHIUM) | 11.6V ± 0.2V (Each Battery) |
| Battery High Cut (TUB) | 16.5 ± 0.2V (Each Battery) |
| Battery High Cut (LITHIUM) | 14.5 ± 0.2V (Each Battery) |
| Output Waveform | Sinewave |
| Typical Efficiency | >85% |
| Voltage Harmonic | <3% (Linear Load) |
| Type of Charger | PWM |
| SPV Charging Voltage (Boost) | 14.7V ± 0.2V (Each Battery) |
| Efficiency | >95% |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About UTL HELIAC 3000 -24 V Inverter 2200VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops
UTL HELIAC 3000 -24 V Inverter 2200VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by UTL. Key specifications include weight (approx.) 17 kg, system rating 2200VA, operating dc voltage 24V, switching element MOSFET, charger topology Boost Mosfet. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
UTL HELIAC 3000 -24 V Inverter 2200VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops specifications
| Weight (Approx.) | 17 kg |
|---|---|
| System Rating | 2200VA |
| Operating DC Voltage | 24V |
| Switching Element | MOSFET |
| Charger Topology | Boost Mosfet |
| Max. Battery Capacity | 200AH |
| Operating Mode | Smart mode (Default) |
| Optional DG mode | Disable (Default) |
| Solar Power Maximum | 2000W |
| Nominal Grid Voltage | 230V 1Φ |
| Nominal frequency | 50Hz |
| Frequency Range | 47-53Hz ± 1Hz |
FAQs related to UTL HELIAC 3000 -24 V Inverter 2200VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops
How long does delivery take for UTL HELIAC 3000 -24 V Inverter 2200VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops orders, including to rural areas?
+
Delivery timelines for UTL HELIAC 3000 -24 V Inverter 2200VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops are shown at checkout based on your pincode. ToolHaat delivers pan-India, including rural and semi-urban locations, though larger equipment may have a longer transit window than smaller accessories.
Can UTL HELIAC 3000 -24 V Inverter 2200VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops orders be timed to arrive before the sowing or harvest season?
+
Yes — for seasonal equipment needs, place your UTL HELIAC 3000 -24 V Inverter 2200VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops order with enough lead time before peak season, or contact our sales team to confirm stock availability and delivery timing ahead of sowing or harvest windows.
Is a GST invoice provided for UTL HELIAC 3000 -24 V Inverter 2200VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops purchases?
+
Yes, every UTL HELIAC 3000 -24 V Inverter 2200VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops order comes with an automatically generated GST invoice, useful for input tax credit claims and standard farm-business accounting.
Is UTL HELIAC 3000 -24 V Inverter 2200VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops suitable for both small farms and large agricultural operations?
+
ToolHaat lists UTL HELIAC 3000 -24 V Inverter 2200VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
Can I compare different brands and price points for UTL HELIAC 3000 -24 V Inverter 2200VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops before buying?
+
Yes — ToolHaat lists UTL HELIAC 3000 -24 V Inverter 2200VA 24 V HELIAC SOLAR PCU Solar Inverter For Home, Office & Shops from multiple vendors and brands at different price points and specifications, so you can compare before committing to a bulk purchase.
