UTL · SKU: thagri10682

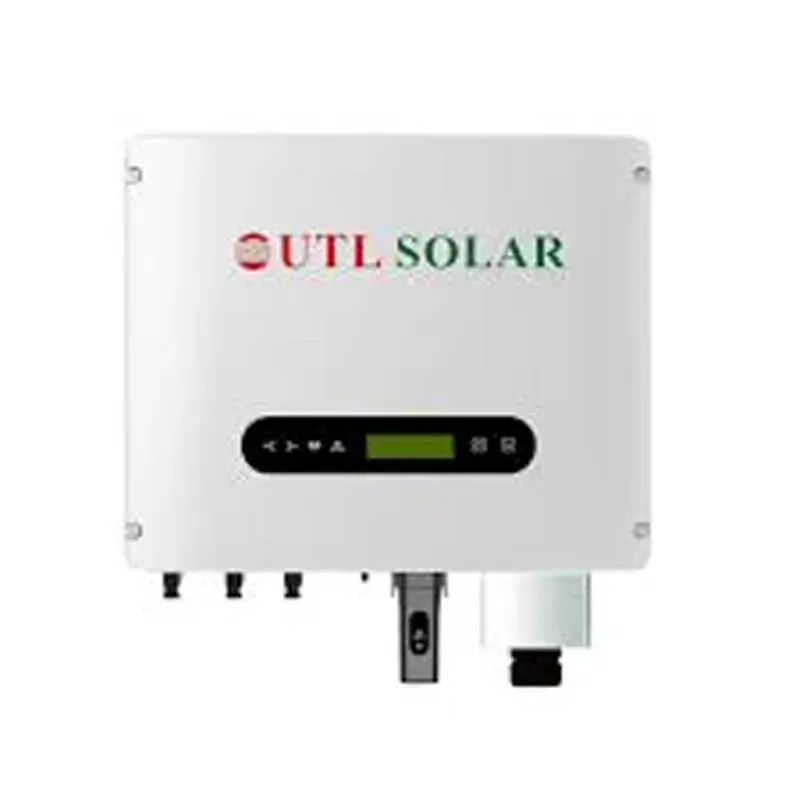

UTL GT-10-GXT2 (Pro), Grid Tie Three Phase 10 kW Solar Inverter For Home, Office & Shops
In Stock
₹55,638₹60,000-7% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | UTL |
| Weight (Approx.) | 10 kg |
| Max. DC Input Power (kW) | 13 |
| Max. DC Input Voltage (V) | 1000 |
| Start-up DC Input Voltage (V) | 140 |
| MPPT Operating Range (V) | 120 - 850 |
| Max. DC Input Current (A) | 13+13 |
| Max. Short Circuit Current (A) | 19.5+19.5 |
| No. of MPP Trackers | 2 |
| No. of Strings per MPP Tracker | 1 |
| Rated Output Power (kW) | 10 |
| Max. Active Power (kW) | 11 |
| Nominal Output Voltage/Range (V) | 3L/N/PE 220/380V, 230/400V |
| Rated Grid Frequency (Hz) | 50 / 60 (Optional) |
| Operating Phase | 3 |
| Rated AC Grid Output Current (A) | 15.2/14.5 |
| Max. AC Output Current (A) | 16.7/15.9 |
| Output Power Factor | 0.8 leading to 0.8 lagging |
| Grid Current THD | <3% |
| DC Injection Current (mA) | <0.5% |
| Grid Frequency Range | 50/60Hz (±5) |
| Max. Efficiency | 98.3 % |
| Euro Efficiency | 97.5 % |
| MPPT Efficiency | >99 % |
| Size (WxHxD) | 330 x457.5 x185 |
| Topology | Transformerless |
| Internal Consumption | <1W (Night) |
| Running Temperature | -25-65°C, 45°C derating |
| Ingress Protection | IP65 |
| Noise Emission (Typical) | <30 dB |
| Cooling Concept | Natural cooling |
| Max. Operating Altitude Without Derating | 2000m |
| High Efficiency | Boasts a peak MPPT efficiency of up to 99.9% and overall efficiency of 98.3% for maximum energy harvesting. |
| Dual MPPT Trackers | Allows for better performance even with different roof orientations or partial shading. |
| Rugged Protection | Rated IP65 for outdoor installation, providing protection against dust and water. |
| Built-in Safety | Equipped with Type-II AC & DC Surge Protection (SPD) to safeguard against lightning and voltage spikes. |
| Remote Monitoring | Integrated Wi-Fi/RS485 support for real-time performance tracking via the UTL Solar App. |
| Low Maintenance | Transformerless design and natural/intelligent cooling ensure a silent, long-lasting operation with minimal upkeep. |
| User-Friendly Display | Features a 1602 LCD screen for local monitoring of parameters like power generation and grid status. |
| Wide Voltage Range | Low startup voltage (140V) and wide MPPT operating range (120V–850V) ensure the system starts earlier and works later into the evening |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About UTL GT-10-GXT2 (Pro), Grid Tie Three Phase 10 kW Solar Inverter For Home, Office & Shops
UTL GT-10-GXT2 (Pro), Grid Tie Three Phase 10 kW Solar Inverter For Home, Office & Shops is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by UTL. Key specifications include weight (approx.) 10 kg, max. dc input power (kw) 13, max. dc input voltage (v) 1000, start-up dc input voltage (v) 140, mppt operating range (v) 120 - 850. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
UTL GT-10-GXT2 (Pro), Grid Tie Three Phase 10 kW Solar Inverter For Home, Office & Shops specifications
| Weight (Approx.) | 10 kg |
|---|---|
| Max. DC Input Power (kW) | 13 |
| Max. DC Input Voltage (V) | 1000 |
| Start-up DC Input Voltage (V) | 140 |
| MPPT Operating Range (V) | 120 - 850 |
| Max. DC Input Current (A) | 13+13 |
| Max. Short Circuit Current (A) | 19.5+19.5 |
| No. of MPP Trackers | 2 |
| No. of Strings per MPP Tracker | 1 |
| Rated Output Power (kW) | 10 |
| Max. Active Power (kW) | 11 |
| Nominal Output Voltage/Range (V) | 3L/N/PE 220/380V, 230/400V |
FAQs related to UTL GT-10-GXT2 (Pro), Grid Tie Three Phase 10 kW Solar Inverter For Home, Office & Shops
Are spare parts or accessories for UTL GT-10-GXT2 (Pro), Grid Tie Three Phase 10 kW Solar Inverter For Home, Office & Shops also available on ToolHaat?
+
Many UTL GT-10-GXT2 (Pro), Grid Tie Three Phase 10 kW Solar Inverter For Home, Office & Shops categories on ToolHaat also list compatible accessories and spare parts separately — check related subcategories or use search to find parts matching your specific model.
Is UTL GT-10-GXT2 (Pro), Grid Tie Three Phase 10 kW Solar Inverter For Home, Office & Shops suitable for both small farms and large agricultural operations?
+
ToolHaat lists UTL GT-10-GXT2 (Pro), Grid Tie Three Phase 10 kW Solar Inverter For Home, Office & Shops across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
Is a GST invoice provided for UTL GT-10-GXT2 (Pro), Grid Tie Three Phase 10 kW Solar Inverter For Home, Office & Shops purchases?
+
Yes, every UTL GT-10-GXT2 (Pro), Grid Tie Three Phase 10 kW Solar Inverter For Home, Office & Shops order comes with an automatically generated GST invoice, useful for input tax credit claims and standard farm-business accounting.
Can UTL GT-10-GXT2 (Pro), Grid Tie Three Phase 10 kW Solar Inverter For Home, Office & Shops orders be timed to arrive before the sowing or harvest season?
+
Yes — for seasonal equipment needs, place your UTL GT-10-GXT2 (Pro), Grid Tie Three Phase 10 kW Solar Inverter For Home, Office & Shops order with enough lead time before peak season, or contact our sales team to confirm stock availability and delivery timing ahead of sowing or harvest windows.
How long does delivery take for UTL GT-10-GXT2 (Pro), Grid Tie Three Phase 10 kW Solar Inverter For Home, Office & Shops orders, including to rural areas?
+
Delivery timelines for UTL GT-10-GXT2 (Pro), Grid Tie Three Phase 10 kW Solar Inverter For Home, Office & Shops are shown at checkout based on your pincode. ToolHaat delivers pan-India, including rural and semi-urban locations, though larger equipment may have a longer transit window than smaller accessories.
