UTL · SKU: thagri10686

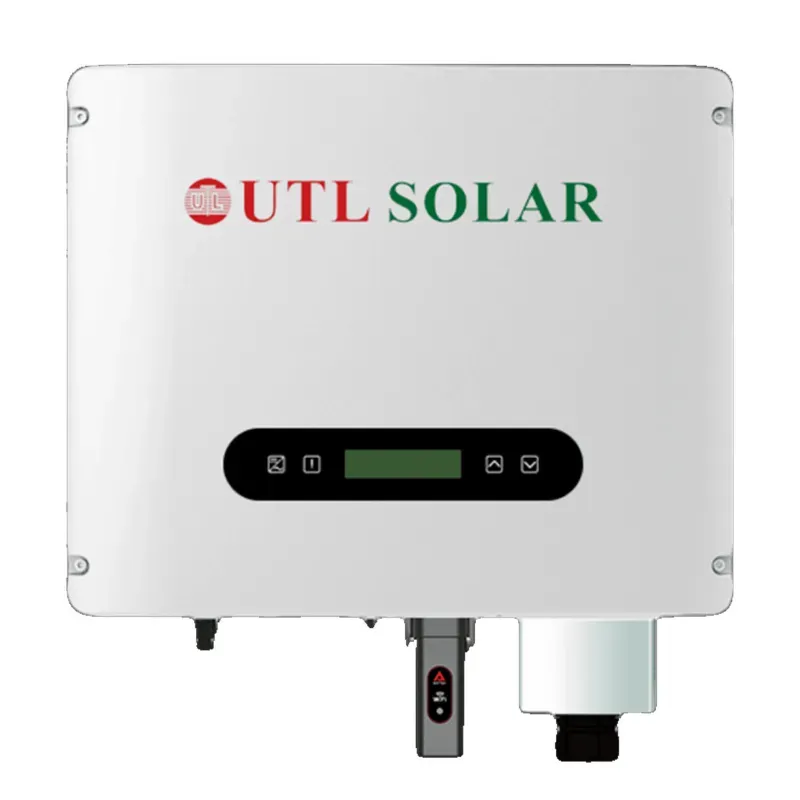

UTL 5 kW Grid Tie Single Phase Solar Inverter For Home, Office & Commercial Purpose
In Stock
₹33,165₹43,600-24% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | UTL |
| Weight (Approx.) | 9.5 kg |
| Max. DC Input Power (kW) | 6.5 |
| Max. DC Input Voltage (V) | 1000 |
| Start-up DC Input Voltage (V) | 140 |
| MPPT Operating Range (V) | 120-850 |
| Max. DC Input Current (A) | 13+13 |
| Max. Short Circuit Current (A) | 19.5+19.5 |
| No. of MPP Trackers | 1 |
| No. of Strings per MPP Tracker | 1 |
| Rated Output Power (kW) | 5 |
| Max. Active Power (kW) | 5.5 |
| Nominal Output Voltage/Range (V) | 3L/N/PE 220/380V |
| Rated Grid Frequency (Hz) | 50 / 60 (Optional) |
| Operating Phase | 1 |
| Rated AC Grid Output Current (A) | 7.6/7.2 |
| Max. AC Output Current (A) | 8.3/8 |
| Output Power Factor | 0.8 leading to 0.8 lagging |
| Grid Current THD | <3% |
| DC Injection Current (mA) | <0.5% |
| Grid Frequency Range | 50/60Hz (±5) |
| Max. Efficiency | 98.3 % |
| Euro Efficiency | 97.5 % |
| MPPT Efficiency | >99 % |
| Size (WxHxD) | 330 x 457.5 x 185 mm |
| Topology | Transformerless |
| Internal Consumption | <1W (Night) |
| Running Temperature | -25-65°C, 45°C derating |
| Ingress Protection | IP65 |
| Noise Emission (Typical) | <35 dB |
| Cooling Concept | Natural cooling |
| Max. Operating Altitude Without Derating | 2000m |
| High Efficiency | Equipped with advanced MPPT technology achieving up to 99% tracking efficiency for maximum power harvest. |
| Grid-Tie Convenience | Operates without the need for expensive battery banks, feeding excess power directly into the government grid. |
| Smart Monitoring | Integrated Wi-Fi/GPRS support allows you to track real-time energy generation via the UTL Solar App. |
| Robust Protection | Features IP65-rated weatherproof housing and built-in Type-II SPDs (Surge Protection Devices) for both AC and DC sides. |
| User-Friendly Design | Compact, wall-mountable aesthetic with an LCD for easy status monitoring and low noise emission (<25dB). |
| 5-Year Warranty | Comes with a standard 5-year warranty (often extendable up to 10 years) for long-term peace of mind. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About UTL 5 kW Grid Tie Single Phase Solar Inverter For Home, Office & Commercial Purpose
UTL 5 kW Grid Tie Single Phase Solar Inverter For Home, Office & Commercial Purpose is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by UTL. Key specifications include weight (approx.) 9.5 kg, max. dc input power (kw) 6.5, max. dc input voltage (v) 1000, start-up dc input voltage (v) 140, mppt operating range (v) 120-850. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
UTL 5 kW Grid Tie Single Phase Solar Inverter For Home, Office & Commercial Purpose specifications
| Weight (Approx.) | 9.5 kg |
|---|---|
| Max. DC Input Power (kW) | 6.5 |
| Max. DC Input Voltage (V) | 1000 |
| Start-up DC Input Voltage (V) | 140 |
| MPPT Operating Range (V) | 120-850 |
| Max. DC Input Current (A) | 13+13 |
| Max. Short Circuit Current (A) | 19.5+19.5 |
| No. of MPP Trackers | 1 |
| No. of Strings per MPP Tracker | 1 |
| Rated Output Power (kW) | 5 |
| Max. Active Power (kW) | 5.5 |
| Nominal Output Voltage/Range (V) | 3L/N/PE 220/380V |
FAQs related to UTL 5 kW Grid Tie Single Phase Solar Inverter For Home, Office & Commercial Purpose
Does UTL 5 kW Grid Tie Single Phase Solar Inverter For Home, Office & Commercial Purpose come with a warranty or after-sales support?
+
Warranty terms for UTL 5 kW Grid Tie Single Phase Solar Inverter For Home, Office & Commercial Purpose vary by vendor and brand — check the product listing for specific coverage. ToolHaat support can help connect you with the vendor for warranty claims or service queries after purchase.
Is a GST invoice provided for UTL 5 kW Grid Tie Single Phase Solar Inverter For Home, Office & Commercial Purpose purchases?
+
Yes, every UTL 5 kW Grid Tie Single Phase Solar Inverter For Home, Office & Commercial Purpose order comes with an automatically generated GST invoice, useful for input tax credit claims and standard farm-business accounting.
What if UTL 5 kW Grid Tie Single Phase Solar Inverter For Home, Office & Commercial Purpose arrives damaged or doesn’t match the listed specifications?
+
Contact ToolHaat support with your order ID and photos if UTL 5 kW Grid Tie Single Phase Solar Inverter For Home, Office & Commercial Purpose arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.
Can I compare different brands and price points for UTL 5 kW Grid Tie Single Phase Solar Inverter For Home, Office & Commercial Purpose before buying?
+
Yes — ToolHaat lists UTL 5 kW Grid Tie Single Phase Solar Inverter For Home, Office & Commercial Purpose from multiple vendors and brands at different price points and specifications, so you can compare before committing to a bulk purchase.
Are spare parts or accessories for UTL 5 kW Grid Tie Single Phase Solar Inverter For Home, Office & Commercial Purpose also available on ToolHaat?
+
Many UTL 5 kW Grid Tie Single Phase Solar Inverter For Home, Office & Commercial Purpose categories on ToolHaat also list compatible accessories and spare parts separately — check related subcategories or use search to find parts matching your specific model.
