UTL · SKU: thagri11878

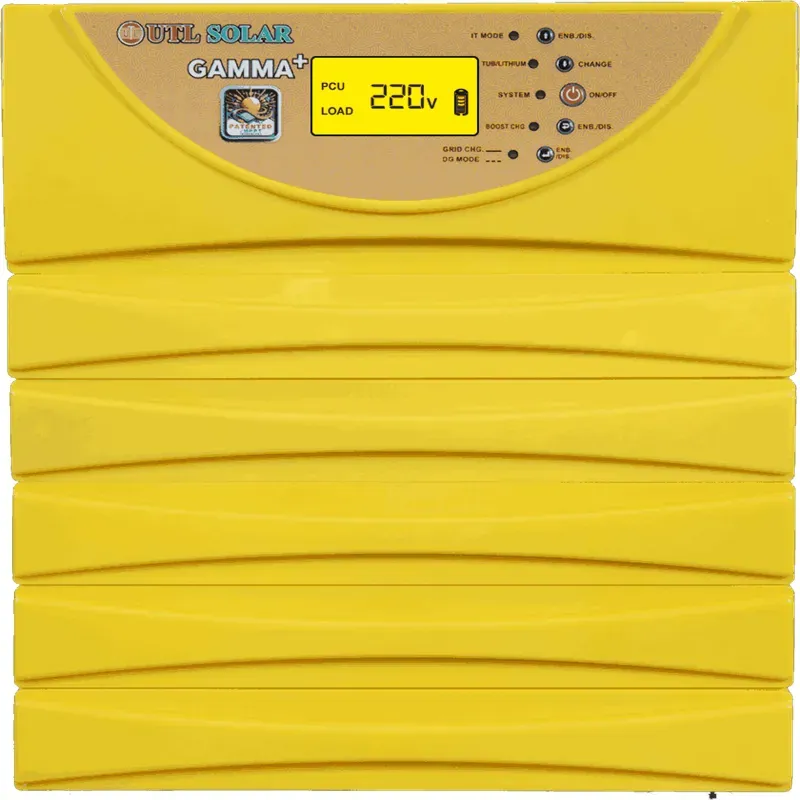

UTL GPP 3400 Gamma+ Solar Inverter 3000VA 24 V Solar Inverter For Home, Office & Shops
In Stock
₹24,057₹30,500-21% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | UTL |
| Weight (Approx.) | 25 kg |
| Model Name | GPP 3400 |
| Technology | rMPPT |
| Max. output current | 9A |
| Solar Power Maximum | 3000W |
| Max. Battery Capacity | 200AH |
| Switching Element | MOSFET |
| Charger Topology | Boost Mosfet |
| Operating Mode | Smart mode (Default) |
| Optional DG Mode | Disable (Default) |
| Operating DC Voltage | 24 volt |
| Harmonic Voltage | <3% (Linear Load) |
| Typical efficiency | >82% |
| Output Waveform | Pure sine wave |
| Input Voltage Range (Min – Max) Voc | 60V-106V |
| Nominal Grid Voltage | 230V |
| Nominal frequency | 50Hz |
| Frequency Range | 47-53Hz |
| Battery Charging Method 3 Stages | Bulk/Absorption/Float |
| Default charging mode (TUB / LITHIUM) | Tubular |
| Grid - Battery Charging Voltage (TUB) | Boost : 13.5-15V |
| Grid - Battery Charging Voltage (LITHIUM) | Boost / Float: 13.5V-14.2V |
| Grid Charging Current (Normal/Boost) | 1A-20A |
| Optional Grid Charging (Enable/Disable) | Enable |
| Grid Reconnect @ Battery Voltage (TUB) | 11-12V |
| Grid Reconnect @ Battery Voltage (LITHIUM) | 12-13V |
| Grid Low Cut Voltage (IT Mode Enable) | 170V ± 10V |
| Grid Low Cut Recovery (IT Mode Enable) | 180V ± 10V |
| Grid High Cut Voltage (IT Mode Enable) | 265V ± 10V |
| Grid High Cut Recovery (IT Mode Enable) | 255V ± 10V |
| Grid Low Cut Voltage (IT Mode Disable) | 100V ± 10V |
| Grid Low Cut Recovery (IT Mode Disable) | 110V ± 10V |
| Grid High Cut Voltage (IT Mode Disable) | 290V ± 10V |
| Grid High Cut Recovery (IT Mode Disable) | 280V ± 10V |
| Change Over (Battery to Mains) (IT Mode Enable/Disable) | < 8ms |
| Change Over (Mains to Battery) | IT Mode Enable: < 12ms |
| Output Phase | 1Φ |
| Nominal Output Voltage | 230V |
| Output voltage range | 230V ± 10% |
| Nominal Frequency | 50Hz/60Hz |
| Max. Output Current | 9.0A |
| Battery Low Buzzer (TUB) | Battery Low Cut - 0.3V |
| Battery Low Cut (TUB) | 10-11.5V |
| Battery Low Buzzer (LITHIUM) | Battery Low Cut - 0.3V |
| Battery Low Cut (LITHIUM) | 11-12V |
| Battery High Cut (TUB) | 16.5-17.5V |
| Battery High Cut (LITHIUM) | 14.5-15V |
| Typical Efficiency | >82 % |
| Voltage Harmonic | < 3% (Linear Load) |
| Over Load Capacity (IT Mode Disable) | > 100% After 30 sec delay (with alarm) 3 Time Auto Reset, 4th Time Shut Down |
| Over Load Capacity (IT Mode Enable) | > 100% After 30 sec delay (with alarm) 1st Time Shut Down, > 150% Output Goes Down |
| Protection | Overload, Battery Low, Battery High, Output Short Ckt, Battery Reverse (Fuse Blown), Over Heat @90°C ± 10°C, Over/Under frequency, I/P High, I/P Low, SPV High, SPV Low |
| LED Indication | System ON, (IT mode, TUB/LITHIUM, Boost Chg, DG mode, Grid Chg.) Enable/Disable |
| Switches (Micro) | System ON/OFF, UP, Down, Back, Enter (For LCD Calibration) |
| Display (Multi Color) | Battery Voltage, Charging Current, Grid Voltage, Grid Frequency, Output Voltage, Output Frequency, Load %, Battery Graph, Overheat, SPV Current, Operating Mode (HYB/PCU/SMT), Solar energy (KWH). |
| Type of Charger | MPPT |
| SPV Charging Voltage (TUB) | Boost: 14-15.5V |
| SPV Charging Voltage (LITHIUM) | Boost / Float: 13.6-14.4V |
| SPV Charging Current (Battery) | 11-40A |
| Efficiency | >94 % |
| Operating Temperature | 0-45 °C |
| Cooling | Fan |
| Max. Relative Humidity @ 25°C (non Condensing) | 95% |
| Noise @ 1 meter | 50 dB |
| Standard Compliance | IP21 |
| Dimension (LXWXH) | (350x305.5x360) mm |
| Bulk | Charges quickly at the start​ |
| Absorption | Slows down to protect the battery​​ |
| Float | Keeps battery full without overcharging​​ |
| Equalization | Fixes battery balance for longer life​ |
| PCU Mode (Solar → Battery → Grid)​ | First it uses solar power, then battery, and lastly grid power.​ |
| Smart Mode (Solar → Grid → Battery)​ | First solar, then grid electricity, and finally battery if needed.​​​ |
| Hybrid Mode (Grid → Solar → Battery)​ | Starts with grid, then uses solar, and battery comes last. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About UTL GPP 3400 Gamma+ Solar Inverter 3000VA 24 V Solar Inverter For Home, Office & Shops
UTL GPP 3400 Gamma+ Solar Inverter 3000VA 24 V Solar Inverter For Home, Office & Shops is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by UTL. Key specifications include weight (approx.) 25 kg, model name GPP 3400, technology rMPPT, max. output current 9A, solar power maximum 3000W. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
UTL GPP 3400 Gamma+ Solar Inverter 3000VA 24 V Solar Inverter For Home, Office & Shops specifications
| Weight (Approx.) | 25 kg |
|---|---|
| Model Name | GPP 3400 |
| Technology | rMPPT |
| Max. output current | 9A |
| Solar Power Maximum | 3000W |
| Max. Battery Capacity | 200AH |
| Switching Element | MOSFET |
| Charger Topology | Boost Mosfet |
| Operating Mode | Smart mode (Default) |
| Optional DG Mode | Disable (Default) |
| Operating DC Voltage | 24 volt |
| Harmonic Voltage | <3% (Linear Load) |
FAQs related to UTL GPP 3400 Gamma+ Solar Inverter 3000VA 24 V Solar Inverter For Home, Office & Shops
Is a GST invoice provided for UTL GPP 3400 Gamma+ Solar Inverter 3000VA 24 V Solar Inverter For Home, Office & Shops purchases?
+
Yes, every UTL GPP 3400 Gamma+ Solar Inverter 3000VA 24 V Solar Inverter For Home, Office & Shops order comes with an automatically generated GST invoice, useful for input tax credit claims and standard farm-business accounting.
Can dealers or distributors get a custom quote for UTL GPP 3400 Gamma+ Solar Inverter 3000VA 24 V Solar Inverter For Home, Office & Shops in large volumes?
+
Yes — use the RFQ feature for dealer or distributor-level UTL GPP 3400 Gamma+ Solar Inverter 3000VA 24 V Solar Inverter For Home, Office & Shops orders. Our sales team provides a dedicated quote and delivery plan for bulk agricultural equipment purchases.
What if UTL GPP 3400 Gamma+ Solar Inverter 3000VA 24 V Solar Inverter For Home, Office & Shops arrives damaged or doesn’t match the listed specifications?
+
Contact ToolHaat support with your order ID and photos if UTL GPP 3400 Gamma+ Solar Inverter 3000VA 24 V Solar Inverter For Home, Office & Shops arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.
Is UTL GPP 3400 Gamma+ Solar Inverter 3000VA 24 V Solar Inverter For Home, Office & Shops suitable for both small farms and large agricultural operations?
+
ToolHaat lists UTL GPP 3400 Gamma+ Solar Inverter 3000VA 24 V Solar Inverter For Home, Office & Shops across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
Can I compare different brands and price points for UTL GPP 3400 Gamma+ Solar Inverter 3000VA 24 V Solar Inverter For Home, Office & Shops before buying?
+
Yes — ToolHaat lists UTL GPP 3400 Gamma+ Solar Inverter 3000VA 24 V Solar Inverter For Home, Office & Shops from multiple vendors and brands at different price points and specifications, so you can compare before committing to a bulk purchase.
