UTL · SKU: thagri10516

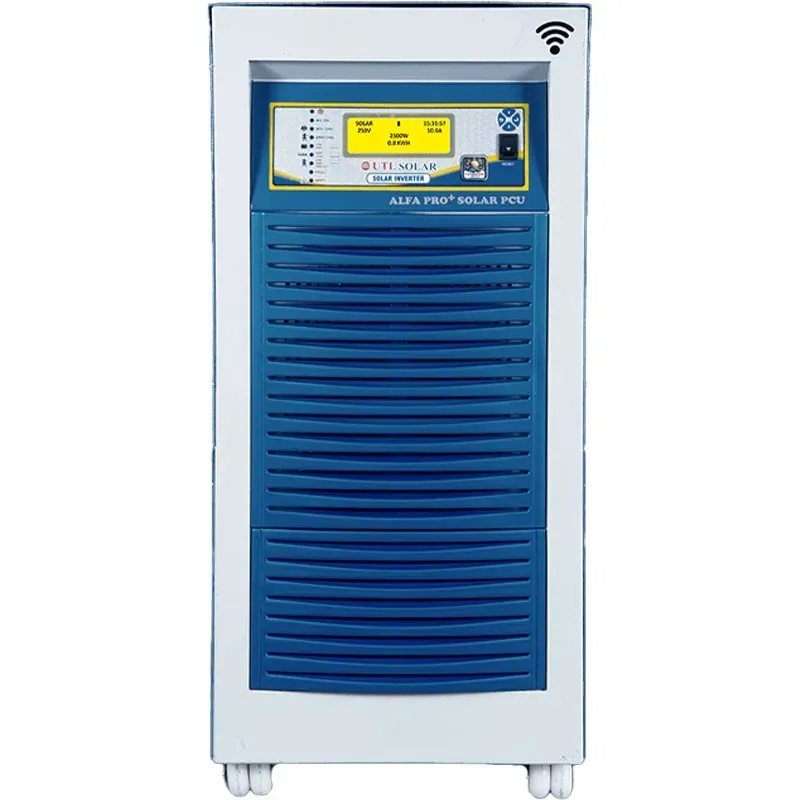

UTL 7.5 kVA APP8120 Alfa Pro+ Solar Inverter 120 V Solar Inverter For Home, Office & Shops
In Stock
₹98,009₹1,26,800-23% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | UTL |
| Weight (Approx.) | 85 kg |
| System Rating | 7.5KVA |
| Operating DC Voltage | 120V |
| Input Voltage Range (Min-Max) | 200 - 550 VDC |
| Maximum PV Power Recom | 7.5KW |
| Solar Charge Controller Rating | 60A |
| Switching Element | IGBT |
| Controller | DSP |
| Type of Charger | MPPT |
| Efficiency | 95% |
| Battery Low Buzzer(V) | Batt. Low Cut +0.2 |
| Battery Low Cut(V) | 10-11.7 |
| Battery High Cut (V) | SPV Present-SPV CHG. REF +1V for 15Sec, SPV CHG. REF +1.5V for 2Sec |
| Battery Charging Voltage by SPV(V) | 13.5 - 16 |
| Battery Charging Current by SPV(A) | 12 - 60 |
| Battery Charging Voltage by Grid(V) | 13 - 15 |
| Battery Charging Current by Grid(A) | 6 - 15 |
| Grid Charging | Enable |
| IT Load | Disable |
| Operating Mode | Smart |
| Output Voltage Low(V) | 170-190 |
| Output Voltage High(V) | 250-260 |
| Input Source | Grid |
| Grid Disconnect (Solar Available) | @Solar Charging Voltage Ref Or The Solar Charging Current Ref. For 2 Minutes |
| Grid Reconnect (PCU Mode/ Smart Mode)(V) | 11 - 12 |
| Control | PWM |
| Nominal Output Voltage(VAC) | 220 |
| Output Supply Phase | 1Phase, 3Wire |
| Output Waveform | Pure Sine Wave |
| Nominal Frequency(Hz) | 50.0 |
| Load Current(A) | 27 |
| Voltage Regulation(%) | 1 |
| Output Voltage Distortion with 100% Linear Load(%) | <3 |
| Operating Temperature(C) | 0-50 |
| Max Relative Humidity@25°C(non condensing)% | 95 |
| Degree of Protection | IP21 |
| Data Loggin | 30 Day Data Storage |
| Inbuilt Solar Charge Controller | Ensures up to 30% more energy generation from solar panels compared to PWM controllers |
| Low Voltage Charging | Can charge the battery from the mains grid even with a low input voltage |
| Dual Priority Modes | Selectable Hybrid and Smart modes for maximizing solar energy usage and saving money |
| Battery Health | Multi-stage (Bulk, Absorption, Float) battery charging with auto-equalization feature to maintain long battery life |
| Load Compatibility | Compatible with IT loads |
| Flexibility | Can operate without solar panels, functioning as a regular inverter initially |
| Protection | Comprehensive electronic protections |
| Display | LED display for operational status and fault indications |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About UTL 7.5 kVA APP8120 Alfa Pro+ Solar Inverter 120 V Solar Inverter For Home, Office & Shops
UTL 7.5 kVA APP8120 Alfa Pro+ Solar Inverter 120 V Solar Inverter For Home, Office & Shops is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by UTL. Key specifications include weight (approx.) 85 kg, system rating 7.5KVA, operating dc voltage 120V, input voltage range (min-max) 200 - 550 VDC, maximum pv power recom 7.5KW. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
UTL 7.5 kVA APP8120 Alfa Pro+ Solar Inverter 120 V Solar Inverter For Home, Office & Shops specifications
| Weight (Approx.) | 85 kg |
|---|---|
| System Rating | 7.5KVA |
| Operating DC Voltage | 120V |
| Input Voltage Range (Min-Max) | 200 - 550 VDC |
| Maximum PV Power Recom | 7.5KW |
| Solar Charge Controller Rating | 60A |
| Switching Element | IGBT |
| Controller | DSP |
| Type of Charger | MPPT |
| Efficiency | 95% |
| Battery Low Buzzer(V) | Batt. Low Cut +0.2 |
| Battery Low Cut(V) | 10-11.7 |
FAQs related to UTL 7.5 kVA APP8120 Alfa Pro+ Solar Inverter 120 V Solar Inverter For Home, Office & Shops
Are spare parts or accessories for UTL 7.5 kVA APP8120 Alfa Pro+ Solar Inverter 120 V Solar Inverter For Home, Office & Shops also available on ToolHaat?
+
Many UTL 7.5 kVA APP8120 Alfa Pro+ Solar Inverter 120 V Solar Inverter For Home, Office & Shops categories on ToolHaat also list compatible accessories and spare parts separately — check related subcategories or use search to find parts matching your specific model.
Can I compare different brands and price points for UTL 7.5 kVA APP8120 Alfa Pro+ Solar Inverter 120 V Solar Inverter For Home, Office & Shops before buying?
+
Yes — ToolHaat lists UTL 7.5 kVA APP8120 Alfa Pro+ Solar Inverter 120 V Solar Inverter For Home, Office & Shops from multiple vendors and brands at different price points and specifications, so you can compare before committing to a bulk purchase.
Can UTL 7.5 kVA APP8120 Alfa Pro+ Solar Inverter 120 V Solar Inverter For Home, Office & Shops orders be timed to arrive before the sowing or harvest season?
+
Yes — for seasonal equipment needs, place your UTL 7.5 kVA APP8120 Alfa Pro+ Solar Inverter 120 V Solar Inverter For Home, Office & Shops order with enough lead time before peak season, or contact our sales team to confirm stock availability and delivery timing ahead of sowing or harvest windows.
What is the bulk pricing structure for UTL 7.5 kVA APP8120 Alfa Pro+ Solar Inverter 120 V Solar Inverter For Home, Office & Shops?
+
UTL 7.5 kVA APP8120 Alfa Pro+ Solar Inverter 120 V Solar Inverter For Home, Office & Shops on ToolHaat uses tiered bulk pricing — cost per unit drops as order quantity rises, shown on the product page. For dealer-volume or distributor-level quantities, an RFQ gets you a dedicated quote.
Is a GST invoice provided for UTL 7.5 kVA APP8120 Alfa Pro+ Solar Inverter 120 V Solar Inverter For Home, Office & Shops purchases?
+
Yes, every UTL 7.5 kVA APP8120 Alfa Pro+ Solar Inverter 120 V Solar Inverter For Home, Office & Shops order comes with an automatically generated GST invoice, useful for input tax credit claims and standard farm-business accounting.
