UJALA · SKU: thagri9769

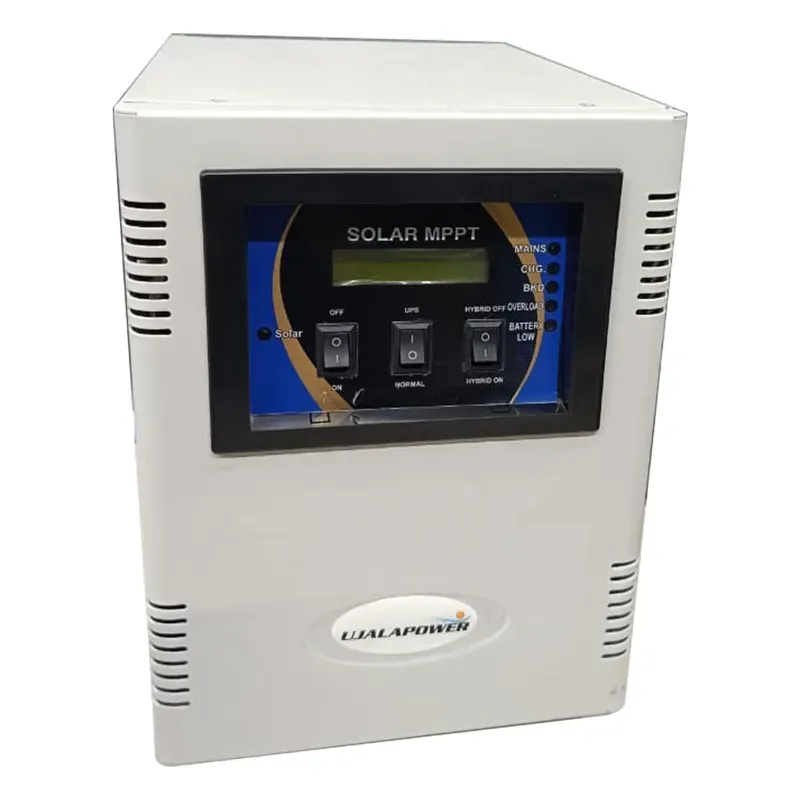

UJALA 2.5 kVA Hybrid Solar PCU, 24 V Sine Wave PWM Compact Inverter Designed for Residential Use
In Stock
₹12,276₹17,463-30% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | UJALA |
| Weight (Approx.) | 20 kg |
| Display Type | LCD |
| Capacity | 2500VA |
| Operation DC Voltage | 24 |
| Switching Element | Mosfet |
| Charger Topology | Boost Mosfet |
| Nominal Grid Voltage | 230V |
| Battery Low Buzzer | 21.2V+0.2V |
| Battery Low Cut | 21.2V +0.2V |
| Battery High Cut | 28.4V-0.2V |
| SPV Charging Current | Depends upon panel capacity |
| SPV Charging Voltage Boost | 29V+-02V |
| SPV Charging Voltage Float | 28.4+-0.2V |
| Grid-Battery Charging Voltage Boost | 28.4+-0.2V |
| Grid-Battery Charging Voltage Floot | 13.9V+-0.2V |
| Grid-Battery Charging Current | 12AMP-2AMP |
| Grid Reconnect @ Battery Voltage | 11.6V |
| Grid Low Cut Voltage | 170V-10V |
| Grid Low Cut Recovery | 180+-10V |
| Grid Hight cut Voltage | 255V+-1OV |
| Grid High Cut Recovery | 255v+-10v |
| Change Over (Battery to Mains) | <5ms |
| Change Over (Mains to Battery) | Mode Enabled/ Disabled : <10ms/<60ms |
| Operating Mode | POU/Hybrid |
| Output Phase | 1 Phase, 3 Wire |
| Nominal Output Voltage | 220-10V |
| Nominal Frequency | 50-1% |
| Load Powers Factor | 0.8 |
| Output waveform | Sinewave |
| Typical Waveform | >80% |
| Voltage Harmonic | <3% (Line Load) |
| Overload Capacity (IT Load Enable)% | 100-110:10 Min 150-200:2 sec |
| Overload Capacity (IT Load Disable) % | 100-120(3times auto reset ): 60sec 250-350:1sec |
| Protection | Overload, Battery Low, Battery High, Output Short Circuit, battery Reverse, Over Heat, SPV high |
| Display (LCD) | Battery Voltage, Grid Voltage, Grid Frequency, Load %, Battery Graph, Overheat, SPV Current |
| Controller | Yes |
| Type of Charger | PWM |
| Efficiency | >90% |
| Input Voltage Range (Min-Max) Voc | 15-45V |
| Maximum PV Power Recommended | 1600 WATT |
| Cooling | Fan |
| Max. Relative Humidity @ 25°C (Non Condensing) | 90% |
| Battery Support | Compatible with various battery types, such as SMF (Sealed Maintenance-Free), Gel, and Tubular batteries. |
| Waveform | Pure sine wave output ensures safe and stable power for sensitive electronic devices. |
| Priority Selection | Allows users to set priorities for power sources (e.g., solar, battery, grid) to optimize energy usage and cost savings. |
| Display | Often features an LCD display for monitoring system status and performance. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About UJALA 2.5 kVA Hybrid Solar PCU, 24 V Sine Wave PWM Compact Inverter Designed for Residential Use
UJALA 2.5 kVA Hybrid Solar PCU, 24 V Sine Wave PWM Compact Inverter Designed for Residential Use is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by UJALA. Key specifications include weight (approx.) 20 kg, display type LCD, capacity 2500VA, operation dc voltage 24, switching element Mosfet. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
UJALA 2.5 kVA Hybrid Solar PCU, 24 V Sine Wave PWM Compact Inverter Designed for Residential Use specifications
| Weight (Approx.) | 20 kg |
|---|---|
| Display Type | LCD |
| Capacity | 2500VA |
| Operation DC Voltage | 24 |
| Switching Element | Mosfet |
| Charger Topology | Boost Mosfet |
| Nominal Grid Voltage | 230V |
| Battery Low Buzzer | 21.2V+0.2V |
| Battery Low Cut | 21.2V +0.2V |
| Battery High Cut | 28.4V-0.2V |
| SPV Charging Current | Depends upon panel capacity |
| SPV Charging Voltage Boost | 29V+-02V |
FAQs related to UJALA 2.5 kVA Hybrid Solar PCU, 24 V Sine Wave PWM Compact Inverter Designed for Residential Use
Is UJALA 2.5 kVA Hybrid Solar PCU, 24 V Sine Wave PWM Compact Inverter Designed for Residential Use suitable for both small farms and large agricultural operations?
+
ToolHaat lists UJALA 2.5 kVA Hybrid Solar PCU, 24 V Sine Wave PWM Compact Inverter Designed for Residential Use across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
What is the bulk pricing structure for UJALA 2.5 kVA Hybrid Solar PCU, 24 V Sine Wave PWM Compact Inverter Designed for Residential Use?
+
UJALA 2.5 kVA Hybrid Solar PCU, 24 V Sine Wave PWM Compact Inverter Designed for Residential Use on ToolHaat uses tiered bulk pricing — cost per unit drops as order quantity rises, shown on the product page. For dealer-volume or distributor-level quantities, an RFQ gets you a dedicated quote.
Does UJALA 2.5 kVA Hybrid Solar PCU, 24 V Sine Wave PWM Compact Inverter Designed for Residential Use come with a warranty or after-sales support?
+
Warranty terms for UJALA 2.5 kVA Hybrid Solar PCU, 24 V Sine Wave PWM Compact Inverter Designed for Residential Use vary by vendor and brand — check the product listing for specific coverage. ToolHaat support can help connect you with the vendor for warranty claims or service queries after purchase.
Can I compare different brands and price points for UJALA 2.5 kVA Hybrid Solar PCU, 24 V Sine Wave PWM Compact Inverter Designed for Residential Use before buying?
+
Yes — ToolHaat lists UJALA 2.5 kVA Hybrid Solar PCU, 24 V Sine Wave PWM Compact Inverter Designed for Residential Use from multiple vendors and brands at different price points and specifications, so you can compare before committing to a bulk purchase.
Can dealers or distributors get a custom quote for UJALA 2.5 kVA Hybrid Solar PCU, 24 V Sine Wave PWM Compact Inverter Designed for Residential Use in large volumes?
+
Yes — use the RFQ feature for dealer or distributor-level UJALA 2.5 kVA Hybrid Solar PCU, 24 V Sine Wave PWM Compact Inverter Designed for Residential Use orders. Our sales team provides a dedicated quote and delivery plan for bulk agricultural equipment purchases.
