UJALA · SKU: thagri3526

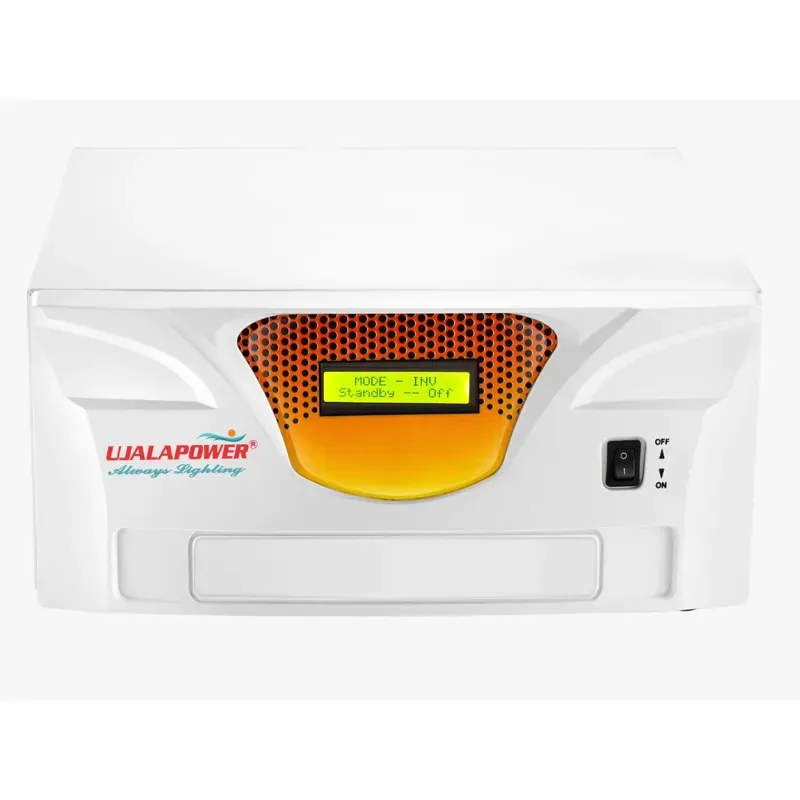

UJALA Hybrid Solar 1750VA 24 V Sine Wave PWM Compact Inverter Designed for Residential Use
In Stock
₹9,791₹13,944-30% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Max. Relative Humidity @ 25°C (Non Condensing) | 90% |
| Brand | UJALA |
| Weight (Approx.) | 15 kg |
| Model | Solar 1750 |
| Capacity | 1750va |
| Operation DC Voltage | 24 |
| Switching Element | Mosfet |
| Charger Topology | Boost mosfet |
| Nominal Grid Voltage | 230V |
| Battery Low Buzzer | 21.2V+0.2V |
| Battery Low Cut | 21.2V+0.2V |
| Battery High Cut | 28.4V-0.2V |
| SPV Charging Current | Depends upon panel capacity |
| SPV Charging Voltage Boost | 29V--0.2V |
| SPV Charging Voltage Float | 28.4+-0.2V |
| Grid-Battery Charging Voltage Boost | 28.4-0.2V |
| Grid-Battery Charging Voltage Floot | 13.9V--0.2V |
| Grid-Battery Charging Current | 12AMP-2AMP |
| Grid Reconnect @ Battery Voltage | 11.6V |
| Grid Low Cut Voltage | 170V-10V |
| Grid Low Cut Recovery | 180+-10V |
| Grid Hight cut Voltage | 265V+-1OV |
| Grid High Cut Recovery | 255v+-10v |
| Change Over (Battery to Mains) | <5ms |
| Change Over (Mains to Battery) | Mode Enabled/ Disabled : <10ms/<60ms |
| Operating Mode | POU/Hydrid |
| Output Phase | 1 Phase, 3 Wire |
| Nominal Output Voltage | 220-10V |
| Nominal Frequency | 50-1% |
| Load Powers Factor | 0.8 |
| Output waveform | Sinewave |
| Typical Waveform | >80% |
| Voltage Harmonic | <3% (Line Load) |
| Overload Capacity (IT Load Enable)% | 100-110:10 Min 150-200:2 sec |
| Overload Capacity (IT Load Disable) % | 100-120(3times auto reset ): 60sec 250-350:1sec |
| Protection | Overload, Battery Low, Battery High, Output Short Circuit, battery Reverse, Over Heat, SPV high |
| Display (LCD) | Battery Voltage, Grid Voltage, Grid Frequency, Load %, Battery Graph, Overheat, SPV Current |
| Controller | Yes |
| Type of Charger | PWM |
| Efficiency | >90% |
| Input Voltage Range (Min-Max) Voc | 15-45V |
| Maximum PV Power Recommended | 1600 WATT |
| Cooling | Fan |
| Type | It is a pure sine wave inverter, ensuring safe and stable power output for sensitive electronic devices. |
| Voltage | Operates on a 24V system, compatible with standard inverter batteries. |
| Design | Compact and lightweight, making it ideal for home use |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About UJALA Hybrid Solar 1750VA 24 V Sine Wave PWM Compact Inverter Designed for Residential Use
UJALA Hybrid Solar 1750VA 24 V Sine Wave PWM Compact Inverter Designed for Residential Use is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by UJALA. Key specifications include max. relative humidity @ 25â°c (non condensing) 90%, weight (approx.) 15 kg, capacity 1750va, operation dc voltage 24, switching element Mosfet. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
UJALA Hybrid Solar 1750VA 24 V Sine Wave PWM Compact Inverter Designed for Residential Use specifications
| Max. Relative Humidity @ 25°C (Non Condensing) | 90% |
|---|---|
| Weight (Approx.) | 15 kg |
| Capacity | 1750va |
| Operation DC Voltage | 24 |
| Switching Element | Mosfet |
| Charger Topology | Boost mosfet |
| Nominal Grid Voltage | 230V |
| Battery Low Buzzer | 21.2V+0.2V |
| Battery Low Cut | 21.2V+0.2V |
| Battery High Cut | 28.4V-0.2V |
| SPV Charging Current | Depends upon panel capacity |
| SPV Charging Voltage Boost | 29V--0.2V |
FAQs related to UJALA Hybrid Solar 1750VA 24 V Sine Wave PWM Compact Inverter Designed for Residential Use
Can UJALA Hybrid Solar 1750VA 24 V Sine Wave PWM Compact Inverter Designed for Residential Use orders be timed to arrive before the sowing or harvest season?
+
Yes — for seasonal equipment needs, place your UJALA Hybrid Solar 1750VA 24 V Sine Wave PWM Compact Inverter Designed for Residential Use order with enough lead time before peak season, or contact our sales team to confirm stock availability and delivery timing ahead of sowing or harvest windows.
Is a GST invoice provided for UJALA Hybrid Solar 1750VA 24 V Sine Wave PWM Compact Inverter Designed for Residential Use purchases?
+
Yes, every UJALA Hybrid Solar 1750VA 24 V Sine Wave PWM Compact Inverter Designed for Residential Use order comes with an automatically generated GST invoice, useful for input tax credit claims and standard farm-business accounting.
What if UJALA Hybrid Solar 1750VA 24 V Sine Wave PWM Compact Inverter Designed for Residential Use arrives damaged or doesn’t match the listed specifications?
+
Contact ToolHaat support with your order ID and photos if UJALA Hybrid Solar 1750VA 24 V Sine Wave PWM Compact Inverter Designed for Residential Use arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.
Does UJALA Hybrid Solar 1750VA 24 V Sine Wave PWM Compact Inverter Designed for Residential Use come with a warranty or after-sales support?
+
Warranty terms for UJALA Hybrid Solar 1750VA 24 V Sine Wave PWM Compact Inverter Designed for Residential Use vary by vendor and brand — check the product listing for specific coverage. ToolHaat support can help connect you with the vendor for warranty claims or service queries after purchase.
Are spare parts or accessories for UJALA Hybrid Solar 1750VA 24 V Sine Wave PWM Compact Inverter Designed for Residential Use also available on ToolHaat?
+
Many UJALA Hybrid Solar 1750VA 24 V Sine Wave PWM Compact Inverter Designed for Residential Use categories on ToolHaat also list compatible accessories and spare parts separately — check related subcategories or use search to find parts matching your specific model.
