UJALA · SKU: thagri3525

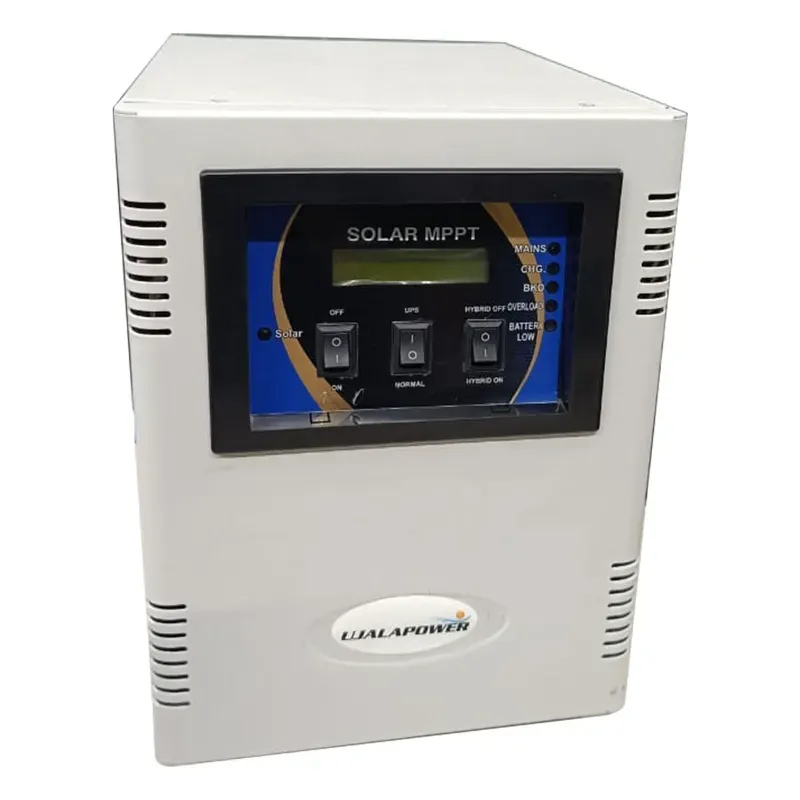

UJALA Hybrid Solar 1000,12 V (Sine Wave MPPT) Compact Inverter Designed for residential use
In Stock
₹11,375₹16,311-30% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Boost Charging Volt by SPV (TUB) Volts | 14.5/Battery +/-2% |
| Brand | UJALA |
| Weight (Approx.) | 18 kg |
| Model | Solar 1000 |
| Capacity | 1000va |
| Voltage | 12v |
| SPV Open Circuit Voltage Range (Min-Max) | 18-45 v |
| Max SPV Power | 1 KW |
| Compatible SPV Panels | 36/60/72 Cell |
| Switching Element | IGBT Module |
| Controller | DSP |
| Efficiency | >95% |
| Battery Charging Stages | 5 (Softstart, Boost, Absorption, Float, Equalize) |
| Low Cut Off Volts | 10.5/Battery +/-2% |
| Low Cut off Recovery Volts | 11.5/Battery +/-2% |
| Low Buzzer Volts | 10.7/Battery+/-2% |
| High Cut Off Volts | 15.5/Battery +/-2% |
| High Cut off Recovery Volts | 15.0/Battery +/-2% |
| Boost Charging Volt by Grid (TUB) Amps | 14.0/Battery +/-2% |
| Charging Current by Grid % | 10A +/-2% |
| No Load Battery Current | 0.02 |
| Output No Load (V) | 230 +/-2% |
| Output Frequency (Hz) | 50 +/-2c |
| Amp | 3.5A |
| Watts | 800W |
| Output Low Retry | 1 Time |
| Output Short Circuit | 1 Time |
| No of Phase | 1 Phase-3Wire PN.E. |
| Voltage Range (Inverter Mode) V | 100-280 +/-2% |
| Voltage Range (UPS Mode) V | 175-255 +/-2% |
| Frequency Range Hz | 45-55 +/-2% |
| Alphanumeric | 16x2 LCD |
| Output (Inverter) | Voltage, Current, Power & Frequency |
| Input (Grid) | Voltage and Frequency |
| Battery | Voltage, Current |
| Status/Faults | Inverter Status, Mains Status, Charger Status, Solar Status & Battery Status |
| Output Voltage | 230 +/-2% |
| Phase | 1 Phase-3Wire P.N.E |
| Output Waveform | Digitally Filtered Pure Sine Wave |
| Frequency | 50+/-2 Hz |
| Changeover (Mains to Inverter) | <10ms |
| Output Power Factor | 0.8 Pf |
| Overload Retry | 3 Times |
| Switches | System ON/OFF, Mode Selection Hybrid/PCU/Smart INV/UPS Selection |
| Indications (LED) | Inverter On, Mains in Range, Battery Low/High, Charger On, Overload Faults |
| Alarm (Audible) | Battery Low, Overload, Charger On, Inverter On, Solar Charger On |
| Protection | Overload, Short Circuit Protection, Over Voltage, SPV Surge & Transient protection (MOV Varistors) Reverse Polarity of Battery, Over temperature protection, Under Voltage & Over Voltage Protection |
| Cooling | Forced Air Cooling (Temp Controlled |
| Communication | Remote Monitoring System (Over GPRS/BLE & WiFi) or R5232 |
| Operating Temp | 0-50 C |
| Operating Humidity | 95 % |
| Protection Class | IP20 |
| Dimension (L x W x H) | 355 x 330 x 205 mm |
| Type | It is a pure sine wave inverter, ensuring safe and stable power output for sensitive electronic devices. |
| Design | Compact and lightweight, making it ideal for home use |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About UJALA Hybrid Solar 1000,12 V (Sine Wave MPPT) Compact Inverter Designed for residential use
UJALA Hybrid Solar 1000,12 V (Sine Wave MPPT) Compact Inverter Designed for residential use is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by UJALA. Key specifications include boost charging volt by spv (tub) volts 14.5/Battery +/-2%, weight (approx.) 18 kg, capacity 1000va, voltage 12v, spv open circuit voltage range (min-max) 18-45 v. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
UJALA Hybrid Solar 1000,12 V (Sine Wave MPPT) Compact Inverter Designed for residential use specifications
| Boost Charging Volt by SPV (TUB) Volts | 14.5/Battery +/-2% |
|---|---|
| Weight (Approx.) | 18 kg |
| Capacity | 1000va |
| Voltage | 12v |
| SPV Open Circuit Voltage Range (Min-Max) | 18-45 v |
| Max SPV Power | 1 KW |
| Compatible SPV Panels | 36/60/72 Cell |
| Switching Element | IGBT Module |
| Controller | DSP |
| Efficiency | >95% |
| Battery Charging Stages | 5 (Softstart, Boost, Absorption, Float, Equalize) |
| Low Cut Off Volts | 10.5/Battery +/-2% |
FAQs related to UJALA Hybrid Solar 1000,12 V (Sine Wave MPPT) Compact Inverter Designed for residential use
Is UJALA Hybrid Solar 1000,12 V (Sine Wave MPPT) Compact Inverter Designed for residential use suitable for both small farms and large agricultural operations?
+
ToolHaat lists UJALA Hybrid Solar 1000,12 V (Sine Wave MPPT) Compact Inverter Designed for residential use across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
Does UJALA Hybrid Solar 1000,12 V (Sine Wave MPPT) Compact Inverter Designed for residential use come with a warranty or after-sales support?
+
Warranty terms for UJALA Hybrid Solar 1000,12 V (Sine Wave MPPT) Compact Inverter Designed for residential use vary by vendor and brand — check the product listing for specific coverage. ToolHaat support can help connect you with the vendor for warranty claims or service queries after purchase.
How long does delivery take for UJALA Hybrid Solar 1000,12 V (Sine Wave MPPT) Compact Inverter Designed for residential use orders, including to rural areas?
+
Delivery timelines for UJALA Hybrid Solar 1000,12 V (Sine Wave MPPT) Compact Inverter Designed for residential use are shown at checkout based on your pincode. ToolHaat delivers pan-India, including rural and semi-urban locations, though larger equipment may have a longer transit window than smaller accessories.
Is a GST invoice provided for UJALA Hybrid Solar 1000,12 V (Sine Wave MPPT) Compact Inverter Designed for residential use purchases?
+
Yes, every UJALA Hybrid Solar 1000,12 V (Sine Wave MPPT) Compact Inverter Designed for residential use order comes with an automatically generated GST invoice, useful for input tax credit claims and standard farm-business accounting.
What if UJALA Hybrid Solar 1000,12 V (Sine Wave MPPT) Compact Inverter Designed for residential use arrives damaged or doesn’t match the listed specifications?
+
Contact ToolHaat support with your order ID and photos if UJALA Hybrid Solar 1000,12 V (Sine Wave MPPT) Compact Inverter Designed for residential use arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.
