SMARTEN · SKU: thagri7062

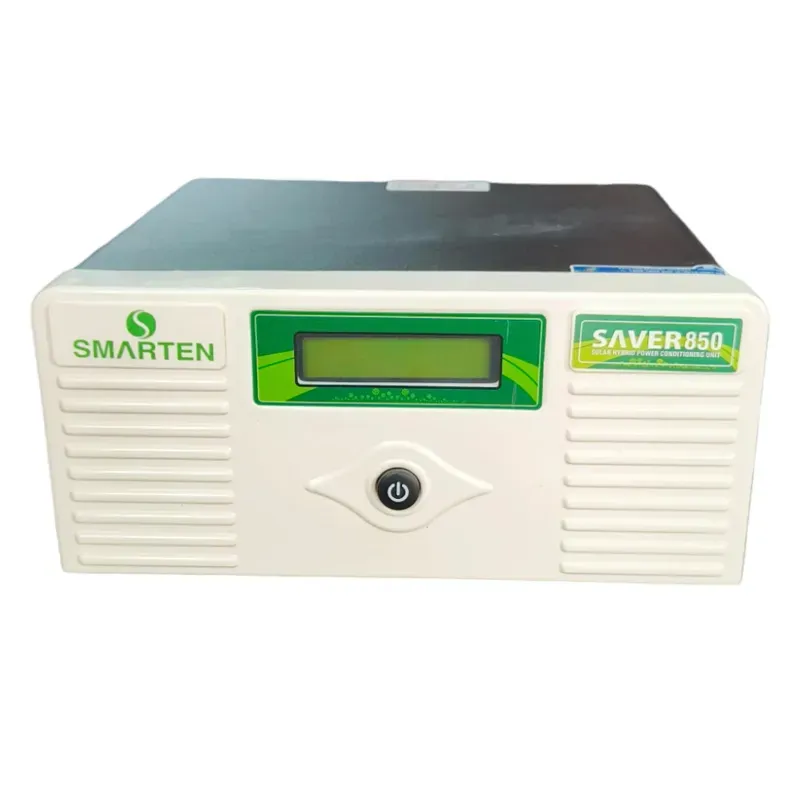

SMARTEN 850 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup
In Stock
₹6,929₹9,800-29% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | SMARTEN |
| Weight (Approx.) | 12 kg |
| Model Name | 850VA |
| Mains AC low cut UPS mode | 175VAC ± 10VAC |
| Mains AC low cut recovery UPS mode | 185VAC ± 10VAC |
| Mains AC high cut UPS mode | 265VAC ± 10VAC |
| Mains AC high cut recovery UPS mode | 255VAC ± 10VAC |
| Mains AC low cut WUPS mode | 90VAC ± 10VAC |
| Mains AC low cut recovery W.UPS mode | 110VAC ± 10VAC |
| Mains AC high cut WUPS mode | 295VAC ± 10VAC |
| Mains AC high cut recovery W.UPS mode | 285VAC ± 10VAC |
| Input Frequency Range | 40Hz to 60Hz |
| Voltage Output in Mains Mode | Same as input |
| Frequency Output in Mains Mode | Same as input |
| Battery Type | LA / Tubular / SMF |
| DC Input Voltage | 12V |
| Battery Quantity 12V 100Ah to 350Ah | 1 |
| Float Charging Voltage | 13.7V±0.2V |
| Bulk Absorpon Voltage | 14.8V±0.2V |
| Boost Charging Voltage for LA Battery | 14.0V±0.2V |
| Boost Charging Voltage for Tubular and SMF Battery | 14.5V±0.2V |
| Battery Deep Discharge Recovery | Yes (Independent Charger to Recover Deep Discharge Battery) |
| Charging Current at Grid Priority/Battery Priority | 15A ± 3A |
| Output voltage | 220VAC +5% -10% |
| Output frequency | 50Hz ± 0.2 Hz |
| Output waveform | Pure Sine Wave ≤ 5% THD |
| No Load current | <1.8A |
| Discharging current @ full load | 40A ± 2A |
| Low Battery Warning | 10.8±0.2V |
| Low Battery Cut | 10.4V±0.2V |
| Change over time UPS mode | < 10msec |
| Change over time WUPS mode | < 25msec |
| Phase to Phase Voltage Protection | Mains Mode |
| Back feed protection | Mains apply in output side@<295V |
| Over Load system Shutdown | > 130% after approx >180sec, and > 300% system will be shutdown approx < 20 Sec. |
| Short Circuit (A PK-PK) | Yes, After 3 tries system will be shutdown (System reset from front switch) |
| Reverse Battery | DC Fuse Burn |
| SCC Reverse Battery | DC Fuse Burn |
| Short Circuit in Mains Mode | Mains Fuse will blown |
| Battery Over Charge | Yes, Provided |
| High PV Voltage | 28V± 2V |
| Reverse PV Connected | Yes, Provided |
| Over Charge Protection | Yes, Provided |
| Over Current Protection PV | Yes, Provided |
| Solar Charge Controller type | PWM type |
| Max Panel wattage can be connected | 600W |
| Max PV current | 25A |
| Reverse PV protection | Yes provided |
| Reverse current flow to PV | Yes provided |
| Sharing of current when PV and Grid Both are available | If PV power is not sufficient enough to charge the battery, system will start sharing battery charging from PV and grid. |
| Option for Grid and Battery priority | Yes, provided, user can set priority for Battery or Grid. Hence user can set system in electricity bill saving. |
| DOD definion (Depth of Discharge) | Mains will be connect when battery voltage reach at defined value of the battery voltage. |
| Solar-First Priority System | Maximizes solar energy usage during daylight hours before drawing grid power, dropping recurring utility costs. |
| Pure Sine Wave Output | Ensures whisper-quiet motor operation and provides safe power to delicate micro-processor devices. |
| Integrated 25A Solar Charger | Efficiently handles solar PV array inputs to charge 12V batteries rapidly even under partial shading. |
| Wide AC Input Range | Recharges batteries reliably under severe low-voltage grid conditions without unnecessary battery drain. |
| Light Industrial Workstations | Powers testing equipment, small bench tools, security cameras, and control panels. |
| Residential Homes | Ideal for running LED lighting, ceiling fans, smart TVs, laptops, and Wi-Fi routers during blackouts. |
| Retail Outlets & Kiosks | Keeps POS billing machines, LED displays, and credit card terminals online continuously. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About SMARTEN 850 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup
SMARTEN 850 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by SMARTEN. Key specifications include weight (approx.) 12 kg, model name 850VA, mains ac low cut ups mode 175VAC ± 10VAC, mains ac low cut recovery ups mode 185VAC ± 10VAC, mains ac high cut ups mode 265VAC ± 10VAC. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
SMARTEN 850 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup specifications
| Weight (Approx.) | 12 kg |
|---|---|
| Model Name | 850VA |
| Mains AC low cut UPS mode | 175VAC ± 10VAC |
| Mains AC low cut recovery UPS mode | 185VAC ± 10VAC |
| Mains AC high cut UPS mode | 265VAC ± 10VAC |
| Mains AC high cut recovery UPS mode | 255VAC ± 10VAC |
| Mains AC low cut WUPS mode | 90VAC ± 10VAC |
| Mains AC low cut recovery W.UPS mode | 110VAC ± 10VAC |
| Mains AC high cut WUPS mode | 295VAC ± 10VAC |
| Mains AC high cut recovery W.UPS mode | 285VAC ± 10VAC |
| Input Frequency Range | 40Hz to 60Hz |
| Voltage Output in Mains Mode | Same as input |
FAQs related to SMARTEN 850 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup
Is SMARTEN 850 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup suitable for both small farms and large agricultural operations?
+
ToolHaat lists SMARTEN 850 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
Can I compare different brands and price points for SMARTEN 850 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup before buying?
+
Yes — ToolHaat lists SMARTEN 850 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup from multiple vendors and brands at different price points and specifications, so you can compare before committing to a bulk purchase.
Can dealers or distributors get a custom quote for SMARTEN 850 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup in large volumes?
+
Yes — use the RFQ feature for dealer or distributor-level SMARTEN 850 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup orders. Our sales team provides a dedicated quote and delivery plan for bulk agricultural equipment purchases.
Are spare parts or accessories for SMARTEN 850 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup also available on ToolHaat?
+
Many SMARTEN 850 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup categories on ToolHaat also list compatible accessories and spare parts separately — check related subcategories or use search to find parts matching your specific model.
How long does delivery take for SMARTEN 850 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup orders, including to rural areas?
+
Delivery timelines for SMARTEN 850 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup are shown at checkout based on your pincode. ToolHaat delivers pan-India, including rural and semi-urban locations, though larger equipment may have a longer transit window than smaller accessories.
