SMARTEN · SKU: thagri10507

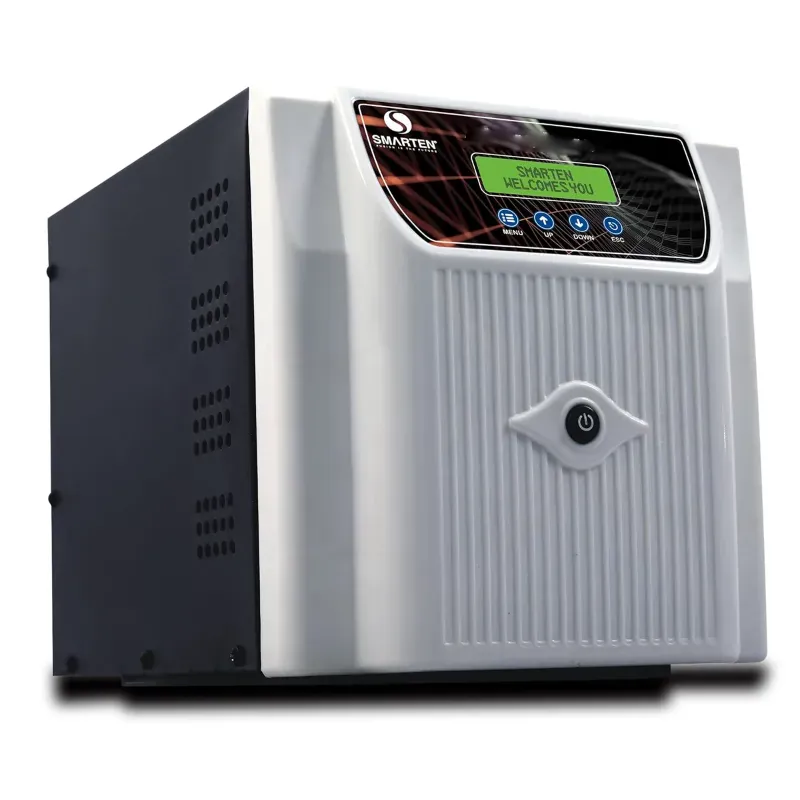

SMARTEN 1700 Sine Wave Solar Inverter 12VDC 50A SCC for Home and Office Power Backup Systems
In Stock
₹14,156₹20,100-30% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | SMARTEN |
| Weight (Approx.) | 13 kg |
| Model Name | 1700VA |
| Mains AC low cut UPS mode | 175VAC ± 10VAC |
| Mains AC low cut recovery UPS mode | 185VAC ± 10VAC |
| Mains AC high cut UPS mode | 265VAC ± 10VAC |
| Mains AC high cut recovery UPS mode | 255VAC ± 10VAC |
| Mains AC low cut WUPS mode | 90VAC ± 10VAC |
| Mains AC low cut recovery W.UPS mode | 110VAC ± 10VAC |
| Mains AC high cut WUPS mode | 295VAC ± 10VAC |
| Mains AC high cut recovery W.UPS mode | 285VAC ± 10VAC |
| Input Frequency Range | 40Hz to 60Hz |
| Voltage Output in Mains Mode | Same as input |
| Frequency Output in Mains Mode | Same as input |
| Battery Type | LA / Tubular / SMF |
| DC Input Voltage | 12V |
| Battery Quantity 12V 100Ah to 350Ah | 1 |
| Float Charging Voltage | 13.7V±0.2V |
| Bulk Absorpon Voltage | 14.8V±0.2V |
| Boost Charging Voltage for LA Battery | 14.0V±0.2V |
| Boost Charging Voltage for Tubular and SMF Battery | 14.5V±0.2V |
| Battery Deep Discharge Recovery | Yes (Independent Charger to Recover Deep Discharge Battery) |
| Charging Current at Grid Priority/Battery Priority | 15A ± 3A |
| Output voltage | 220VAC +5% -10% |
| Output frequency | 50Hz ± 0.2 Hz |
| Output waveform | Pure Sine Wave ≤ 5% THD |
| No Load current | <1.8A |
| Discharging current @ full load | 90 ±3A |
| Low Battery Warning | 10.8±0.2V |
| Low Battery Cut | 10.4V±0.2V |
| Change over time UPS mode | < 10msec |
| Change over time WUPS mode | < 25msec |
| Phase to Phase Voltage Protection | Mains Mode |
| Back feed protection | Mains apply in output side@<295V |
| Over Load system Shutdown | > 130% after approx >180sec, and > 300% system will be shutdown approx < 20 Sec. |
| Short Circuit (A PK-PK) | Yes, After 3 tries system will be shutdown (System reset from front switch) |
| Reverse Battery | DC Fuse Burn |
| SCC Reverse Battery | DC Fuse Burn |
| Short Circuit in Mains Mode | Mains Fuse will blown |
| Battery Over Charge | Yes, Provided |
| High PV Voltage | 28V± 2V |
| Reverse PV Connected | Yes, Provided |
| Over Charge Protection | Yes, Provided |
| Over Current Protection PV | Yes, Provided |
| Solar Charge Controller type | PWM type |
| Max Panel wattage can be connected | 1200W |
| Max PV current | 50A |
| Reverse PV protection | Yes provided |
| Reverse current flow to PV | Yes provided |
| Sharing of current when PV and Grid Both are available | If PV power is not sufficient enough to charge the battery, system will start sharing battery charging from PV and grid. |
| Option for Grid and Battery priority | Yes, provided, user can set priority for Battery or Grid. Hence user can set system in electricity bill saving. |
| DOD definion (Depth of Discharge) | Mains will be connect when battery voltage reach at defined value of the battery voltage. |
| 20% - if battery voltage is | 12.5v±0.2V |
| 30% - if battery voltage is | 12.0v±0.2V |
| 40% - if battery voltage is | 11.5v±0.2V |
| 50% - if battery voltage is | 11.0v±0.2V |
| Solar-First Energy Optimization | Smart internal logic consumes solar power first before drawing from the utility grid, dropping electricity bills. |
| High-Current 50A Solar Charger | Fast-charges single 12V batteries even on partially cloudy days using up to 50 A solar input current. |
| Wide Input Voltage Range | Works reliably in low-voltage grid areas, ensuring continuous battery charging under varying grid conditions. |
| Residential Homes | Ideal for running lights, ceiling fans, LED TVs, laptops, and refrigerators during power cuts. |
| Small Retail Shops | Keeps billing POS systems, security cameras, Wi-Fi routers, and office PCs functional 24/7. |
| Off-Grid Cabins & Rural setups | Provides reliable 1-battery solar backup in regions with frequent power outages. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About SMARTEN 1700 Sine Wave Solar Inverter 12VDC 50A SCC for Home and Office Power Backup Systems
SMARTEN 1700 Sine Wave Solar Inverter 12VDC 50A SCC for Home and Office Power Backup Systems is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by SMARTEN. Key specifications include weight (approx.) 13 kg, model name 1700VA, mains ac low cut ups mode 175VAC ± 10VAC, mains ac low cut recovery ups mode 185VAC ± 10VAC, mains ac high cut ups mode 265VAC ± 10VAC. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
SMARTEN 1700 Sine Wave Solar Inverter 12VDC 50A SCC for Home and Office Power Backup Systems specifications
| Weight (Approx.) | 13 kg |
|---|---|
| Model Name | 1700VA |
| Mains AC low cut UPS mode | 175VAC ± 10VAC |
| Mains AC low cut recovery UPS mode | 185VAC ± 10VAC |
| Mains AC high cut UPS mode | 265VAC ± 10VAC |
| Mains AC high cut recovery UPS mode | 255VAC ± 10VAC |
| Mains AC low cut WUPS mode | 90VAC ± 10VAC |
| Mains AC low cut recovery W.UPS mode | 110VAC ± 10VAC |
| Mains AC high cut WUPS mode | 295VAC ± 10VAC |
| Mains AC high cut recovery W.UPS mode | 285VAC ± 10VAC |
| Input Frequency Range | 40Hz to 60Hz |
| Voltage Output in Mains Mode | Same as input |
FAQs related to SMARTEN 1700 Sine Wave Solar Inverter 12VDC 50A SCC for Home and Office Power Backup Systems
Can SMARTEN 1700 Sine Wave Solar Inverter 12VDC 50A SCC for Home and Office Power Backup Systems orders be timed to arrive before the sowing or harvest season?
+
Yes — for seasonal equipment needs, place your SMARTEN 1700 Sine Wave Solar Inverter 12VDC 50A SCC for Home and Office Power Backup Systems order with enough lead time before peak season, or contact our sales team to confirm stock availability and delivery timing ahead of sowing or harvest windows.
Does SMARTEN 1700 Sine Wave Solar Inverter 12VDC 50A SCC for Home and Office Power Backup Systems come with a warranty or after-sales support?
+
Warranty terms for SMARTEN 1700 Sine Wave Solar Inverter 12VDC 50A SCC for Home and Office Power Backup Systems vary by vendor and brand — check the product listing for specific coverage. ToolHaat support can help connect you with the vendor for warranty claims or service queries after purchase.
Are spare parts or accessories for SMARTEN 1700 Sine Wave Solar Inverter 12VDC 50A SCC for Home and Office Power Backup Systems also available on ToolHaat?
+
Many SMARTEN 1700 Sine Wave Solar Inverter 12VDC 50A SCC for Home and Office Power Backup Systems categories on ToolHaat also list compatible accessories and spare parts separately — check related subcategories or use search to find parts matching your specific model.
Can I compare different brands and price points for SMARTEN 1700 Sine Wave Solar Inverter 12VDC 50A SCC for Home and Office Power Backup Systems before buying?
+
Yes — ToolHaat lists SMARTEN 1700 Sine Wave Solar Inverter 12VDC 50A SCC for Home and Office Power Backup Systems from multiple vendors and brands at different price points and specifications, so you can compare before committing to a bulk purchase.
Is SMARTEN 1700 Sine Wave Solar Inverter 12VDC 50A SCC for Home and Office Power Backup Systems suitable for both small farms and large agricultural operations?
+
ToolHaat lists SMARTEN 1700 Sine Wave Solar Inverter 12VDC 50A SCC for Home and Office Power Backup Systems across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
