SMARTEN · SKU: thagri1143

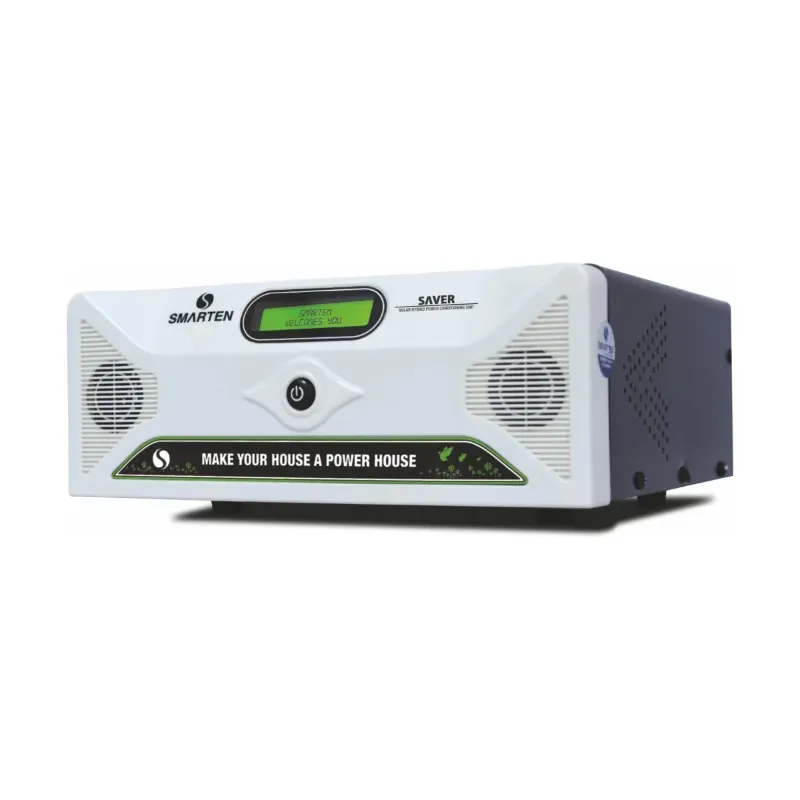

SMARTEN 1025 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup
In Stock
₹7,772₹11,000-29% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | SMARTEN |
| Weight (Approx.) | 12 kg |
| Mains AC low cut UPS mode | 175VAC ± 10VAC |
| Mains AC low cut recovery UPS mode | 185VAC ± 10VAC |
| Mains AC high cut UPS mode | 265VAC ± 10VAC |
| Mains AC high cut recovery UPS mode | 255VAC ± 10VAC |
| Mains AC low cut WUPS mode | 90VAC ± 10VAC |
| Mains AC low cut recovery W.UPS mode | 110VAC ± 10VAC |
| Mains AC high cut WUPS mode | 295VAC ± 10VAC |
| Mains AC high cut recovery W.UPS mode | 285VAC ± 10VAC |
| Input Frequency Range | 48Hz to 52Hz |
| Voltage Output in Mains Mode | Same as input |
| Frequency Output in Mains Mode | Same as input |
| Battery Type | LA / Tubular / SMF |
| DC Input Voltage | 12V |
| Battery Quantity 12V 100Ah to 220Ah | 1 |
| Float Charging Voltage | 13.7V±0.2V |
| Bulk Absorpon Voltage | 14.8±0.2V |
| Boost Charging Voltage for LA Battery | 14.0V±0.2V |
| Boost Charging Voltage for Tubular and SMF Battery | 14.5V±0.2V |
| Battery Deep Discharge Recovery | Yes (Independent Charger to Recover Deep Discharge Battery) |
| Charging Current at Grid Priority/Battery Priority | 15A±2A |
| Output voltage | 220VAC +5% -10% (until battery low alarm) |
| Output frequency | 50Hz ± 0.2 Hz |
| Output waveform | Pure Sine Wave ≤ 5% THD |
| Discharging current @ full load | 50A ± 2A |
| Low Battery Warning | 10.8±0.2V |
| Low Battery Cut | 10.4V±0.2V |
| Change over time UPS mode | < 10msec |
| Change over time WUPS mode | < 25msec |
| Overload in backup mode | Yes provided, system will indicate on display at 101% load |
| Short Circuit in Backup Mode | System will shutdown after 3 - retries in case of output short circuit |
| Short Circuit in Mains Mode | Mains Fuse will blown |
| Back feed | System will shutdown in case of back feed and there is no retry |
| Over temperature | Yes provided, if heat sink temperature goes above 100°C System will shut down |
| Reverse Battery | DC fuse will blown |
| Phase to Phase protection in mains mode | Yes provided by electronic |
| Solar Charge Controller type | PWM type |
| Max Panel wattage can be connected | 600W |
| Max PV current | 25A |
| Reverse PV protection | Yes provided, it will also display on LCD panel |
| Reverse current flow to PV | Yes provided, it will also display on LCD panel |
| Sharing of current when PV and Grid Both are available | If PV power is not sufficient enough to charge the battery, system will start sharing battery charging from PV and grid. |
| Option for Grid and Battery priority | Yes, provided, user can set priority for Battery or Grid. Hence user can set system in electricity bill saving. |
| LCD Initial Display | Welcome, SMARTEN Website Address, System Capacity, Charging Till 90VAC and Deep Discharge Battery,System Setting, UPS / WUPS mode, I/P range 90-295VAC / 170-265VAC, Battery Type Selected LA / SMF / Tubular, BatteryCapacity Selected 100-135Ah / 150-200Ah |
| LCD Status Display | Mains ON, Input Voltage, Input Frequency, Battery Voltage, Battery Charging, Battery Charged, Charging Current, Backup Mode, UPS ON, UPS OFF, Battery Voltage, Load %, Output Voltage, Output Frequency, Mains Low Cut, Mains High Cut, Mains Not Available, Mains Frequency Cut |
| Buzzer | Audible beep for Overload, Short Circuit, Back feed, Low Battery, Over Temperature, Mains Fuse blown / MCB Trip |
| HV Test Input to Earth | Leakage current <5mA when 1.5kV applied for 1 min |
| HV Test Output to Earth | Leakage current <5mA when 1.5kV applied for 1 min |
| IR Test Input to Earth | >5MÎ between @ 500VDC |
| IR Test Output to Earth | >5MÎ between @ 500VDC |
| Earth Leakage current in Mains mode | < 2.5mA |
| Earth Leakage current in Backup mode | < 2.5mA |
| Solar-First Energy Priority | Consumes generated solar energy first before drawing utility grid power, substantially lowering monthly energy bills. |
| Pure Sine Wave Output | Guarantees whisper-quiet motor operation and prevents harmonic distortion or harm to sensitive digital devices. |
| Integrated 25A Solar Charger | Fast-charges battery efficiently using up to 25A solar input current, even under partial shading conditions. |
| Wide Input Voltage Range | Charges batteries reliably during severe low-voltage grid fluctuations without unnecessary battery drain. |
| Light Industrial Workstations | Powers testing equipment, small bench tools, security camera systems, and control panels seamlessly. |
| Residential Homes | Ideal for running LED lighting networks, ceiling fans, smart TVs, laptops, and Wi-Fi routers during blackouts. |
| Retail Outlets & Kiosks | Keeps POS billing machines, LED display boards, and credit card terminals online continuously. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About SMARTEN 1025 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup
SMARTEN 1025 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by SMARTEN. Key specifications include weight (approx.) 12 kg, mains ac low cut ups mode 175VAC ± 10VAC, mains ac low cut recovery ups mode 185VAC ± 10VAC, mains ac high cut ups mode 265VAC ± 10VAC, mains ac high cut recovery ups mode 255VAC ± 10VAC. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
SMARTEN 1025 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup specifications
| Weight (Approx.) | 12 kg |
|---|---|
| Mains AC low cut UPS mode | 175VAC ± 10VAC |
| Mains AC low cut recovery UPS mode | 185VAC ± 10VAC |
| Mains AC high cut UPS mode | 265VAC ± 10VAC |
| Mains AC high cut recovery UPS mode | 255VAC ± 10VAC |
| Mains AC low cut WUPS mode | 90VAC ± 10VAC |
| Mains AC low cut recovery W.UPS mode | 110VAC ± 10VAC |
| Mains AC high cut WUPS mode | 295VAC ± 10VAC |
| Mains AC high cut recovery W.UPS mode | 285VAC ± 10VAC |
| Input Frequency Range | 48Hz to 52Hz |
| Voltage Output in Mains Mode | Same as input |
| Frequency Output in Mains Mode | Same as input |
FAQs related to SMARTEN 1025 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup
How long does delivery take for SMARTEN 1025 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup orders, including to rural areas?
+
Delivery timelines for SMARTEN 1025 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup are shown at checkout based on your pincode. ToolHaat delivers pan-India, including rural and semi-urban locations, though larger equipment may have a longer transit window than smaller accessories.
Can dealers or distributors get a custom quote for SMARTEN 1025 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup in large volumes?
+
Yes — use the RFQ feature for dealer or distributor-level SMARTEN 1025 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup orders. Our sales team provides a dedicated quote and delivery plan for bulk agricultural equipment purchases.
Can I compare different brands and price points for SMARTEN 1025 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup before buying?
+
Yes — ToolHaat lists SMARTEN 1025 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup from multiple vendors and brands at different price points and specifications, so you can compare before committing to a bulk purchase.
Does SMARTEN 1025 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup come with a warranty or after-sales support?
+
Warranty terms for SMARTEN 1025 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup vary by vendor and brand — check the product listing for specific coverage. ToolHaat support can help connect you with the vendor for warranty claims or service queries after purchase.
Are spare parts or accessories for SMARTEN 1025 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup also available on ToolHaat?
+
Many SMARTEN 1025 Sine Wave Solar Inverter 12VDC 25A SCC for Industrial Power Backup categories on ToolHaat also list compatible accessories and spare parts separately — check related subcategories or use search to find parts matching your specific model.
