Servotech · SKU: thagri3431

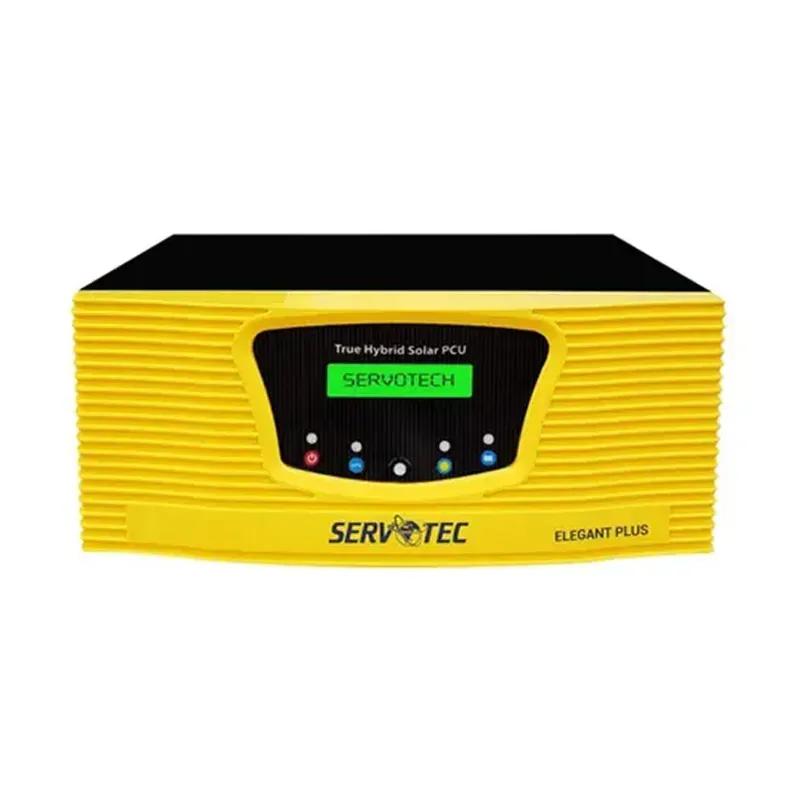

Servotech 800VA 12 V Elegant Plus 1112 PWM Pure Sinewave Intelligent Solar Inverter
In Stock
₹6,920₹10,500-34% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Servotech |
| Weight (Approx.) | 10 kg |
| Model | EP-PCUOGP-1112/S11 |
| Capacity | 800VA |
| Operating DC Voltage | 12V |
| Typical Efficiency | ≥80% |
| Switching Element | MOSFET |
| Charger Topology | Boost MOSFET |
| Dimension LxWxH (mm) | 390 X 335 X 225 |
| Nominal Grid Voltage | 230V |
| Nominal Frequency | 50Hz |
| Frequency Range | 45-55Hz |
| Output PF | 0.7 |
| Battery Charging Method (5 Stage) | Soft Start/Bulk/Absorption/Float/Equalize |
| Grid-Battery Charging | TUB (Default) : Boost : 14.4V ± 0.2V (Each Battery) |
| Grid-Battery Charging Current | Enable : Default : 15A±1A |
| Grid Reconnect @Battery Voltage | 11.7V ±0.2V (Each Battery) |
| Grid Low Cut Voltage | UPS Mode Enable : 170V±10V |
| Grid Low Cut Recovery | UPS Mode Enable : 180V±10V |
| Grid High Cut Voltage | UPS Mode Enable : 265V ±10V |
| Grid High Cut Recovery | UPS Mode Enable : 255V ±10V |
| Changeover (Batt. to Mains) | UPS Mode Enable/Disable : <6ms |
| Changeover ((Mains to Batt) | UPS Mode Enable/Disable : <25ms |
| DG Mode | Disable |
| Output Phase | Single Phase |
| Output Waveform | Sinewave |
| Nominal Output Voltage | 220V ± 5% |
| Max. Output Current | 2A |
| Battery Low Buzzer | 10.8V ±0.02V (Each Battery) |
| Battery Low Cut | 10.5V ±0.02V (Each Battery) |
| Battery High Cut | 16.5V ±0.02V (Each Battery) |
| Voltage THD | <3% (Linear Load) |
| Overload Capacity | UPS Mode Disable : >110% 3-Times Auto Reset with 30sec. Delay and 4th Time Shut Down |
| Protection | Overload, Battery Low, Battery High, Over Temperature, Short Circuit, PV Reverse, PV High, Mains Fuse Trip, Grid Overload, Wiring |
| POWER | Function : ON/OFF UPS Output : SYSTEM ON-LED ON, SYSTEM OFF-LED OFF |
| Inverter/UPS | When it is Short Pressed it Enable UPS/Inverter Mode Selection. When it is long Pressed Enables the UPS Parameter Setting - UPS Mode ON-LED ON, UPS Mode OFF-LED OFF |
| SMF/TUB | When it is Pressed it Enables TUBULAR/SMF Battery Selection - TUBULAR Battery-LED ON, SMF Battery LED OFF |
| Hybrid/PCU | When it is short pressed it enables Hybrid/PCU Mode Selection - PCU Mode - LED ON, Hybrid Mode - LED OFF |
| Only LED | Solar Status Green/Red - Green LED ON - Full Solar used, Green LED Blinking - Partial Solar used, Green LED OFF No Solar used, Red LED ON-PV Reverse Protection, Red LED OFF-No Protection Selected |
| Display | Battery Voltage, Solar Charging Current, Grid Charging Current, Solar Load Current, Grid Voltage, Grid Frequency, Output Voltage, Output Frequency, Load in % on Battery, Load in % on Solar, Charging Mode, Protection, Charging Mode, Solar Kwh (Saving), Solar Availability Status, Solar Working Mode (Hybrid/PCU Lite/PCU Ultra), UPS ON/OFF |
| Operating Mode HYBRID/PCU LITE/PCU ULTRA | Hybrid |
| Type of charger | PWM |
| SPV Charging Voltage | TUB : Boost : 15V ± 0.02V (Each Battery |
| Efficiency | ≥97% |
| Solar Current Min. | >1A (Below 1A, System will act like Solar Absent) |
| Solar Current Max. | 30A |
| Input Voltage Range (Min-Max) Voc | 17V-25V |
| Maximum PV Power Recommended | 550W |
| Operating Temperature | 0-50°C |
| Cooling | Fan |
| Max. Relative Humidity@25°C (Non-condensing) | 95% |
| Noise | 50dB |
| Standard Compliance | IP20 |
| 800VA Capacity | Provides efficient power backup. |
| 12V System | Optimized for energy conversion. |
| Pure Sine Wave Output | Ensures smooth and stable power. |
| Intelligent Solar PWM Technology | Enhances battery charging efficiency. |
| Advanced Solar Protection | Prevents overload and short circuits. |
| Dual Technology Support | Compatible with grid and solar power. |
| Compact & Lightweight Design | Easy to install and transport. |
| Energy-Efficient Operation | Reduces electricity consumption. |
| Durable Build | Ensures long-term reliability. |
| 1-Year Warranty | Provides manufacturer support. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Servotech 800VA 12 V Elegant Plus 1112 PWM Pure Sinewave Intelligent Solar Inverter
Servotech 800VA 12 V Elegant Plus 1112 PWM Pure Sinewave Intelligent Solar Inverter is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by Servotech. Key specifications include weight (approx.) 10 kg, capacity 800VA, operating dc voltage 12V, typical efficiency ≥80%, switching element MOSFET. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Servotech 800VA 12 V Elegant Plus 1112 PWM Pure Sinewave Intelligent Solar Inverter specifications
| Weight (Approx.) | 10 kg |
|---|---|
| Capacity | 800VA |
| Operating DC Voltage | 12V |
| Typical Efficiency | ≥80% |
| Switching Element | MOSFET |
| Charger Topology | Boost MOSFET |
| Dimension LxWxH (mm) | 390 X 335 X 225 |
| Nominal Grid Voltage | 230V |
| Nominal Frequency | 50Hz |
| Frequency Range | 45-55Hz |
| Output PF | 0.7 |
| Battery Charging Method (5 Stage) | Soft Start/Bulk/Absorption/Float/Equalize |
FAQs related to Servotech 800VA 12 V Elegant Plus 1112 PWM Pure Sinewave Intelligent Solar Inverter
Can Servotech 800VA 12 V Elegant Plus 1112 PWM Pure Sinewave Intelligent Solar Inverter orders be timed to arrive before the sowing or harvest season?
+
Yes — for seasonal equipment needs, place your Servotech 800VA 12 V Elegant Plus 1112 PWM Pure Sinewave Intelligent Solar Inverter order with enough lead time before peak season, or contact our sales team to confirm stock availability and delivery timing ahead of sowing or harvest windows.
Are spare parts or accessories for Servotech 800VA 12 V Elegant Plus 1112 PWM Pure Sinewave Intelligent Solar Inverter also available on ToolHaat?
+
Many Servotech 800VA 12 V Elegant Plus 1112 PWM Pure Sinewave Intelligent Solar Inverter categories on ToolHaat also list compatible accessories and spare parts separately — check related subcategories or use search to find parts matching your specific model.
Is Servotech 800VA 12 V Elegant Plus 1112 PWM Pure Sinewave Intelligent Solar Inverter suitable for both small farms and large agricultural operations?
+
ToolHaat lists Servotech 800VA 12 V Elegant Plus 1112 PWM Pure Sinewave Intelligent Solar Inverter across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
Is a GST invoice provided for Servotech 800VA 12 V Elegant Plus 1112 PWM Pure Sinewave Intelligent Solar Inverter purchases?
+
Yes, every Servotech 800VA 12 V Elegant Plus 1112 PWM Pure Sinewave Intelligent Solar Inverter order comes with an automatically generated GST invoice, useful for input tax credit claims and standard farm-business accounting.
What is the bulk pricing structure for Servotech 800VA 12 V Elegant Plus 1112 PWM Pure Sinewave Intelligent Solar Inverter?
+
Servotech 800VA 12 V Elegant Plus 1112 PWM Pure Sinewave Intelligent Solar Inverter on ToolHaat uses tiered bulk pricing — cost per unit drops as order quantity rises, shown on the product page. For dealer-volume or distributor-level quantities, an RFQ gets you a dedicated quote.
