Servotech · SKU: thagri10655

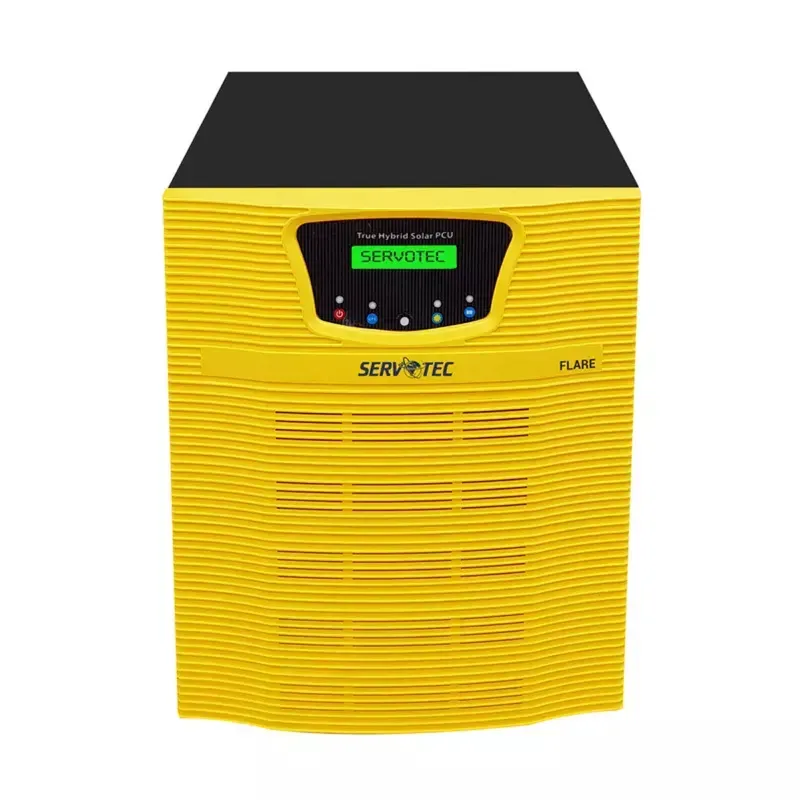

Servotech 7.5 kVA 96 V Flare Series 8596 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Year Warranty
In Stock
₹84,150₹1,00,000-16% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Servotech |
| Weight (Approx.) | 46 kg |
| Model | STF-PCUOGM-7548/S11 |
| Capacity | 7500VA |
| Operating DC Voltage | 96V |
| Typical Efficiency | ≥82% |
| Switching Element | IGBT |
| Charger Topology | Boost MOSFET |
| Dimension (L x W x H) | 520 X 400 X 640 mm |
| Nominal Grid Voltage | 230V |
| Nominal Frequency | 50Hz |
| Frequency Range | 45-55 Hz ± 1 Hz |
| Output PF | 0.7 |
| Battery Charging Method (5 Stage) | Bulk/Absorption/Float/Equalize |
| Grid-Battery Charging | TUB (Default) : Boost : 14.4V ± 0.2V (Each Battery) |
| Grid-Battery Charging Current | Enable : Default : 15A±1A |
| Grid Reconnect @Battery Voltage | 11.7V ±0.2V (Each Battery) |
| Grid Low Cut Voltage | UPS Mode Enable : 170V±10V |
| Grid Low Cut Recovery | UPS Mode Enable : 180V±10V |
| Grid High Cut Voltage | UPS Mode Enable : 265V ±10V |
| Grid High Cut Recovery | UPS Mode Enable : 255V ±10V |
| Changeover (Batt. to Mains) | UPS Mode Enable/Disable : <6ms/<6ms |
| Changeover ((Mains to Batt) | UPS Mode Enable/Disable : <6ms/<30ms |
| DG Mode | Disable |
| Output Phase | Single Phase |
| Output Waveform | Sinewave |
| Nominal Output Voltage | 220V ± 5% |
| Max. Output Current | 27.5A |
| Discharging Current | 50A±2A |
| Battery Low Buzzer | 10.8V ±0.02V (Each Battery) |
| Battery Low Cut | 10.5V ±0.02V (Each Battery) |
| Battery High Cut | 16.5V ±0.02V (Each Battery) |
| Voltage THD | <3% (Linear Load) |
| Overload Capacity | UPS Mode Disable : >110% 3-Times Auto Reset with 30sec. Delay and 4th Time Shut Down |
| Protection | Overload, Battery Low, Battery High, Over Temperature, Short Circuit, PV Reverse, PV High, Mains Fuse Trip, Grid Overload, Wiring |
| POWER | Function : ON/OFF UPS Output : SYSTEM ON-LED ON, SYSTEM OFF-LED OFF |
| Inverter/UPS | When it is Short Pressed it Enable UPS/Inverter Mode Selection. When it is long Pressed Enables the UPS Parameter Setting - UPS Mode ON-LED ON, UPS Mode OFF-LED OFF |
| SMF/TUB | When it is Pressed it Enables TUBULAR/SMF Battery Selection - TUBULAR Battery-LED ON, SMF Battery LED OFF |
| Hybrid/PCU | When it is short pressed it enables Hybrid/PCU Mode Selection - PCU Mode - LED ON, Hybrid Mode - LED OFF |
| Only LED | Solar Status Green/Red - Green LED ON - Full Solar used, Green LED Blinking - Partial Solar used, Green LED OFF No Solar used, Red LED ON-PV Reverse Protection, Red LED OFF-No Protection Selected |
| Display | Battery Voltage, Solar Charging Current, Grid Charging Current, Solar Load Current, Grid Voltage, Grid Frequency, Output Voltage, Output Frequency, Load in % on Battery, Load in % on Solar, Charging Mode, Protection, Charging Mode, Solar Kwh (Saving), Solar Availability Status, Solar Working Mode (Hybrid/PCU Lite/PCU Ultra), UPS ON/OFF |
| Input Voltage Range (Min Max) | 140-360 VDC |
| Maximum PV Power Recommended | 7.5 KW |
| Controller | ARM-Cortex |
| Type of Charger | MPPT |
| Efficiency | 95% |
| Operating Temperature | 0-50°C |
| Cooling | Fan |
| Max. Relative Humidity (@25°C (Non Condensing) | 95% |
| Noise 1 Meter | 50dB |
| Standard Compliance | IP20 |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Servotech 7.5 kVA 96 V Flare Series 8596 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Year Warranty
Servotech 7.5 kVA 96 V Flare Series 8596 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Year Warranty is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by Servotech. Key specifications include weight (approx.) 46 kg, capacity 7500VA, operating dc voltage 96V, typical efficiency ≥82%, switching element IGBT. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Servotech 7.5 kVA 96 V Flare Series 8596 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Year Warranty specifications
| Weight (Approx.) | 46 kg |
|---|---|
| Capacity | 7500VA |
| Operating DC Voltage | 96V |
| Typical Efficiency | ≥82% |
| Switching Element | IGBT |
| Charger Topology | Boost MOSFET |
| Dimension (L x W x H) | 520 X 400 X 640 mm |
| Nominal Grid Voltage | 230V |
| Nominal Frequency | 50Hz |
| Frequency Range | 45-55 Hz ± 1 Hz |
| Output PF | 0.7 |
| Battery Charging Method (5 Stage) | Bulk/Absorption/Float/Equalize |
FAQs related to Servotech 7.5 kVA 96 V Flare Series 8596 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Year Warranty
Is Servotech 7.5 kVA 96 V Flare Series 8596 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Year Warranty suitable for both small farms and large agricultural operations?
+
ToolHaat lists Servotech 7.5 kVA 96 V Flare Series 8596 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Year Warranty across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
What if Servotech 7.5 kVA 96 V Flare Series 8596 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Year Warranty arrives damaged or doesn’t match the listed specifications?
+
Contact ToolHaat support with your order ID and photos if Servotech 7.5 kVA 96 V Flare Series 8596 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Year Warranty arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.
Does Servotech 7.5 kVA 96 V Flare Series 8596 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Year Warranty come with a warranty or after-sales support?
+
Warranty terms for Servotech 7.5 kVA 96 V Flare Series 8596 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Year Warranty vary by vendor and brand — check the product listing for specific coverage. ToolHaat support can help connect you with the vendor for warranty claims or service queries after purchase.
Is a GST invoice provided for Servotech 7.5 kVA 96 V Flare Series 8596 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Year Warranty purchases?
+
Yes, every Servotech 7.5 kVA 96 V Flare Series 8596 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Year Warranty order comes with an automatically generated GST invoice, useful for input tax credit claims and standard farm-business accounting.
How long does delivery take for Servotech 7.5 kVA 96 V Flare Series 8596 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Year Warranty orders, including to rural areas?
+
Delivery timelines for Servotech 7.5 kVA 96 V Flare Series 8596 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Year Warranty are shown at checkout based on your pincode. ToolHaat delivers pan-India, including rural and semi-urban locations, though larger equipment may have a longer transit window than smaller accessories.
