Servotech · SKU: thagri7061

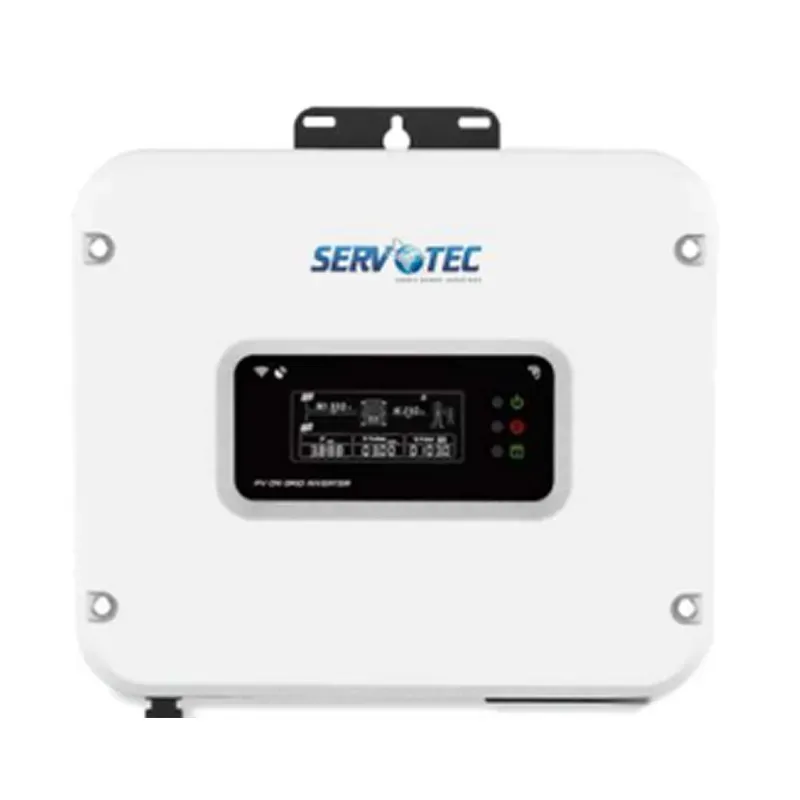

Servotech 6VA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support
In Stock
₹43,065₹50,000-14% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| AC connection (with PE) | Single phase |
| Current distortion (THDi) Power factor | <2.5% |
| Brand | Servotech |
| Weight (Approx.) | 7 kg |
| Embedded DC Switch | Optional |
| Night power consumption (W) | < 0.2 |
| Isolation type | Transformer less |
| Protection degree | IP65 according to IEC60529 |
| Operation temperature (oC) | -25~+60 |
| Cooling concept | Smart Cooling |
| Operatiing Altitude (m) | <2000m without power derating |
| Acoustic noise level (dB) | < 25 |
| Display | Graphic LCD |
| Communication Interface | Standard WIFI; RS485 (optional) |
| Warranty | Standard 5 years |
| Dimension (L x W x H) | 370 x 318.5 x 105.5 mm |
| Model No | ST-ONGINV6KW/S1 |
| Max DC power (W) | 7500W |
| Max DC voltage (Vdc) | 550 |
| Min System start/Shut down voltage (Vdc) | 75/100 |
| MPPT voltage range(Vdc) | 100~500 |
| Max. input current (A) | 22A |
| Max. input short circuit per MPPT | 30A |
| Number of MPP trackers | 1 |
| Strings per MPP tracker | 1 |
| Nominal output power (W) | 6000 |
| Maximum output power (W) | 6600 |
| Nominal output voltage/range (V) | 208,220,230,240/180~270 |
| AC grid frequency/range (Hz) | 50Hz, 60Hz(auto-selection) /44Hz-55Hz; 54Hz-65Hz |
| Maximum output current (A) | 28 |
| Power factor | ~1% (Adjustable from 0.8 leading to 0.8 lagging) |
| Maximum conversion efficiency | 97.60% |
| European efficiency | 97.30% |
| MPPT efficiency | 99.90% |
| DC reverse-polarity protection | Yes |
| Anti-islanding / Overvoltage protection | Yes |
| Short circuit protection | Yes |
| Leakage current protection | Yes |
| Grid monitoring / Ground fault monitoring | Yes |
| Efficiency | Yes |
| DC/AC side SPD(thermally protected) | Yes |
| 6KVA Capacity | Provides efficient power conversion for various applications. |
| MPPT Technology | Maximizes solar energy utilization for improved performance. |
| On-Grid Functionality | Allows direct connection to the utility grid. |
| Advanced Protection | Includes overload, short circuit, and overcharge safeguards. |
| Energy-Efficient Operation | Reduces electricity consumption and enhances system efficiency. |
| Smart LCD Display | Allows easy monitoring of system performance. |
| Compact & Durable Design | Ensures long-term reliability and easy installation. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Servotech 6VA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support
Servotech 6VA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by Servotech. Key specifications include ac connection (with pe) Single phase, current distortion (thdi) power factor <2.5%, weight (approx.) 7 kg, embedded dc switch Optional, night power consumption (w) < 0.2. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Servotech 6VA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support specifications
| AC connection (with PE) | Single phase |
|---|---|
| Current distortion (THDi) Power factor | <2.5% |
| Weight (Approx.) | 7 kg |
| Embedded DC Switch | Optional |
| Night power consumption (W) | < 0.2 |
| Isolation type | Transformer less |
| Protection degree | IP65 according to IEC60529 |
| Operation temperature (oC) | -25~+60 |
| Cooling concept | Smart Cooling |
| Operatiing Altitude (m) | <2000m without power derating |
| Acoustic noise level (dB) | < 25 |
| Display | Graphic LCD |
FAQs related to Servotech 6VA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support
What if Servotech 6VA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support arrives damaged or doesn’t match the listed specifications?
+
Contact ToolHaat support with your order ID and photos if Servotech 6VA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.
Can I compare different brands and price points for Servotech 6VA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support before buying?
+
Yes — ToolHaat lists Servotech 6VA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support from multiple vendors and brands at different price points and specifications, so you can compare before committing to a bulk purchase.
Is a GST invoice provided for Servotech 6VA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support purchases?
+
Yes, every Servotech 6VA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support order comes with an automatically generated GST invoice, useful for input tax credit claims and standard farm-business accounting.
Is Servotech 6VA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support suitable for both small farms and large agricultural operations?
+
ToolHaat lists Servotech 6VA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
Can dealers or distributors get a custom quote for Servotech 6VA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support in large volumes?
+
Yes — use the RFQ feature for dealer or distributor-level Servotech 6VA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support orders. Our sales team provides a dedicated quote and delivery plan for bulk agricultural equipment purchases.
