Servotech · SKU: thagri10155

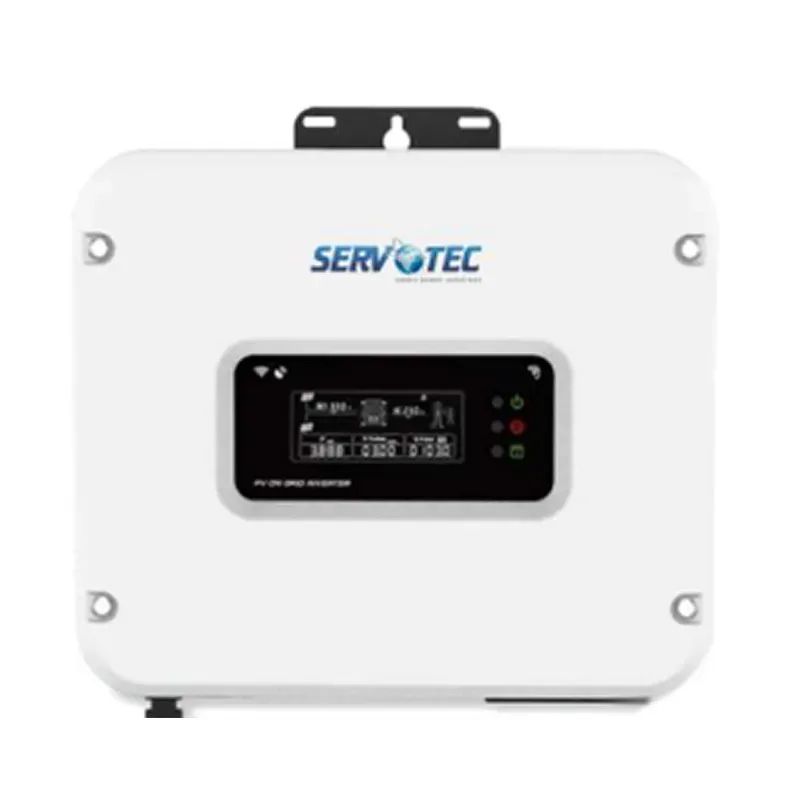

Servotech 5 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support
In Stock
₹38,412₹43,500-12% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Servotech |
| Weight (Approx.) | 7 kg |
| Embedded DC Switch | Optional |
| Night power consumption (W) | < 0.2 |
| Isolation type | Transformerless |
| Protection degree | IP65 according to IEC60529 |
| Operation temperature (oC) | -25~+60 |
| Cooling concept | Smart Cooling |
| Operatiing Altitude (m) | <2000m without power derating |
| Acoustic noise level (dB) | < 25 |
| Display | Graphic LCD |
| Communication Interface | Standard WIFI; RS485 (optional) |
| Warranty | Standard 5 years |
| Dimension (L x W x H) | 370 x 318.5 x 105.5 mm |
| Model No | ST-ONGINV5KW/S1 |
| Max DC power (W) | 7500W |
| Max DC voltage (Vdc) | 550 |
| Min System start/Shut down voltage (Vdc) | 75/100 |
| MPPT voltage range(Vdc) | 100~500 |
| Max. input current (A) | 22A |
| Max. input short circuit per MPPT | 30A |
| Number of MPP trackers | 1 |
| Strings per MPP tracker | 1 |
| Nominal output power (W) | 5000 |
| Maximum output power (W) | 5500 |
| Nominal output voltage/range (V) | 208,220,230,240/180~270 |
| AC grid frequency/range (Hz) | 50Hz, 60Hz(auto-selection) /44Hz-55Hz; 54Hz-65Hz |
| Maximum output current (A) | 23 |
| AC connection (with PE) | Single phase |
| Current distortion (THDi) Power factor | <2.5% |
| Power factor | ~1% (Adjustable from 0.8 leading to 0.8 lagging) |
| Maximum conversion efficiency | 97.50% |
| European efficiency | 97.20% |
| MPPT efficiency | 99.90% |
| DC reverse-polarity protection | Yes |
| Anti-islanding / Overvoltage protection | Yes |
| Short circuit protection | Yes |
| Leakage current protection | Yes |
| Grid monitoring / Ground fault monitoring | Yes |
| Efficiency | Yes |
| DC/AC side SPD(thermally protected) | Yes |
| 5KVA Capacity | Provides efficient power conversion for various applications. |
| MPPT Technology | Maximizes solar energy utilization for improved performance. |
| On-Grid Functionality | Allows direct connection to the utility grid. |
| Advanced Protection | Includes overload, short circuit, and overcharge safeguards. |
| Energy-Efficient Operation | Reduces electricity consumption and enhances system efficiency. |
| Smart LCD Display | Allows easy monitoring of system performance. |
| Compact & Durable Design | Ensures long-term reliability and easy installation. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Servotech 5 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support
Servotech 5 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by Servotech. Key specifications include weight (approx.) 7 kg, embedded dc switch Optional, night power consumption (w) < 0.2, isolation type Transformerless, protection degree IP65 according to IEC60529. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Servotech 5 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support specifications
| Weight (Approx.) | 7 kg |
|---|---|
| Embedded DC Switch | Optional |
| Night power consumption (W) | < 0.2 |
| Isolation type | Transformerless |
| Protection degree | IP65 according to IEC60529 |
| Operation temperature (oC) | -25~+60 |
| Cooling concept | Smart Cooling |
| Operatiing Altitude (m) | <2000m without power derating |
| Acoustic noise level (dB) | < 25 |
| Display | Graphic LCD |
| Communication Interface | Standard WIFI; RS485 (optional) |
| Warranty | Standard 5 years |
FAQs related to Servotech 5 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support
Is Servotech 5 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support suitable for both small farms and large agricultural operations?
+
ToolHaat lists Servotech 5 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
Does Servotech 5 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support come with a warranty or after-sales support?
+
Warranty terms for Servotech 5 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support vary by vendor and brand — check the product listing for specific coverage. ToolHaat support can help connect you with the vendor for warranty claims or service queries after purchase.
What is the bulk pricing structure for Servotech 5 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support?
+
Servotech 5 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support on ToolHaat uses tiered bulk pricing — cost per unit drops as order quantity rises, shown on the product page. For dealer-volume or distributor-level quantities, an RFQ gets you a dedicated quote.
Can dealers or distributors get a custom quote for Servotech 5 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support in large volumes?
+
Yes — use the RFQ feature for dealer or distributor-level Servotech 5 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support orders. Our sales team provides a dedicated quote and delivery plan for bulk agricultural equipment purchases.
Are spare parts or accessories for Servotech 5 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support also available on ToolHaat?
+
Many Servotech 5 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support categories on ToolHaat also list compatible accessories and spare parts separately — check related subcategories or use search to find parts matching your specific model.
