Servotech · SKU: thagri10537

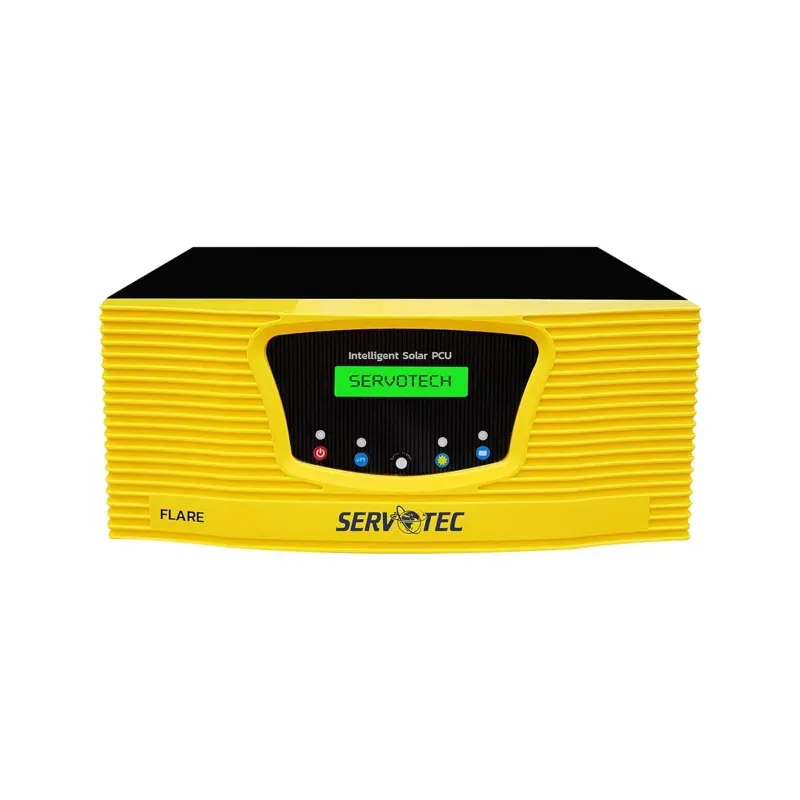

Servotech 4 kVA 48 V Flare Series 5748 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Years of Warranty
In Stock
₹51,470₹60,000-14% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Servotech |
| Weight (Approx.) | 32 kg |
| Model | STF-PCUOGM-5748/S11 |
| Capacity | 4000VA |
| Operating DC Voltage | 48V |
| Typical Efficiency | ≥82% |
| Switching Element | MOSFET |
| Charger Topology | Boost MOSFET |
| Dimension (L x W x H) | 430 X 400 X 500 mm |
| Nominal Grid Voltage | 230V |
| Nominal Frequency | 50Hz |
| Frequency Range | 45-55 Hz ± 1 Hz |
| Output PF | 0.7 |
| Battery Charging Method (5 Stage) | Bulk/Absorption/Float/Equalize |
| Grid-Battery Charging | TUB (Default) : Boost : 14.4V ± 0.2V (Each Battery) |
| Grid-Battery Charging Current | Enable : Default : 15A±1A |
| Grid Reconnect @Battery Voltage | 11.7V ±0.2V (Each Battery) |
| Grid Low Cut Voltage | UPS Mode Enable : 170V±10V |
| Grid Low Cut Recovery | UPS Mode Enable : 180V±10V |
| Grid High Cut Voltage | UPS Mode Enable : 265V ±10V |
| Grid High Cut Recovery | UPS Mode Enable : 255V ±10V |
| Changeover (Batt. to Mains) | UPS Mode Enable/Disable : <6ms/<6ms |
| Changeover ((Mains to Batt) | UPS Mode Enable/Disable : <6ms/<30ms |
| DG Mode | Disable |
| Output Phase | Single Phase |
| Output Waveform | Sinewave |
| Nominal Output Voltage | 220V ± 5% |
| Max. Output Current | 13.5A |
| Discharging Current | 75A±2A |
| Battery Low Buzzer | 10.8V ±0.02V (Each Battery) |
| Battery Low Cut | 10.5V ±0.02V (Each Battery) |
| Battery High Cut | 16.5V ±0.02V (Each Battery) |
| Voltage THD | <3% (Linear Load) |
| Overload Capacity | UPS Mode Disable : >110% 3-Times Auto Reset with 30sec. Delay and 4th Time Shut Down |
| Protection | Overload, Battery Low, Battery High, Over Temperature, Short Circuit, PV Reverse, PV High, Mains Fuse Trip, Grid Overload, Wiring |
| POWER | Function : ON/OFF UPS Output : SYSTEM ON-LED ON, SYSTEM OFF-LED OFF |
| Inverter/UPS | When it is Short Pressed it Enable UPS/Inverter Mode Selection. When it is long Pressed Enables the UPS Parameter Setting - UPS Mode ON-LED ON, UPS Mode OFF-LED OFF |
| SMF/TUB | When it is Pressed it Enables TUBULAR/SMF Battery Selection - TUBULAR Battery-LED ON, SMF Battery LED OFF |
| Hybrid/PCU | When it is short pressed it enables Hybrid/PCU Mode Selection - PCU Mode - LED ON, Hybrid Mode - LED OFF |
| Only LED | Solar Status Green/Red - Green LED ON - Full Solar used, Green LED Blinking - Partial Solar used, Green LED OFF No Solar used, Red LED ON-PV Reverse Protection, Red LED OFF-No Protection Selected |
| Display | Battery Voltage, Solar Charging Current, Grid Charging Current, Solar Load Current, Grid Voltage, Grid Frequency, Output Voltage, Output Frequency, Load in % on Battery, Load in % on Solar, Charging Mode, Protection, Charging Mode, Solar Kwh (Saving), Solar Availability Status, Solar Working Mode (Hybrid/PCU Lite/PCU Ultra), UPS ON/OFF |
| Input Voltage Range (Min Max) | 80-260 VDC |
| Maximum PV Power Recommended | 4.0 KW |
| 4KVA Capacity | Provides robust power backup for various applications. |
| 48V System | Optimized for energy conversion and battery efficiency. |
| MPPT Technology | Maximizes solar energy utilization for improved performance. |
| Pure Sine Wave Output | Ensures stable and smooth power for sensitive appliances. |
| Dual Technology Support | Compatible with both grid and solar power sources. |
| Advanced Protection | Includes overload, short circuit, and overcharge safeguards. |
| Energy-Efficient Operation | Reduces electricity consumption and enhances battery life. |
| Smart LCD Display | Allows easy monitoring of system performance. |
| Compact & Durable Design | Ensures long-term reliability and easy installation. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Servotech 4 kVA 48 V Flare Series 5748 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Years of Warranty
Servotech 4 kVA 48 V Flare Series 5748 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Years of Warranty is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by Servotech. Key specifications include weight (approx.) 32 kg, capacity 4000VA, operating dc voltage 48V, typical efficiency ≥82%, switching element MOSFET. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Servotech 4 kVA 48 V Flare Series 5748 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Years of Warranty specifications
| Weight (Approx.) | 32 kg |
|---|---|
| Capacity | 4000VA |
| Operating DC Voltage | 48V |
| Typical Efficiency | ≥82% |
| Switching Element | MOSFET |
| Charger Topology | Boost MOSFET |
| Dimension (L x W x H) | 430 X 400 X 500 mm |
| Nominal Grid Voltage | 230V |
| Nominal Frequency | 50Hz |
| Frequency Range | 45-55 Hz ± 1 Hz |
| Output PF | 0.7 |
| Battery Charging Method (5 Stage) | Bulk/Absorption/Float/Equalize |
FAQs related to Servotech 4 kVA 48 V Flare Series 5748 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Years of Warranty
Can dealers or distributors get a custom quote for Servotech 4 kVA 48 V Flare Series 5748 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Years of Warranty in large volumes?
+
Yes — use the RFQ feature for dealer or distributor-level Servotech 4 kVA 48 V Flare Series 5748 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Years of Warranty orders. Our sales team provides a dedicated quote and delivery plan for bulk agricultural equipment purchases.
What is the bulk pricing structure for Servotech 4 kVA 48 V Flare Series 5748 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Years of Warranty?
+
Servotech 4 kVA 48 V Flare Series 5748 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Years of Warranty on ToolHaat uses tiered bulk pricing — cost per unit drops as order quantity rises, shown on the product page. For dealer-volume or distributor-level quantities, an RFQ gets you a dedicated quote.
Are spare parts or accessories for Servotech 4 kVA 48 V Flare Series 5748 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Years of Warranty also available on ToolHaat?
+
Many Servotech 4 kVA 48 V Flare Series 5748 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Years of Warranty categories on ToolHaat also list compatible accessories and spare parts separately — check related subcategories or use search to find parts matching your specific model.
What if Servotech 4 kVA 48 V Flare Series 5748 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Years of Warranty arrives damaged or doesn’t match the listed specifications?
+
Contact ToolHaat support with your order ID and photos if Servotech 4 kVA 48 V Flare Series 5748 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Years of Warranty arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.
Can Servotech 4 kVA 48 V Flare Series 5748 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Years of Warranty orders be timed to arrive before the sowing or harvest season?
+
Yes — for seasonal equipment needs, place your Servotech 4 kVA 48 V Flare Series 5748 MPPT Off-Grid Pure Sinewave Intelligent Solar Inverter with 2 Years of Warranty order with enough lead time before peak season, or contact our sales team to confirm stock availability and delivery timing ahead of sowing or harvest windows.
