Servotech · SKU: thagri10164

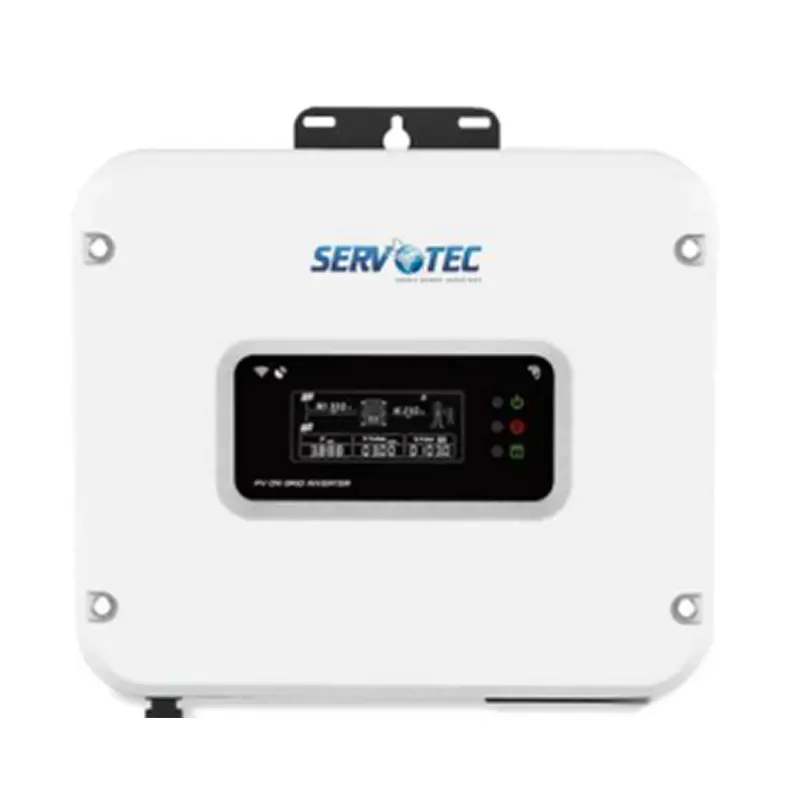

Servotech 3 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support
In Stock
₹24,651₹28,900-15% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Servotech |
| Weight (Approx.) | 7 kg |
| Embedded DC Switch | Optional |
| Night power consumption (W) | < 0.2 |
| Isolation type | Transformerless |
| Protection degree | IP65 according to IEC60529 |
| Operation temperature (oC) | -25~+60 |
| Cooling concept | Smart Cooling |
| Operatiing Altitude (m) | <2000m without power derating |
| Acoustic noise level (dB) | < 25 |
| Display | Graphic LCD |
| Communication Interface | Standard WIFI; RS485 (optional) |
| Warranty | Standard 5 years |
| Dimension (L x W x H) | 300 x 294 x 104 mm |
| Model No | ST-ONGINV3KW-S1 |
| Max DC power (W) | 4500W |
| Max DC voltage (Vdc) | 550 |
| Min System start/Shut down voltage (Vdc) | 75/100 |
| MPPT voltage range(Vdc) | 100~500 |
| Max. input current (A) | 18A |
| Max. input short circuit per MPPT | 25A |
| Number of MPP trackers | 1 |
| Strings per MPP tracker | 1 |
| Nominal output power (W) | 3000 |
| Maximum output power (W) | 3300 |
| Nominal output voltage/range (V) | 208,220,230,240/180~270 |
| AC grid frequency/range (Hz) | 50Hz, 60Hz(auto-selection) /44Hz-55Hz; 54Hz-65Hz |
| Maximum output current (A) | 16 |
| AC connection (with PE) | Single phase |
| Current distortion (THDi) Power factor | <1.5% |
| Power factor | ~1% (Adjustable from 0.8 leading to 0.8 lagging) |
| Maximum conversion efficiency | 97.50% |
| European efficiency | 97.20% |
| MPPT efficiency | 99.90% |
| DC reverse-polarity protection | Yes |
| Anti-islanding / Overvoltage protection | Yes |
| Short circuit protection | Yes |
| Leakage current protection | Yes |
| Grid monitoring / Ground fault monitoring | Yes |
| Efficiency | Yes |
| DC/AC side SPD(thermally protected) | Yes |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Servotech 3 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support
Servotech 3 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by Servotech. Key specifications include weight (approx.) 7 kg, embedded dc switch Optional, night power consumption (w) < 0.2, isolation type Transformerless, protection degree IP65 according to IEC60529. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Servotech 3 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support specifications
| Weight (Approx.) | 7 kg |
|---|---|
| Embedded DC Switch | Optional |
| Night power consumption (W) | < 0.2 |
| Isolation type | Transformerless |
| Protection degree | IP65 according to IEC60529 |
| Operation temperature (oC) | -25~+60 |
| Cooling concept | Smart Cooling |
| Operatiing Altitude (m) | <2000m without power derating |
| Acoustic noise level (dB) | < 25 |
| Display | Graphic LCD |
| Communication Interface | Standard WIFI; RS485 (optional) |
| Warranty | Standard 5 years |
FAQs related to Servotech 3 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support
What is the bulk pricing structure for Servotech 3 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support?
+
Servotech 3 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support on ToolHaat uses tiered bulk pricing — cost per unit drops as order quantity rises, shown on the product page. For dealer-volume or distributor-level quantities, an RFQ gets you a dedicated quote.
How long does delivery take for Servotech 3 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support orders, including to rural areas?
+
Delivery timelines for Servotech 3 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support are shown at checkout based on your pincode. ToolHaat delivers pan-India, including rural and semi-urban locations, though larger equipment may have a longer transit window than smaller accessories.
What if Servotech 3 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support arrives damaged or doesn’t match the listed specifications?
+
Contact ToolHaat support with your order ID and photos if Servotech 3 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.
Is Servotech 3 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support suitable for both small farms and large agricultural operations?
+
ToolHaat lists Servotech 3 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
Can Servotech 3 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support orders be timed to arrive before the sowing or harvest season?
+
Yes — for seasonal equipment needs, place your Servotech 3 kVA MPPT Solvion Series On-Grid Single Phase Solar Inverter with Dual Technology Support order with enough lead time before peak season, or contact our sales team to confirm stock availability and delivery timing ahead of sowing or harvest windows.
