Servotech · SKU: thagri3376

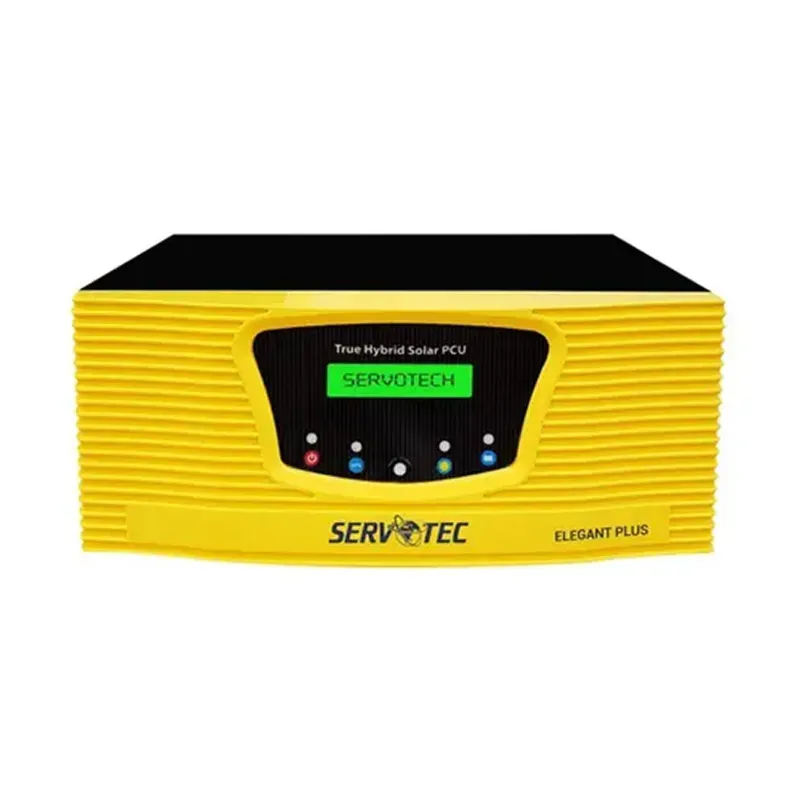

Servotech 1715VA 24 V Elegant Plus 2224 PWM Pure Sinewave Solar Inverter with Dual Technology Support and 2 Year Warranty
In Stock
₹9,702₹14,500-33% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Servotech |
| Weight (Approx.) | 12 kg |
| Model | EL-PCUOGP-2224/S11 (50A) |
| Capacity | 1715VA |
| Operating DC Voltage | 24V |
| Typical Efficiency | ≥82% |
| Switching Element | MOSFET |
| Charger Topology | Boost MOSFET |
| Dimension (L x W x H) | 395 X 385 X 270 mm |
| Nominal Grid Voltage | 230V |
| Nominal Frequency | 50Hz |
| Frequency Range | 45-55Hz |
| Output PF | 0.7 |
| Battery Charging Method (5 Stage) | Soft Start/Bulk/Absorption/Float/Equalize |
| Grid-Battery Charging | TUB (Default) : Boost : 14.4V ± 0.2V (Each Battery) |
| Grid-Battery Charging Current | Enable : Default : 15A±1A |
| Grid Reconnect @Battery Voltage | 11.7V ±0.2V (Each Battery) |
| Grid Low Cut Voltage | UPS Mode Enable : 170V±10V |
| Grid Low Cut Recovery | UPS Mode Enable : 180V±10V |
| Grid High Cut Voltage | UPS Mode Enable : 265V ±10V |
| Grid High Cut Recovery | UPS Mode Enable : 255V ±10V |
| Changeover (Batt. to Mains) | UPS Mode Enable/Disable : <6ms |
| Changeover ((Mains to Batt) | UPS Mode Enable/Disable : <25ms |
| DG Mode | Disable |
| Output Phase | Single Phase |
| Output Waveform | Sinewave |
| Nominal Output Voltage | 220V ± 5% |
| Max. Output Current | 4.2A |
| Battery Low Buzzer | 10.8V ±0.02V (Each Battery) |
| Battery Low Cut | 10.5V ±0.02V (Each Battery) |
| Battery High Cut | 16.5V ±0.02V (Each Battery) |
| Voltage THD | <3% (Linear Load) |
| Overload Capacity | UPS Mode Disable : >110% 3-Times Auto Reset with 30sec. Delay and 4th Time Shut Down |
| Protection | Overload, Battery Low, Battery High, Over Temperature, Short Circuit, PV Reverse, PV High, Mains Fuse Trip, Grid Overload, Wiring |
| POWER | Function : ON/OFF UPS Output : SYSTEM ON-LED ON, SYSTEM OFF-LED OFF |
| Inverter/UPS | When it is Short Pressed it Enable UPS/Inverter Mode Selection. When it is long Pressed Enables the UPS Parameter Setting - UPS Mode ON-LED ON, UPS Mode OFF-LED OFF |
| SMF/TUB | When it is Pressed it Enables TUBULAR/SMF Battery Selection - TUBULAR Battery-LED ON, SMF Battery LED OFF |
| Hybrid/PCU | When it is short pressed it enables Hybrid/PCU Mode Selection - PCU Mode - LED ON, Hybrid Mode - LED OFF |
| Only LED | Solar Status Green/Red - Green LED ON - Full Solar used, Green LED Blinking - Partial Solar used, Green LED OFF No Solar used, Red LED ON-PV Reverse Protection, Red LED OFF-No Protection Selected |
| Display | Battery Voltage, Solar Charging Current, Grid Charging Current, Solar Load Current, Grid Voltage, Grid Frequency, Output Voltage, Output Frequency, Load in % on Battery, Load in % on Solar, Charging Mode, Protection, Charging Mode, Solar Kwh (Saving), Solar Availability Status, Solar Working Mode (Hybrid/PCU Lite/PCU Ultra), UPS ON/OFF |
| Operating Mode HYBRID/PCU LITE/PCU ULTRA | Hybrid |
| Type of charger | PWM |
| SPV Charging Voltage | TUB : Boost : 15V ± 0.02V (Each Battery |
| Efficiency | ≥97% |
| Solar Current Min. | >1A (Below 1A, System will act like Solar Absent) |
| Solar Current Max. | 50A |
| Input Voltage Range (Min-Max) Voc | 17V-25V |
| Maximum PV Power Recommended | 1800W |
| Operating Temperature | 0-50°C |
| Cooling | Fan |
| Max. Relative Humidity@25°C (Non-condensing) | 95% |
| Noise | 50dB |
| Standard Compliance | IP20 |
| 1715VA Capacity | Provides efficient power backup. |
| 24V System | Optimized for energy conversion. |
| Pure Sine Wave Output | Ensures smooth and stable power. |
| Intelligent Solar PWM Technology | Enhances battery charging efficiency. |
| Advanced Solar Protection | Prevents overload and short circuits. |
| Dual Technology Support | Compatible with grid and solar power. |
| Compact & Lightweight Design | Easy to install and transport. |
| Energy-Efficient Operation | Reduces electricity consumption. |
| Durable Build | Ensures long-term reliability. |
| 1-Year Warranty | Provides manufacturer support. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Servotech 1715VA 24 V Elegant Plus 2224 PWM Pure Sinewave Solar Inverter with Dual Technology Support and 2 Year Warranty
Servotech 1715VA 24 V Elegant Plus 2224 PWM Pure Sinewave Solar Inverter with Dual Technology Support and 2 Year Warranty is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by Servotech. Key specifications include weight (approx.) 12 kg, capacity 1715VA, operating dc voltage 24V, typical efficiency ≥82%, switching element MOSFET. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Servotech 1715VA 24 V Elegant Plus 2224 PWM Pure Sinewave Solar Inverter with Dual Technology Support and 2 Year Warranty specifications
| Weight (Approx.) | 12 kg |
|---|---|
| Capacity | 1715VA |
| Operating DC Voltage | 24V |
| Typical Efficiency | ≥82% |
| Switching Element | MOSFET |
| Charger Topology | Boost MOSFET |
| Dimension (L x W x H) | 395 X 385 X 270 mm |
| Nominal Grid Voltage | 230V |
| Nominal Frequency | 50Hz |
| Frequency Range | 45-55Hz |
| Output PF | 0.7 |
| Battery Charging Method (5 Stage) | Soft Start/Bulk/Absorption/Float/Equalize |
FAQs related to Servotech 1715VA 24 V Elegant Plus 2224 PWM Pure Sinewave Solar Inverter with Dual Technology Support and 2 Year Warranty
Does Servotech 1715VA 24 V Elegant Plus 2224 PWM Pure Sinewave Solar Inverter with Dual Technology Support and 2 Year Warranty come with a warranty or after-sales support?
+
Warranty terms for Servotech 1715VA 24 V Elegant Plus 2224 PWM Pure Sinewave Solar Inverter with Dual Technology Support and 2 Year Warranty vary by vendor and brand — check the product listing for specific coverage. ToolHaat support can help connect you with the vendor for warranty claims or service queries after purchase.
How long does delivery take for Servotech 1715VA 24 V Elegant Plus 2224 PWM Pure Sinewave Solar Inverter with Dual Technology Support and 2 Year Warranty orders, including to rural areas?
+
Delivery timelines for Servotech 1715VA 24 V Elegant Plus 2224 PWM Pure Sinewave Solar Inverter with Dual Technology Support and 2 Year Warranty are shown at checkout based on your pincode. ToolHaat delivers pan-India, including rural and semi-urban locations, though larger equipment may have a longer transit window than smaller accessories.
Is a GST invoice provided for Servotech 1715VA 24 V Elegant Plus 2224 PWM Pure Sinewave Solar Inverter with Dual Technology Support and 2 Year Warranty purchases?
+
Yes, every Servotech 1715VA 24 V Elegant Plus 2224 PWM Pure Sinewave Solar Inverter with Dual Technology Support and 2 Year Warranty order comes with an automatically generated GST invoice, useful for input tax credit claims and standard farm-business accounting.
Is Servotech 1715VA 24 V Elegant Plus 2224 PWM Pure Sinewave Solar Inverter with Dual Technology Support and 2 Year Warranty suitable for both small farms and large agricultural operations?
+
ToolHaat lists Servotech 1715VA 24 V Elegant Plus 2224 PWM Pure Sinewave Solar Inverter with Dual Technology Support and 2 Year Warranty across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
What is the bulk pricing structure for Servotech 1715VA 24 V Elegant Plus 2224 PWM Pure Sinewave Solar Inverter with Dual Technology Support and 2 Year Warranty?
+
Servotech 1715VA 24 V Elegant Plus 2224 PWM Pure Sinewave Solar Inverter with Dual Technology Support and 2 Year Warranty on ToolHaat uses tiered bulk pricing — cost per unit drops as order quantity rises, shown on the product page. For dealer-volume or distributor-level quantities, an RFQ gets you a dedicated quote.
