Servotech · SKU: thagri10156

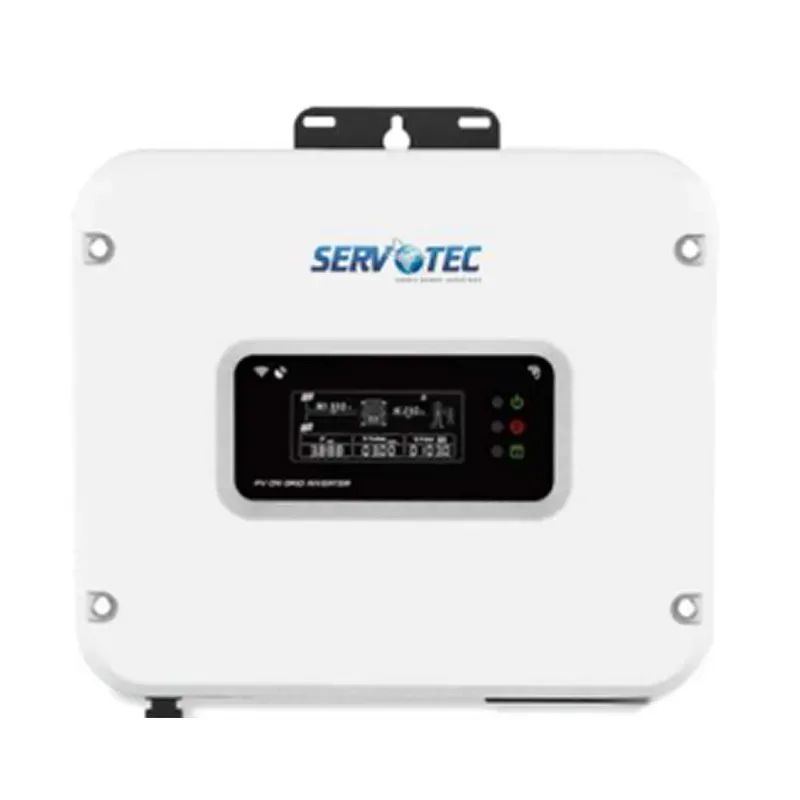

Servotech 10VA MPPT Solvion Series On-Grid Three Phase Solar Inverter with Dual Technology Support
In Stock
₹76,230₹85,000-10% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| DC/AC SPD | Yes |
| Brand | Servotech |
| Weight (Approx.) | 16 kg |
| Model | ST-ONGINV10KW-S3 |
| Operating temperature range oC | -25~+60 |
| Degree of protection | IP65 |
| Cooling concept | Smart Cooling |
| Topology | Transformer less |
| Display | LCD |
| Humidity | 0-95%, по condensation |
| Communication | RS485 / WIFI / GPRS |
| Dimension (W/H/D)(mm) | 480 X 476 X 157 |
| Max DC power (W) | 11500W |
| Max DC voltage (Vdc) | 1000 Vd.c. |
| Min working voltage (Vdc) | 160 Vd.c. |
| MPPT voltage range (Vdc) | 160...850Vd.c. |
| Max input current/per string (A) | 18A |
| Max input short circuit per MPPT | 25A |
| Number of MPP trackers | 2 |
| Strings per MPP tracker | 1 |
| AC nominal power (W) | 10000 |
| Max AC apparent power (VA) | 11000 |
| Max output current (A) | 17 |
| Nominal AC output | 50/60 Hz; 400 Vac |
| AC output range | 45/55 Hz: 280-490 Vac (Adj) |
| Power factor | 0.8leading...0.8laging |
| Harmonics | <5% |
| Grid type | 3 W/N/PE |
| Max efficiency | 98.40% |
| Euro efficiency | 97.90% |
| MPPT efficiency | 99.90% |
| DC reverse-polarity protection | Yes |
| DC breaker | Yes |
| Leakage current protection | Yes |
| Insulation Impedance Detection | Yes |
| Residual Current protection | Yes |
| 10VA Capacity | Provides efficient power conversion for various applications. |
| MPPT Technology | Maximizes solar energy utilization for improved performance. |
| Three-Phase System | Ensures stable and balanced power distribution. |
| On-Grid Functionality | Allows direct connection to the utility grid. |
| Advanced Protection | Includes overload, short circuit, and overcharge safeguards. |
| Energy-Efficient Operation | Reduces electricity consumption and enhances system efficiency. |
| Smart LCD Display | Allows easy monitoring of system performance. |
| Compact & Durable Design | Ensures long-term reliability and easy installation. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Servotech 10VA MPPT Solvion Series On-Grid Three Phase Solar Inverter with Dual Technology Support
Servotech 10VA MPPT Solvion Series On-Grid Three Phase Solar Inverter with Dual Technology Support is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by Servotech. Key specifications include dc/ac spd Yes, weight (approx.) 16 kg, operating temperature range oc -25~+60, degree of protection IP65, cooling concept Smart Cooling. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Servotech 10VA MPPT Solvion Series On-Grid Three Phase Solar Inverter with Dual Technology Support specifications
| DC/AC SPD | Yes |
|---|---|
| Weight (Approx.) | 16 kg |
| Operating temperature range oC | -25~+60 |
| Degree of protection | IP65 |
| Cooling concept | Smart Cooling |
| Topology | Transformer less |
| Display | LCD |
| Humidity | 0-95%, по condensation |
| Communication | RS485 / WIFI / GPRS |
| Dimension (W/H/D)(mm) | 480 X 476 X 157 |
| Max DC power (W) | 11500W |
| Max DC voltage (Vdc) | 1000 Vd.c. |
FAQs related to Servotech 10VA MPPT Solvion Series On-Grid Three Phase Solar Inverter with Dual Technology Support
How long does delivery take for Servotech 10VA MPPT Solvion Series On-Grid Three Phase Solar Inverter with Dual Technology Support orders, including to rural areas?
+
Delivery timelines for Servotech 10VA MPPT Solvion Series On-Grid Three Phase Solar Inverter with Dual Technology Support are shown at checkout based on your pincode. ToolHaat delivers pan-India, including rural and semi-urban locations, though larger equipment may have a longer transit window than smaller accessories.
Is a GST invoice provided for Servotech 10VA MPPT Solvion Series On-Grid Three Phase Solar Inverter with Dual Technology Support purchases?
+
Yes, every Servotech 10VA MPPT Solvion Series On-Grid Three Phase Solar Inverter with Dual Technology Support order comes with an automatically generated GST invoice, useful for input tax credit claims and standard farm-business accounting.
Are spare parts or accessories for Servotech 10VA MPPT Solvion Series On-Grid Three Phase Solar Inverter with Dual Technology Support also available on ToolHaat?
+
Many Servotech 10VA MPPT Solvion Series On-Grid Three Phase Solar Inverter with Dual Technology Support categories on ToolHaat also list compatible accessories and spare parts separately — check related subcategories or use search to find parts matching your specific model.
What if Servotech 10VA MPPT Solvion Series On-Grid Three Phase Solar Inverter with Dual Technology Support arrives damaged or doesn’t match the listed specifications?
+
Contact ToolHaat support with your order ID and photos if Servotech 10VA MPPT Solvion Series On-Grid Three Phase Solar Inverter with Dual Technology Support arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.
What is the bulk pricing structure for Servotech 10VA MPPT Solvion Series On-Grid Three Phase Solar Inverter with Dual Technology Support?
+
Servotech 10VA MPPT Solvion Series On-Grid Three Phase Solar Inverter with Dual Technology Support on ToolHaat uses tiered bulk pricing — cost per unit drops as order quantity rises, shown on the product page. For dealer-volume or distributor-level quantities, an RFQ gets you a dedicated quote.
