Servotech · SKU: thagri3493

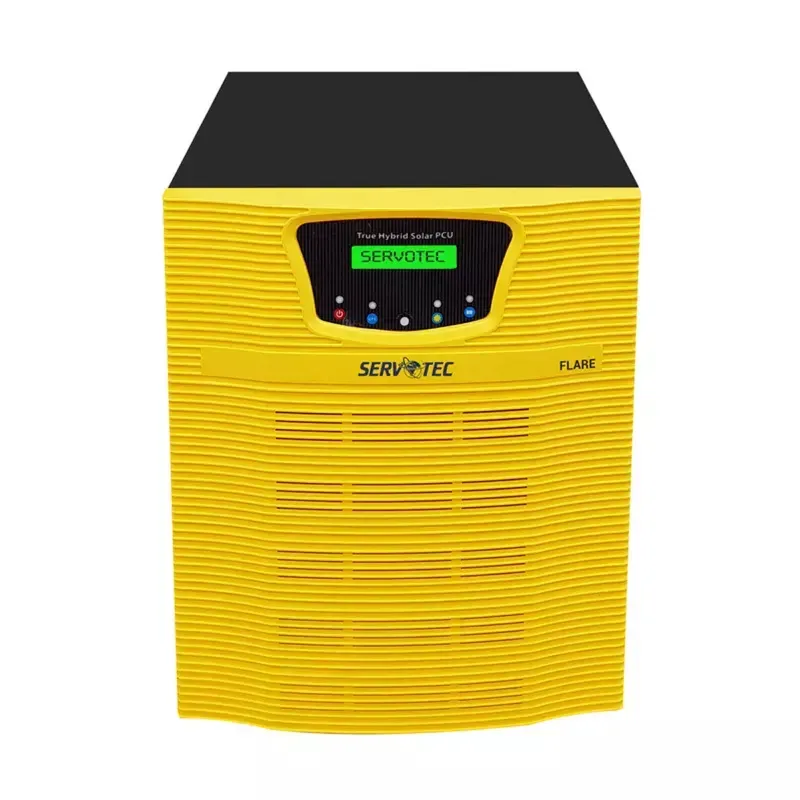

Servotech 10 kVA 120 V Flare Series 10120 MPPT Off, Grid Sinewave Intelligent Solar Inverter with 2 Year Warranty
In Stock
₹1,01,970₹1,25,000-18% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Servotech |
| Weight (Approx.) | 69 kg |
| Model | STF-PCUOGM-10120/S11 |
| Capacity | 1000VA |
| Operating DC Voltage | 120V |
| Typical Efficiency | ≥82% |
| Switching Element | IGBT |
| Charger Topology | Boost MOSFET |
| Dimension (L x W x H) | 520 X 400 X 640 mm |
| Nominal Grid Voltage | 230V |
| Nominal Frequency | 50Hz |
| Frequency Range | 45-55 Hz ± 1 Hz |
| Output PF | 0.7 |
| Battery Charging Method (5 Stage) | Bulk/Absorption/Float/Equalize |
| Grid-Battery Charging | TUB (Default) : Boost : 14.4V ± 0.2V (Each Battery) |
| Grid-Battery Charging Current | Enable : Default : 15A±1A |
| Grid Reconnect @Battery Voltage | 11.7V ±0.2V (Each Battery) |
| Grid Low Cut Voltage | UPS Mode Enable : 170V±10V |
| Grid Low Cut Recovery | UPS Mode Enable : 180V±10V |
| Grid High Cut Voltage | UPS Mode Enable : 265V ±10V |
| Grid High Cut Recovery | UPS Mode Enable : 255V ±10V |
| Changeover (Batt. to Mains) | UPS Mode Enable/Disable : <6ms/<6ms |
| Changeover ((Mains to Batt) | UPS Mode Enable/Disable : <6ms/<30ms |
| Output Phase | Single Phase |
| Output Waveform | Sinewave |
| Nominal Output Voltage | 220V ± 5% |
| Max. Output Current | 35A |
| Discharging Current | 70A±2A |
| Battery Low Buzzer | 10.8V ±0.02V (Each Battery) |
| Battery Low Cut | 10.5V ±0.02V (Each Battery) |
| Battery High Cut | 16.5V ±0.02V (Each Battery) |
| Voltage THD | <3% (Linear Load) |
| Overload Capacity | UPS Mode Disable : >110% 3-Times Auto Reset with 30sec. Delay and 4th Time Shut Down |
| Protection | Overload, Battery Low, Battery High, Over Temperature, Short Circuit, PV Reverse, PV High, Mains Fuse Trip, Grid Overload, Wiring |
| POWER | Function : ON/OFF UPS Output : SYSTEM ON-LED ON, SYSTEM OFF-LED OFF |
| Inverter/UPS | When it is Short Pressed it Enable UPS/Inverter Mode Selection. When it is long Pressed Enables the UPS Parameter Setting - UPS Mode ON-LED ON, UPS Mode OFF-LED OFF |
| SMF/TUB | When it is Pressed it Enables TUBULAR/SMF Battery Selection - TUBULAR Battery-LED ON, SMF Battery LED OFF |
| Hybrid/PCU | When it is short pressed it enables Hybrid/PCU Mode Selection - PCU Mode - LED ON, Hybrid Mode - LED OFF |
| Only LED | Solar Status Green/Red - Green LED ON - Full Solar used, Green LED Blinking - Partial Solar used, Green LED OFF No Solar used, Red LED ON-PV Reverse Protection, Red LED OFF-No Protection Selected |
| Display | Battery Voltage, Solar Charging Current, Grid Charging Current, Solar Load Current, Grid Voltage, Grid Frequency, Output Voltage, Output Frequency, Load in % on Battery, Load in % on Solar, Charging Mode, Protection, Charging Mode, Solar Kwh (Saving), Solar Availability Status, Solar Working Mode (Hybrid/PCU Lite/PCU Ultra), UPS ON/OFF |
| Input Voltage Range (Min Max) | 200-360 VDC |
| Maximum PV Power Recommended | 10 KW |
| Controller | ARM-Cortex |
| Type of Charger | MPPT |
| Efficiency | 95% |
| Operating Temperature | 0-50°C |
| Cooling | Fan |
| Max. Relative Humidity (@25°C (Non Condensing) | 95% |
| Noise 1 Meter | 50dB |
| Standard Compliance | IP20 |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Servotech 10 kVA 120 V Flare Series 10120 MPPT Off, Grid Sinewave Intelligent Solar Inverter with 2 Year Warranty
Servotech 10 kVA 120 V Flare Series 10120 MPPT Off, Grid Sinewave Intelligent Solar Inverter with 2 Year Warranty is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by Servotech. Key specifications include weight (approx.) 69 kg, capacity 1000VA, operating dc voltage 120V, typical efficiency ≥82%, switching element IGBT. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Servotech 10 kVA 120 V Flare Series 10120 MPPT Off, Grid Sinewave Intelligent Solar Inverter with 2 Year Warranty specifications
| Weight (Approx.) | 69 kg |
|---|---|
| Capacity | 1000VA |
| Operating DC Voltage | 120V |
| Typical Efficiency | ≥82% |
| Switching Element | IGBT |
| Charger Topology | Boost MOSFET |
| Dimension (L x W x H) | 520 X 400 X 640 mm |
| Nominal Grid Voltage | 230V |
| Nominal Frequency | 50Hz |
| Frequency Range | 45-55 Hz ± 1 Hz |
| Output PF | 0.7 |
| Battery Charging Method (5 Stage) | Bulk/Absorption/Float/Equalize |
FAQs related to Servotech 10 kVA 120 V Flare Series 10120 MPPT Off, Grid Sinewave Intelligent Solar Inverter with 2 Year Warranty
Can dealers or distributors get a custom quote for Servotech 10 kVA 120 V Flare Series 10120 MPPT Off, Grid Sinewave Intelligent Solar Inverter with 2 Year Warranty in large volumes?
+
Yes — use the RFQ feature for dealer or distributor-level Servotech 10 kVA 120 V Flare Series 10120 MPPT Off, Grid Sinewave Intelligent Solar Inverter with 2 Year Warranty orders. Our sales team provides a dedicated quote and delivery plan for bulk agricultural equipment purchases.
Are spare parts or accessories for Servotech 10 kVA 120 V Flare Series 10120 MPPT Off, Grid Sinewave Intelligent Solar Inverter with 2 Year Warranty also available on ToolHaat?
+
Many Servotech 10 kVA 120 V Flare Series 10120 MPPT Off, Grid Sinewave Intelligent Solar Inverter with 2 Year Warranty categories on ToolHaat also list compatible accessories and spare parts separately — check related subcategories or use search to find parts matching your specific model.
Can I compare different brands and price points for Servotech 10 kVA 120 V Flare Series 10120 MPPT Off, Grid Sinewave Intelligent Solar Inverter with 2 Year Warranty before buying?
+
Yes — ToolHaat lists Servotech 10 kVA 120 V Flare Series 10120 MPPT Off, Grid Sinewave Intelligent Solar Inverter with 2 Year Warranty from multiple vendors and brands at different price points and specifications, so you can compare before committing to a bulk purchase.
Is Servotech 10 kVA 120 V Flare Series 10120 MPPT Off, Grid Sinewave Intelligent Solar Inverter with 2 Year Warranty suitable for both small farms and large agricultural operations?
+
ToolHaat lists Servotech 10 kVA 120 V Flare Series 10120 MPPT Off, Grid Sinewave Intelligent Solar Inverter with 2 Year Warranty across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
What if Servotech 10 kVA 120 V Flare Series 10120 MPPT Off, Grid Sinewave Intelligent Solar Inverter with 2 Year Warranty arrives damaged or doesn’t match the listed specifications?
+
Contact ToolHaat support with your order ID and photos if Servotech 10 kVA 120 V Flare Series 10120 MPPT Off, Grid Sinewave Intelligent Solar Inverter with 2 Year Warranty arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.
