Polycab · SKU: thagri10698

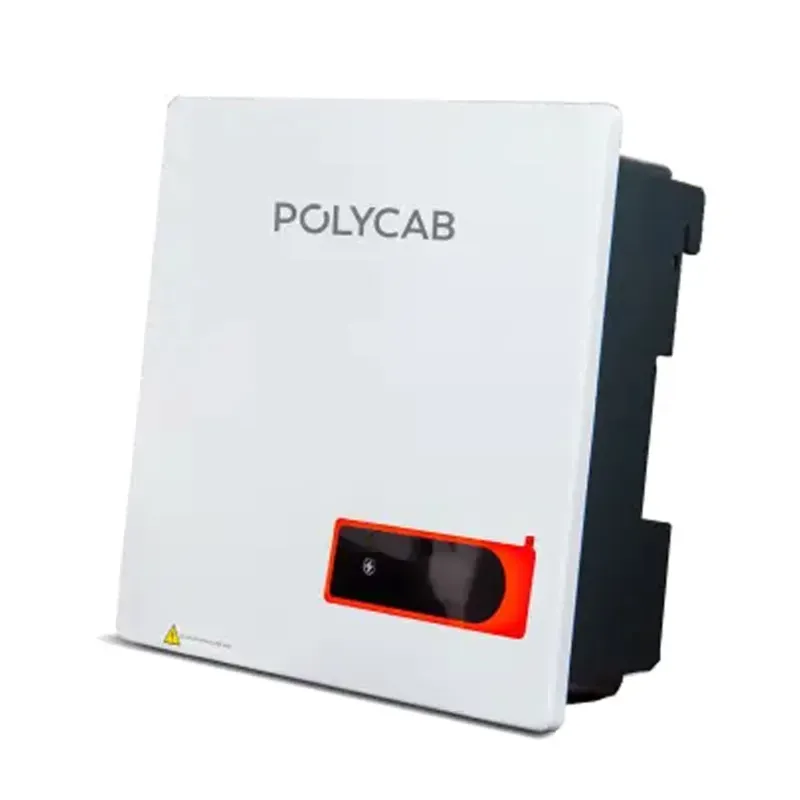

Polycab PSIT-6K-SM1R2 Grid Tie Inverter, 6 kW Three Phase-1MPPT, For Residential & Commercial Use
In Stock
₹59,499₹78,700-24% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Polycab |
| Weight (Approx.) | 17 kg |
| Model | PSIT-6K SM1R2 |
| Rating | 6 kW |
| Max. Input Voltage | 1100V |
| Max. PV Configuration (STC) | 150% |
| Rated / Nominal Input Voltage | 620V |
| Max. Input Current | 20A |
| Max. Short Circuit Current | 30A |
| Start Input Voltage | 180V |
| MPPT Operating Voltage Range | 160-1000V |
| Full Power MPPT Voltage | 190V-500V |
| Max. Number of PV Strings | 1 |
| No. of MPPTs | 1 |
| Rated AC Active Power | 6,000W |
| Max. AC Apparent Power | 6,600VA |
| Max. AC Active Power (PF=1) | 6,600W |
| Max. AC Output Current | 3*10.1A |
| Rated AC Voltage | 380V/400V/415V, 3W+N+PE |
| AC Voltage Range | 260V- 510V (Adjustable ) |
| Rated Grid Frequency | 50Hz/60Hz |
| Grid Frequency Range | 45Hz-55Hz / 55Hz-65Hz (Adjustable) |
| THDi | <3% (Rated Power) |
| DC Current Injection | <0.5% (Rated Current) |
| Power Factor | > 0.99 Rated Power (Adjustable 0.8 LD - 0.8 LG) |
| Max. Efficiency | 97.8% |
| Europe Efficiency | 96.5% |
| Topology | Transformer-less |
| IP Rating | IP66 |
| Night Self Consumption | <1W |
| Cooling | Natural Cooling |
| Operating Temperature Range | -25°C to 60°C |
| Relative Humidity Range | 0-100% |
| Max. Operating Altitude | 4000m |
| Noise(typical) | <30dB |
| Dimensions (WxHxD) | 398 x 460 x 190 mm |
| High Efficiency | Optimized for maximum energy harvest with advanced MPPT (Maximum Power Point Tracking) technology. |
| Three-Phase Stability | Designed for balanced power distribution, making it ideal for modern homes and commercial units with three-phase connections. |
| Compact & Durable | Built with a lightweight yet rugged design to withstand diverse environmental conditions. |
| Safety First | Features integrated protection against overvoltage, short circuits, and DC reverse polarity. |
| User-Friendly Monitoring | Supports smart monitoring interfaces to track real-time power generation and system health. |
| Long-Term Reliability | Comes with an industry-leading 8-year warranty, ensuring peace of mind and a faster return on investment. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Polycab PSIT-6K-SM1R2 Grid Tie Inverter, 6 kW Three Phase-1MPPT, For Residential & Commercial Use
Polycab PSIT-6K-SM1R2 Grid Tie Inverter, 6 kW Three Phase-1MPPT, For Residential & Commercial Use is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by Polycab. Key specifications include weight (approx.) 17 kg, rating 6 kW, max. input voltage 1100V, max. pv configuration (stc) 150%, rated / nominal input voltage 620V. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Polycab PSIT-6K-SM1R2 Grid Tie Inverter, 6 kW Three Phase-1MPPT, For Residential & Commercial Use specifications
| Weight (Approx.) | 17 kg |
|---|---|
| Rating | 6 kW |
| Max. Input Voltage | 1100V |
| Max. PV Configuration (STC) | 150% |
| Rated / Nominal Input Voltage | 620V |
| Max. Input Current | 20A |
| Max. Short Circuit Current | 30A |
| Start Input Voltage | 180V |
| MPPT Operating Voltage Range | 160-1000V |
| Full Power MPPT Voltage | 190V-500V |
| Max. Number of PV Strings | 1 |
| No. of MPPTs | 1 |
FAQs related to Polycab PSIT-6K-SM1R2 Grid Tie Inverter, 6 kW Three Phase-1MPPT, For Residential & Commercial Use
Does Polycab PSIT-6K-SM1R2 Grid Tie Inverter, 6 kW Three Phase-1MPPT, For Residential & Commercial Use come with a warranty or after-sales support?
+
Warranty terms for Polycab PSIT-6K-SM1R2 Grid Tie Inverter, 6 kW Three Phase-1MPPT, For Residential & Commercial Use vary by vendor and brand — check the product listing for specific coverage. ToolHaat support can help connect you with the vendor for warranty claims or service queries after purchase.
Can I compare different brands and price points for Polycab PSIT-6K-SM1R2 Grid Tie Inverter, 6 kW Three Phase-1MPPT, For Residential & Commercial Use before buying?
+
Yes — ToolHaat lists Polycab PSIT-6K-SM1R2 Grid Tie Inverter, 6 kW Three Phase-1MPPT, For Residential & Commercial Use from multiple vendors and brands at different price points and specifications, so you can compare before committing to a bulk purchase.
Can Polycab PSIT-6K-SM1R2 Grid Tie Inverter, 6 kW Three Phase-1MPPT, For Residential & Commercial Use orders be timed to arrive before the sowing or harvest season?
+
Yes — for seasonal equipment needs, place your Polycab PSIT-6K-SM1R2 Grid Tie Inverter, 6 kW Three Phase-1MPPT, For Residential & Commercial Use order with enough lead time before peak season, or contact our sales team to confirm stock availability and delivery timing ahead of sowing or harvest windows.
How long does delivery take for Polycab PSIT-6K-SM1R2 Grid Tie Inverter, 6 kW Three Phase-1MPPT, For Residential & Commercial Use orders, including to rural areas?
+
Delivery timelines for Polycab PSIT-6K-SM1R2 Grid Tie Inverter, 6 kW Three Phase-1MPPT, For Residential & Commercial Use are shown at checkout based on your pincode. ToolHaat delivers pan-India, including rural and semi-urban locations, though larger equipment may have a longer transit window than smaller accessories.
Can dealers or distributors get a custom quote for Polycab PSIT-6K-SM1R2 Grid Tie Inverter, 6 kW Three Phase-1MPPT, For Residential & Commercial Use in large volumes?
+
Yes — use the RFQ feature for dealer or distributor-level Polycab PSIT-6K-SM1R2 Grid Tie Inverter, 6 kW Three Phase-1MPPT, For Residential & Commercial Use orders. Our sales team provides a dedicated quote and delivery plan for bulk agricultural equipment purchases.
