Polycab · SKU: thagri10713

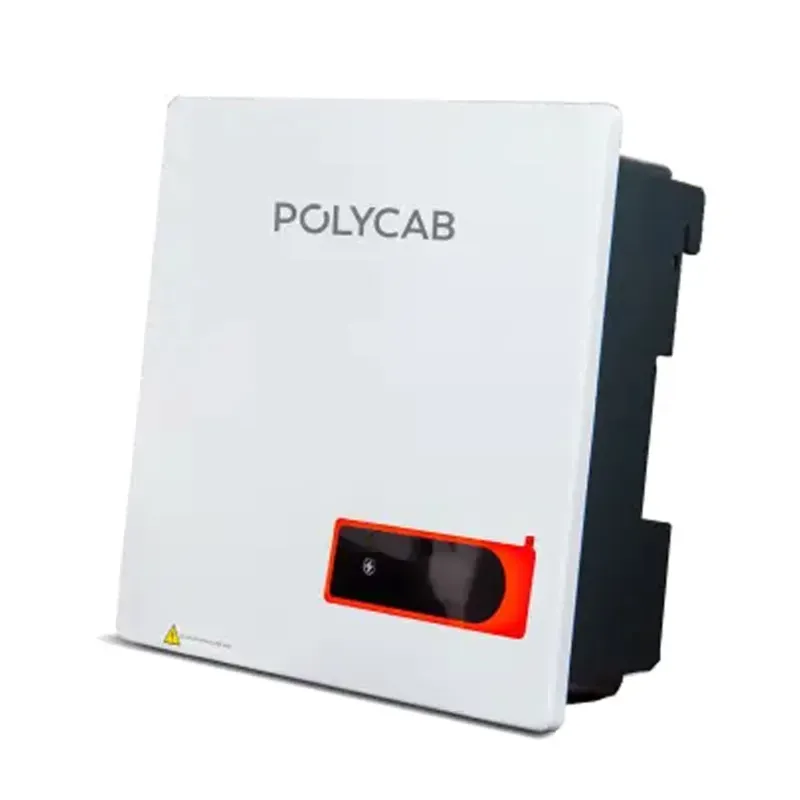

Polycab PSIT-5K-SM1R2 Grid Tie Inverter, 5 kW Three Phase-1MPPT, For Residential & Commercial Use
In Stock
₹58,905₹77,400-24% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Polycab |
| Weight (Approx.) | 17 kg |
| Model | PSIT-5K SM1R2 |
| Rating | 5 kW |
| Max. Input Voltage | 1100V |
| Max. PV Configuration (STC) | 150% |
| Rated / Nominal Input Voltage | 620V |
| Max. Input Current | 20A |
| Max. Short Circuit Current | 30A |
| Start Input Voltage | 180V |
| MPPT Operating Voltage Range | 160-1000V |
| Full Power MPPT Voltage | 190V-500V |
| Max. Number of PV Strings | 1 |
| No. of MPPTs | 1 |
| Rated AC Active Power | 5,000W |
| Max. AC Apparent Power | 5,500VA |
| Max. AC Active Power (PF=1) | 5,500W |
| Max. AC Output Current | 3*8.4A |
| Rated AC Voltage | 380V/400V/415V, 3W+N+PE |
| AC Voltage Range | 260V- 510V (Adjustable ) |
| Rated Grid Frequency | 50Hz/60Hz |
| Grid Frequency Range | 45Hz-55Hz / 55Hz-65Hz (Adjustable) |
| THDi | <3% (Rated Power) |
| DC Current Injection | <0.5% (Rated Current) |
| Power Factor | > 0.99 Rated Power (Adjustable 0.8 LD - 0.8 LG) |
| Max. Efficiency | 97.8% |
| Europe Efficiency | 96.2% |
| Topology | Transformer-less |
| IP Rating | IP66 |
| Night Self Consumption | <1W |
| Cooling | Natural Cooling |
| Operating Temperature Range | -25°C to 60°C |
| Relative Humidity Range | 0-100% |
| Max. Operating Altitude | 4000m |
| Noise(typical) | <30dB |
| Dimensions (WxHxD) | 398 x 460 x 190 mm |
| High Efficiency | Maximum efficiency of 98.4% with a wide MPPT voltage range (160V – 1000V) to ensure optimal power generation even in low-light conditions. |
| Module Compatibility | Designed to support high-power modules (600W+), making it future-proof for modern solar panel technologies. |
| Advanced Protection | Built-in DC/AC Type III Surge Protection Devices (SPD), anti-islanding protection, DC reverse polarity protection, and short-circuit protection. |
| Smart Monitoring | Supports remote monitoring via Wi-Fi/GPRS/RS485 through a dedicated mobile app and web portal for real-time performance tracking. |
| Robust Design | IP66-rated waterproof and dustproof die-cast aluminum cabinet with C5 anti-corrosion protection. |
| Quiet Operation | Natural cooling technology keeps noise levels below 30dB, making it ideal for residential areas. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Polycab PSIT-5K-SM1R2 Grid Tie Inverter, 5 kW Three Phase-1MPPT, For Residential & Commercial Use
Polycab PSIT-5K-SM1R2 Grid Tie Inverter, 5 kW Three Phase-1MPPT, For Residential & Commercial Use is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by Polycab. Key specifications include weight (approx.) 17 kg, rating 5 kW, max. input voltage 1100V, max. pv configuration (stc) 150%, rated / nominal input voltage 620V. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Polycab PSIT-5K-SM1R2 Grid Tie Inverter, 5 kW Three Phase-1MPPT, For Residential & Commercial Use specifications
| Weight (Approx.) | 17 kg |
|---|---|
| Rating | 5 kW |
| Max. Input Voltage | 1100V |
| Max. PV Configuration (STC) | 150% |
| Rated / Nominal Input Voltage | 620V |
| Max. Input Current | 20A |
| Max. Short Circuit Current | 30A |
| Start Input Voltage | 180V |
| MPPT Operating Voltage Range | 160-1000V |
| Full Power MPPT Voltage | 190V-500V |
| Max. Number of PV Strings | 1 |
| No. of MPPTs | 1 |
