Polycab · SKU: thagri10708

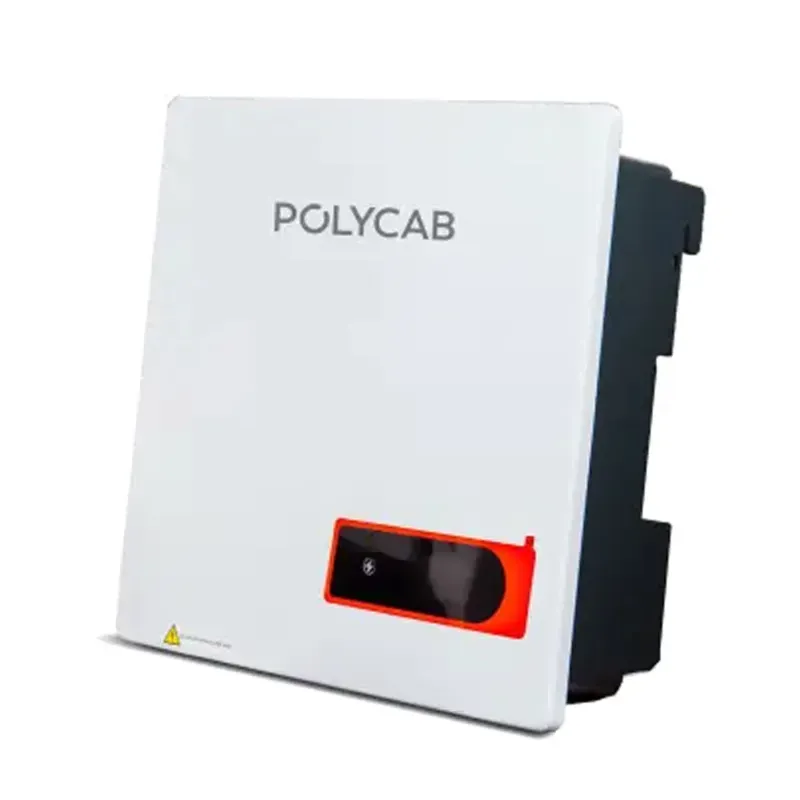

Polycab PSIT-15K-SM3 Grid Tie Inverter, 15 kW Three Phase-2MPPT, For Residential & Commercial Use
In Stock
₹88,110₹1,15,700-24% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Polycab |
| Weight (Approx.) | 17 kg |
| Model | PSIT-15K-SM3 |
| Rating | 15 kW |
| Max. Input Voltage | 1100V |
| Max. PV Configuration (STC) | 150% |
| Rated / Nominal Input Voltage | 620V |
| Max. Input Current | 15A + 30A |
| Max. Short Circuit Current | 20A + 40A |
| Start Input Voltage | 180V |
| MPPT Operating Voltage Range | 160-1000V |
| Full Power MPPT Voltage | 190V-500V |
| Max. Number of PV Strings | 3(1/2) |
| No. of MPPTs | 2 |
| Rated AC Active Power | 15,000W |
| Max. AC Apparent Power | 16,700VA |
| Max. AC Active Power (PF=1) | 16,700W |
| Max. AC Output Current | 3*25.3A |
| Rated AC Voltage | 380V/400V/415V, 3W+N+PE |
| AC Voltage Range | 260V- 510V (Adjustable ) |
| Rated Grid Frequency | 50Hz/60Hz |
| Grid Frequency Range | 45Hz-55Hz / 55Hz-65Hz (Adjustable) |
| THDi | <3% (Rated Power) |
| DC Current Injection | <0.5% (Rated Current) |
| Power Factor | > 0.99 Rated Power (Adjustable 0.8 LD - 0.8 LG) |
| Max. Efficiency | 98.3% |
| Europe Efficiency | 97.8% |
| Topology | Transformer-less |
| IP Rating | IP66 |
| Night Self Consumption | <1W |
| Cooling | Natural Cooling |
| Operating Temperature Range | -25°C to 60°C |
| Relative Humidity Range | 0-100% |
| Max. Operating Altitude | 4000m |
| Noise(typical) | <30dB |
| Dimensions (WxHxD) | 398 x 460 x 190 mm |
| Superior Efficiency | Boasts a maximum efficiency of 98.4% and supports up to 150% DC overloading, allowing you to install more solar panels for better performance in low-light conditions. |
| Dual MPPT Design | Two independent trackers ensure the system captures maximum energy even if panels are installed on different roof orientations or face partial shading. |
| Robust Protection | Includes built-in Type III DC and AC surge protection, anti-islanding protection, and DC reverse polarity protection to safeguard the entire solar system. |
| High Power Compatibility | Designed to be compatible with modern high-wattage modules (600W+) and high-efficiency TOPCon solar cells. |
| Intelligent Monitoring | Features WiFi/GPRS/4G connectivity options for remote monitoring via a dedicated mobile app or web portal, enabling real-time performance tracking and remote configuration. |
| Durable Build | The die-cast aluminum case is C5 anti-corrosion rated, making it suitable for harsh environments and ensuring a long design life of over 20 years. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Polycab PSIT-15K-SM3 Grid Tie Inverter, 15 kW Three Phase-2MPPT, For Residential & Commercial Use
Polycab PSIT-15K-SM3 Grid Tie Inverter, 15 kW Three Phase-2MPPT, For Residential & Commercial Use is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by Polycab. Key specifications include weight (approx.) 17 kg, rating 15 kW, max. input voltage 1100V, max. pv configuration (stc) 150%, rated / nominal input voltage 620V. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Polycab PSIT-15K-SM3 Grid Tie Inverter, 15 kW Three Phase-2MPPT, For Residential & Commercial Use specifications
| Weight (Approx.) | 17 kg |
|---|---|
| Rating | 15 kW |
| Max. Input Voltage | 1100V |
| Max. PV Configuration (STC) | 150% |
| Rated / Nominal Input Voltage | 620V |
| Max. Input Current | 15A + 30A |
| Max. Short Circuit Current | 20A + 40A |
| Start Input Voltage | 180V |
| MPPT Operating Voltage Range | 160-1000V |
| Full Power MPPT Voltage | 190V-500V |
| Max. Number of PV Strings | 3(1/2) |
| No. of MPPTs | 2 |
FAQs related to Polycab PSIT-15K-SM3 Grid Tie Inverter, 15 kW Three Phase-2MPPT, For Residential & Commercial Use
Is Polycab PSIT-15K-SM3 Grid Tie Inverter, 15 kW Three Phase-2MPPT, For Residential & Commercial Use suitable for both small farms and large agricultural operations?
+
ToolHaat lists Polycab PSIT-15K-SM3 Grid Tie Inverter, 15 kW Three Phase-2MPPT, For Residential & Commercial Use across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
Can dealers or distributors get a custom quote for Polycab PSIT-15K-SM3 Grid Tie Inverter, 15 kW Three Phase-2MPPT, For Residential & Commercial Use in large volumes?
+
Yes — use the RFQ feature for dealer or distributor-level Polycab PSIT-15K-SM3 Grid Tie Inverter, 15 kW Three Phase-2MPPT, For Residential & Commercial Use orders. Our sales team provides a dedicated quote and delivery plan for bulk agricultural equipment purchases.
Are spare parts or accessories for Polycab PSIT-15K-SM3 Grid Tie Inverter, 15 kW Three Phase-2MPPT, For Residential & Commercial Use also available on ToolHaat?
+
Many Polycab PSIT-15K-SM3 Grid Tie Inverter, 15 kW Three Phase-2MPPT, For Residential & Commercial Use categories on ToolHaat also list compatible accessories and spare parts separately — check related subcategories or use search to find parts matching your specific model.
What is the bulk pricing structure for Polycab PSIT-15K-SM3 Grid Tie Inverter, 15 kW Three Phase-2MPPT, For Residential & Commercial Use?
+
Polycab PSIT-15K-SM3 Grid Tie Inverter, 15 kW Three Phase-2MPPT, For Residential & Commercial Use on ToolHaat uses tiered bulk pricing — cost per unit drops as order quantity rises, shown on the product page. For dealer-volume or distributor-level quantities, an RFQ gets you a dedicated quote.
What if Polycab PSIT-15K-SM3 Grid Tie Inverter, 15 kW Three Phase-2MPPT, For Residential & Commercial Use arrives damaged or doesn’t match the listed specifications?
+
Contact ToolHaat support with your order ID and photos if Polycab PSIT-15K-SM3 Grid Tie Inverter, 15 kW Three Phase-2MPPT, For Residential & Commercial Use arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.
