Polycab · SKU: thagri10718

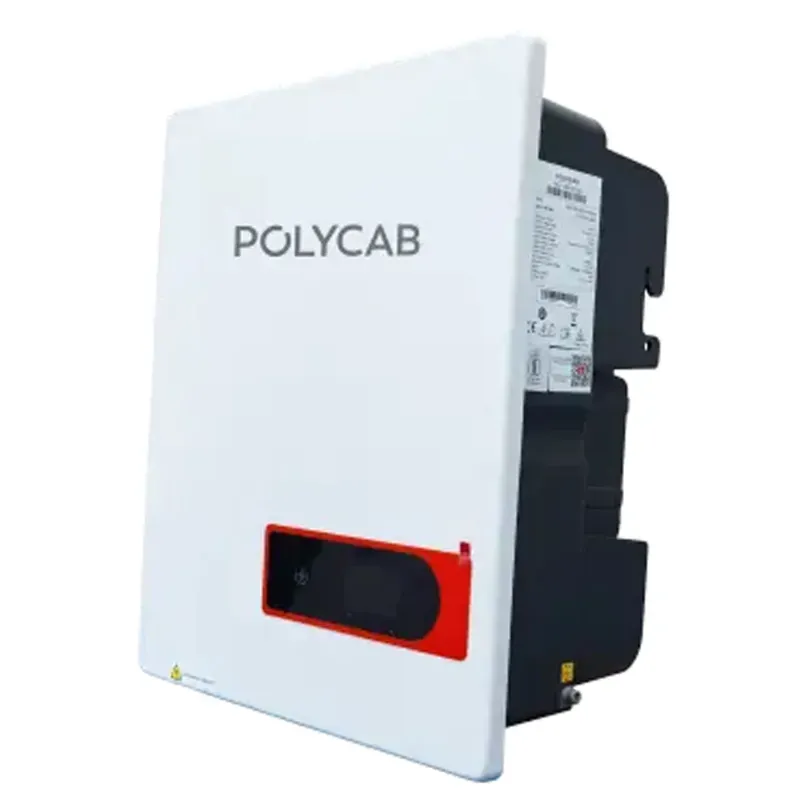

Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-2MPPT, For Residential & Commercial Use
In Stock
₹67,320₹88,400-24% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Polycab |
| Weight (Approx.) | 17 kg |
| Max. Input Voltage | 1100V |
| Max. PV Configuration (STC) | 150% |
| Rated / Nominal Input Voltage | 620V |
| Max. Input Current | 20A |
| Max. Short Circuit Current | 30A |
| Start Input Voltage | 180V |
| MPPT Operating Voltage Range | 160-1000V |
| Full Power MPPT Voltage | 190V-500V |
| Max. Number of PV Strings | 1 |
| No. of MPPTs | 2 |
| Rated AC Active Power | 10,000W |
| Max. AC Apparent Power | 11,200VA |
| Max. AC Active Power (PF=1) | 11,200W |
| Max. AC Output Current | 3*17A |
| Rated AC Voltage | 380V/400V/415V, 3W+N+PE |
| AC Voltage Range | 260V- 510V (Adjustable ) |
| Rated Grid Frequency | 50Hz/60Hz |
| Grid Frequency Range | 45Hz-55Hz / 55Hz-65Hz (Adjustable) |
| THDi | <3% (Rated Power) |
| DC Current Injection | <0.5% (Rated Current) |
| Power Factor | > 0.99 Rated Power (Adjustable 0.8 LD - 0.8 LG) |
| Max. Efficiency | 97.8% |
| Europe Efficiency | 97.1% |
| Topology | Transformer-less |
| IP Rating | IP66 |
| Night Self Consumption | <1W |
| Cooling | Natural Cooling |
| Operating Temperature Range | -25°C to 60°C |
| Relative Humidity Range | 0-100% |
| Max. Operating Altitude | 4000m |
| Noise(typical) | <30dB |
| Dimensions (WxHxD) | 398 x 460 x 190 mm |
| Dual MPPT Design | Two independent trackers allow for flexible solar string configurations and maximum power generation from different roof orientations. |
| High Efficiency | Delivers a maximum efficiency of up to 98.3%, minimizing energy loss during DC to AC conversion. |
| Smart Monitoring | Integrated Wi-Fi/RS485 communication for real-time performance tracking via the Polycab mobile app and web portal. |
| Rugged Protection | IP66-rated waterproof and dustproof die-cast aluminum housing with C5 anti-corrosion protection. |
| Module Compatibility | Designed to handle high-power modules (600W+), supporting a maximum input current of up to 15A/20A per string. |
| Safety First | Built-in DC/AC Type III surge protection, anti-islanding protection, and leakage current monitoring. |
| Overloading Capability | Supports up to 150% DC overloading, allowing for more solar panels to be connected to maximize output during low-light hours. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-2MPPT, For Residential & Commercial Use
Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-2MPPT, For Residential & Commercial Use is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by Polycab. Key specifications include weight (approx.) 17 kg, max. input voltage 1100V, max. pv configuration (stc) 150%, rated / nominal input voltage 620V, max. input current 20A. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-2MPPT, For Residential & Commercial Use specifications
| Weight (Approx.) | 17 kg |
|---|---|
| Max. Input Voltage | 1100V |
| Max. PV Configuration (STC) | 150% |
| Rated / Nominal Input Voltage | 620V |
| Max. Input Current | 20A |
| Max. Short Circuit Current | 30A |
| Start Input Voltage | 180V |
| MPPT Operating Voltage Range | 160-1000V |
| Full Power MPPT Voltage | 190V-500V |
| Max. Number of PV Strings | 1 |
| No. of MPPTs | 2 |
| Rated AC Active Power | 10,000W |
FAQs related to Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-2MPPT, For Residential & Commercial Use
Is Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-2MPPT, For Residential & Commercial Use suitable for both small farms and large agricultural operations?
+
ToolHaat lists Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-2MPPT, For Residential & Commercial Use across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
Can dealers or distributors get a custom quote for Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-2MPPT, For Residential & Commercial Use in large volumes?
+
Yes — use the RFQ feature for dealer or distributor-level Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-2MPPT, For Residential & Commercial Use orders. Our sales team provides a dedicated quote and delivery plan for bulk agricultural equipment purchases.
Can I compare different brands and price points for Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-2MPPT, For Residential & Commercial Use before buying?
+
Yes — ToolHaat lists Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-2MPPT, For Residential & Commercial Use from multiple vendors and brands at different price points and specifications, so you can compare before committing to a bulk purchase.
How long does delivery take for Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-2MPPT, For Residential & Commercial Use orders, including to rural areas?
+
Delivery timelines for Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-2MPPT, For Residential & Commercial Use are shown at checkout based on your pincode. ToolHaat delivers pan-India, including rural and semi-urban locations, though larger equipment may have a longer transit window than smaller accessories.
Does Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-2MPPT, For Residential & Commercial Use come with a warranty or after-sales support?
+
Warranty terms for Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-2MPPT, For Residential & Commercial Use vary by vendor and brand — check the product listing for specific coverage. ToolHaat support can help connect you with the vendor for warranty claims or service queries after purchase.
