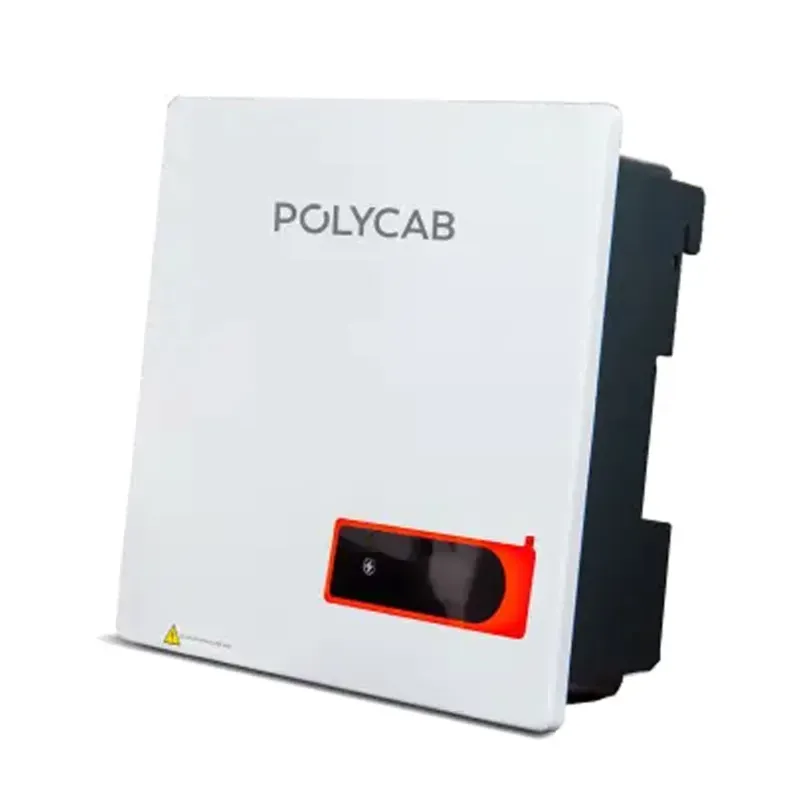

Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-1MPPT, For Residential & Commercial Use
In Stock
₹61,380₹80,600-24% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Polycab |
| Weight (Approx.) | 17 kg |
| Model | PSIT-10K SM1R2 |
| Rating | 10 kW |
| Max. Input Voltage | 1100V |
| Max. PV Configuration (STC) | 150% |
| Rated / Nominal Input Voltage | 620V |
| Max. Input Current | 20A |
| Max. Short Circuit Current | 30A |
| Start Input Voltage | 180V |
| MPPT Operating Voltage Range | 160-1000V |
| Full Power MPPT Voltage | 190V-500V |
| Max. Number of PV Strings | 1 |
| No. of MPPTs | 1 |
| Rated AC Active Power | 10,000W |
| Max. AC Apparent Power | 11,200VA |
| Max. AC Active Power (PF=1) | 11,200W |
| Max. AC Output Current | 3*17A |
| Rated AC Voltage | 380V/400V/415V, 3W+N+PE |
| AC Voltage Range | 260V- 510V (Adjustable ) |
| Rated Grid Frequency | 50Hz/60Hz |
| Grid Frequency Range | 45Hz-55Hz / 55Hz-65Hz (Adjustable) |
| THDi | <3% (Rated Power) |
| DC Current Injection | <0.5% (Rated Current) |
| Power Factor | > 0.99 Rated Power (Adjustable 0.8 LD - 0.8 LG) |
| Max. Efficiency | 97.8% |
| Europe Efficiency | 97.1% |
| Topology | Transformer-less |
| IP Rating | IP66 |
| Night Self Consumption | <1W |
| Cooling | Natural Cooling |
| Operating Temperature Range | -25°C to 60°C |
| Relative Humidity Range | 0-100% |
| Max. Operating Altitude | 4000m |
| Noise(typical) | <30dB |
| Dimensions (WxHxD) | 398 x 460 x 190 mm |
| High Efficiency | Boasts a maximum efficiency of over 98%, ensuring minimal energy loss during conversion. |
| Single MPPT Tracker | Optimized for installations where panels are oriented in a single direction, providing precise power tracking. |
| Wide Input Voltage Range | Allows for flexible string sizing and starts generating power earlier in the morning. |
| IP65 Protection | Fully protected against dust and water, making it suitable for harsh outdoor environments. |
| Smart Monitoring | Supports RS485/WiFi/GPRS communication for real-time performance tracking via mobile or web apps. |
| Natural Cooling | Designed with advanced heat dissipation technology to operate quietly without the need for external fans. |
| Safety First | Includes integrated DC switch, overvoltage protection, and anti-islanding technology. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-1MPPT, For Residential & Commercial Use
Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-1MPPT, For Residential & Commercial Use is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by Polycab. Key specifications include weight (approx.) 17 kg, rating 10 kW, max. input voltage 1100V, max. pv configuration (stc) 150%, rated / nominal input voltage 620V. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-1MPPT, For Residential & Commercial Use specifications
| Weight (Approx.) | 17 kg |
|---|---|
| Rating | 10 kW |
| Max. Input Voltage | 1100V |
| Max. PV Configuration (STC) | 150% |
| Rated / Nominal Input Voltage | 620V |
| Max. Input Current | 20A |
| Max. Short Circuit Current | 30A |
| Start Input Voltage | 180V |
| MPPT Operating Voltage Range | 160-1000V |
| Full Power MPPT Voltage | 190V-500V |
| Max. Number of PV Strings | 1 |
| No. of MPPTs | 1 |
FAQs related to Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-1MPPT, For Residential & Commercial Use
Can dealers or distributors get a custom quote for Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-1MPPT, For Residential & Commercial Use in large volumes?
+
Yes — use the RFQ feature for dealer or distributor-level Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-1MPPT, For Residential & Commercial Use orders. Our sales team provides a dedicated quote and delivery plan for bulk agricultural equipment purchases.
What if Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-1MPPT, For Residential & Commercial Use arrives damaged or doesn’t match the listed specifications?
+
Contact ToolHaat support with your order ID and photos if Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-1MPPT, For Residential & Commercial Use arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.
Can Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-1MPPT, For Residential & Commercial Use orders be timed to arrive before the sowing or harvest season?
+
Yes — for seasonal equipment needs, place your Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-1MPPT, For Residential & Commercial Use order with enough lead time before peak season, or contact our sales team to confirm stock availability and delivery timing ahead of sowing or harvest windows.
Can I compare different brands and price points for Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-1MPPT, For Residential & Commercial Use before buying?
+
Yes — ToolHaat lists Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-1MPPT, For Residential & Commercial Use from multiple vendors and brands at different price points and specifications, so you can compare before committing to a bulk purchase.
What is the bulk pricing structure for Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-1MPPT, For Residential & Commercial Use?
+
Polycab PSIT-10K-SM1R2 Grid Tie Inverter, 10 kW Three Phase-1MPPT, For Residential & Commercial Use on ToolHaat uses tiered bulk pricing — cost per unit drops as order quantity rises, shown on the product page. For dealer-volume or distributor-level quantities, an RFQ gets you a dedicated quote.
