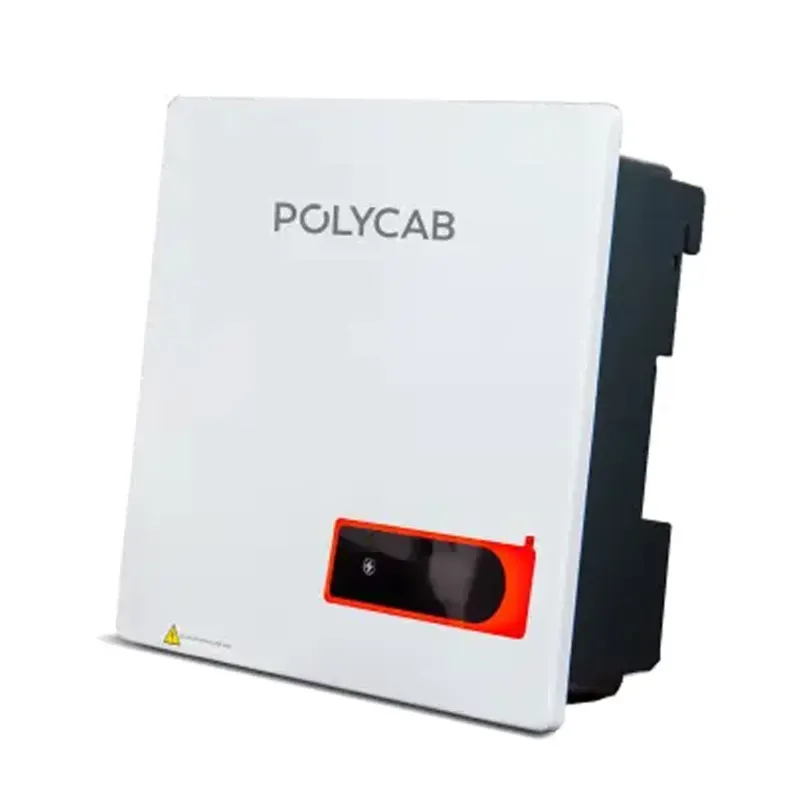

Polycab PSIS-6K0 Grid Tie Inverter, 6 kW Single Phase Inverter, For Residential & Commercial Use
In Stock
₹35,640₹46,900-24% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Polycab |
| Weight (Approx.) | 9 kg |
| Model | PSIS-6K0 |
| Rating | 6 kW |
| Max. Input Voltage | 550V |
| Max. PV Configuration (STC) | 150% |
| Rated / Nominal Input Voltage | 360V |
| Max. Input Current | 20A |
| Max. Short Circuit Current | 30A |
| Start Input Voltage | 50V |
| MPPT Operating Voltage Range | 40-540Vdc |
| Full Power MPPT Voltage | 320V-500V |
| Max. Number of PV Strings | 1 |
| No. of MPPTs | 1 |
| Rated AC Active Power | 6,000W |
| Max. AC Apparent Power | 6,600VA |
| Max. AC Active Power (PF=1) | 6,600W |
| Max. AC Output Current | 30A |
| Rated AC Voltage | 220V/230V/240V, L+N+PE |
| AC Voltage Range | 160V-300V (Adjustable) |
| Rated Grid Frequency | 50Hz/60Hz |
| Grid Frequency Range | 45Hz-55Hz / 55Hz-65Hz (Adjustable) |
| THDi | <3% (Rated Power) |
| DC Current Injection | <0.5%ln |
| Power Factor | > 0.99 Rated Power (Adjustable 0.8 LD - 0.8 LG) |
| Max. Efficiency | 97% |
| Europe Efficiency | 96.3% |
| Topology | Transformer-less |
| IP Rating | IP66 |
| Night Self Consumption | <1W |
| Cooling | Natural Cooling |
| Operating Temperature Range | -25°C to 60°C |
| Relative Humidity Range | 0-100% |
| Max. Operating Altitude | 4000m |
| Noise(typical) | 30dB |
| Dimensions (WxHxD) | 297 x 282 x 145 mm |
| Superior Efficiency | Boasts a maximum efficiency of up to 98.2%, ensuring minimal energy loss during DC-to-AC conversion. |
| Dual MPPT Design | Equipped with two MPPT trackers to optimize power generation from solar arrays facing different directions or experiencing uneven shading. |
| Wide Voltage Range | Features a low start-up voltage and an ultra-wide MPPT operating range (70V to 540V), allowing the system to start earlier and shut down later in the day. |
| Smart Monitoring | Integrated Wi-Fi/GPRS capabilities (optional) with a dedicated mobile app and web portal for real-time performance tracking and remote upgrades. |
| Rugged Construction | IP65/IP66 rated for dust and water resistance, making it suitable for both indoor and outdoor installations in harsh environments. |
| Comprehensive Protection | In-built DC/AC surge protection (Type III), anti-islanding, short-circuit, and over-voltage protection for maximum safety. |
| High Compatibility | Supports high-power modules (string current up to 15A to 20A) and allows for 150% DC overloading. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Polycab PSIS-6K0 Grid Tie Inverter, 6 kW Single Phase Inverter, For Residential & Commercial Use
Polycab PSIS-6K0 Grid Tie Inverter, 6 kW Single Phase Inverter, For Residential & Commercial Use is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by Polycab. Key specifications include weight (approx.) 9 kg, rating 6 kW, max. input voltage 550V, max. pv configuration (stc) 150%, rated / nominal input voltage 360V. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Polycab PSIS-6K0 Grid Tie Inverter, 6 kW Single Phase Inverter, For Residential & Commercial Use specifications
| Weight (Approx.) | 9 kg |
|---|---|
| Rating | 6 kW |
| Max. Input Voltage | 550V |
| Max. PV Configuration (STC) | 150% |
| Rated / Nominal Input Voltage | 360V |
| Max. Input Current | 20A |
| Max. Short Circuit Current | 30A |
| Start Input Voltage | 50V |
| MPPT Operating Voltage Range | 40-540Vdc |
| Full Power MPPT Voltage | 320V-500V |
| Max. Number of PV Strings | 1 |
| No. of MPPTs | 1 |
FAQs related to Polycab PSIS-6K0 Grid Tie Inverter, 6 kW Single Phase Inverter, For Residential & Commercial Use
What if Polycab PSIS-6K0 Grid Tie Inverter, 6 kW Single Phase Inverter, For Residential & Commercial Use arrives damaged or doesn’t match the listed specifications?
+
Contact ToolHaat support with your order ID and photos if Polycab PSIS-6K0 Grid Tie Inverter, 6 kW Single Phase Inverter, For Residential & Commercial Use arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.
Is a GST invoice provided for Polycab PSIS-6K0 Grid Tie Inverter, 6 kW Single Phase Inverter, For Residential & Commercial Use purchases?
+
Yes, every Polycab PSIS-6K0 Grid Tie Inverter, 6 kW Single Phase Inverter, For Residential & Commercial Use order comes with an automatically generated GST invoice, useful for input tax credit claims and standard farm-business accounting.
Does Polycab PSIS-6K0 Grid Tie Inverter, 6 kW Single Phase Inverter, For Residential & Commercial Use come with a warranty or after-sales support?
+
Warranty terms for Polycab PSIS-6K0 Grid Tie Inverter, 6 kW Single Phase Inverter, For Residential & Commercial Use vary by vendor and brand — check the product listing for specific coverage. ToolHaat support can help connect you with the vendor for warranty claims or service queries after purchase.
How long does delivery take for Polycab PSIS-6K0 Grid Tie Inverter, 6 kW Single Phase Inverter, For Residential & Commercial Use orders, including to rural areas?
+
Delivery timelines for Polycab PSIS-6K0 Grid Tie Inverter, 6 kW Single Phase Inverter, For Residential & Commercial Use are shown at checkout based on your pincode. ToolHaat delivers pan-India, including rural and semi-urban locations, though larger equipment may have a longer transit window than smaller accessories.
Is Polycab PSIS-6K0 Grid Tie Inverter, 6 kW Single Phase Inverter, For Residential & Commercial Use suitable for both small farms and large agricultural operations?
+
ToolHaat lists Polycab PSIS-6K0 Grid Tie Inverter, 6 kW Single Phase Inverter, For Residential & Commercial Use across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
