Polycab · SKU: thagri10685

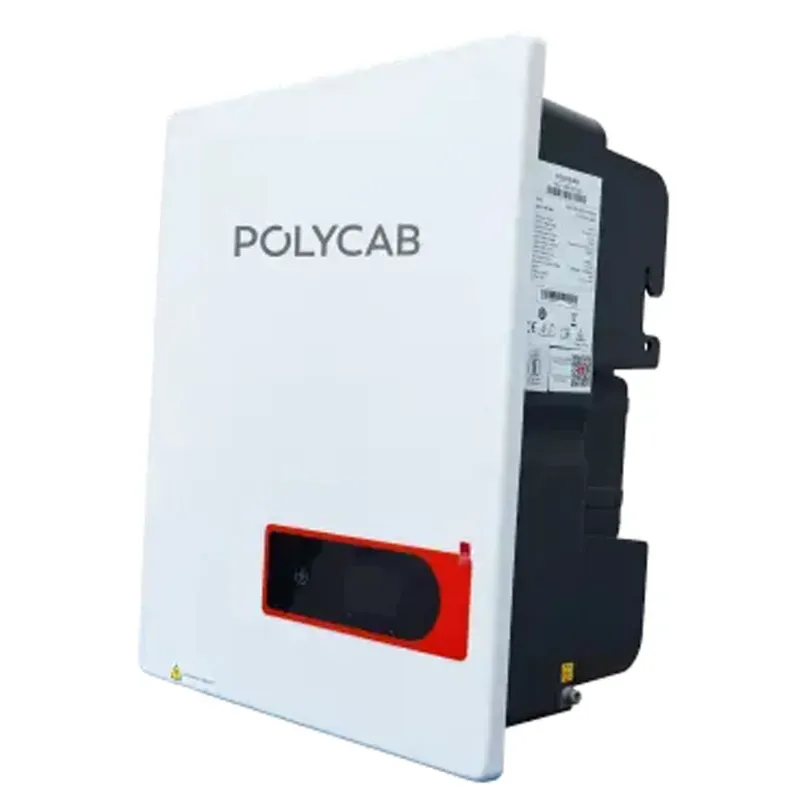

Polycab PSIS-5K0 Grid Tie Inverter, 5 kW Single Phase Inverter, For Residential & Commercial Use
In Stock
₹32,868₹43,300-24% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Polycab |
| Weight (Approx.) | 9 kg |
| Model | PSIS-5K0 |
| Rating | 5 kW |
| Max. Input Voltage | 550V |
| Max. PV Configuration (STC) | 150% |
| Rated / Nominal Input Voltage | 360V |
| Max. Input Current | 20A |
| Max. Short Circuit Current | 30A |
| Start Input Voltage | 50V |
| MPPT Operating Voltage Range | 40-540Vdc |
| Full Power MPPT Voltage | 260V-500V |
| Max. Number of PV Strings | 1 |
| No. of MPPTs | 1 |
| Rated AC Active Power | 5,000W |
| Max. AC Apparent Power | 5,500VA |
| Max. AC Active Power (PF=1) | 5,500W |
| Max. AC Output Current | 25A |
| Rated AC Voltage | 220V/230V/240V, L+N+PE |
| AC Voltage Range | 160V-300V (Adjustable) |
| Rated Grid Frequency | 50Hz/60Hz |
| Grid Frequency Range | 45Hz-55Hz / 55Hz-65Hz (Adjustable) |
| THDi | <3% (Rated Power) |
| DC Current Injection | <0.5%ln |
| Power Factor | > 0.99 Rated Power (Adjustable 0.8 LD - 0.8 LG) |
| Max. Efficiency | 97% |
| Europe Efficiency | 96.3% |
| Topology | Transformer-less |
| IP Rating | IP66 |
| Night Self Consumption | <1W |
| Cooling | Natural Cooling |
| Operating Temperature Range | -25°C to 60°C |
| Relative Humidity Range | 0-100% |
| Max. Operating Altitude | 4000m |
| Noise(typical) | 30dB |
| Dimensions (WxHxD) | 297 x 282 x 145 mm |
| High Efficiency | Boasts a maximum efficiency of up to 98.2%, ensuring minimal energy loss during the DC-to-AC conversion. |
| Intelligent Maintenance | Integrated WiFi and a dedicated mobile app allow for real-time remote monitoring and system health checks. |
| Wide MPPT Range | Features an ultra-wide MPPT operating range (70V - 550V), allowing the system to start generating power early in the morning and continue late into the evening. |
| Robust Protection | Built-in Type II DC/AC surge protection, anti-islanding, and short-circuit protection. |
| Warranty | Comes with a standard 8-year warranty (often extendable), reflecting its "Make in India" durability. |
| Compact Design | Designed for one-person installation with a weight of approximately 6.5kg to 9kg. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Polycab PSIS-5K0 Grid Tie Inverter, 5 kW Single Phase Inverter, For Residential & Commercial Use
Polycab PSIS-5K0 Grid Tie Inverter, 5 kW Single Phase Inverter, For Residential & Commercial Use is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by Polycab. Key specifications include weight (approx.) 9 kg, rating 5 kW, max. input voltage 550V, max. pv configuration (stc) 150%, rated / nominal input voltage 360V. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Polycab PSIS-5K0 Grid Tie Inverter, 5 kW Single Phase Inverter, For Residential & Commercial Use specifications
| Weight (Approx.) | 9 kg |
|---|---|
| Rating | 5 kW |
| Max. Input Voltage | 550V |
| Max. PV Configuration (STC) | 150% |
| Rated / Nominal Input Voltage | 360V |
| Max. Input Current | 20A |
| Max. Short Circuit Current | 30A |
| Start Input Voltage | 50V |
| MPPT Operating Voltage Range | 40-540Vdc |
| Full Power MPPT Voltage | 260V-500V |
| Max. Number of PV Strings | 1 |
| No. of MPPTs | 1 |
FAQs related to Polycab PSIS-5K0 Grid Tie Inverter, 5 kW Single Phase Inverter, For Residential & Commercial Use
Are spare parts or accessories for Polycab PSIS-5K0 Grid Tie Inverter, 5 kW Single Phase Inverter, For Residential & Commercial Use also available on ToolHaat?
+
Many Polycab PSIS-5K0 Grid Tie Inverter, 5 kW Single Phase Inverter, For Residential & Commercial Use categories on ToolHaat also list compatible accessories and spare parts separately — check related subcategories or use search to find parts matching your specific model.
Is Polycab PSIS-5K0 Grid Tie Inverter, 5 kW Single Phase Inverter, For Residential & Commercial Use suitable for both small farms and large agricultural operations?
+
ToolHaat lists Polycab PSIS-5K0 Grid Tie Inverter, 5 kW Single Phase Inverter, For Residential & Commercial Use across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
What if Polycab PSIS-5K0 Grid Tie Inverter, 5 kW Single Phase Inverter, For Residential & Commercial Use arrives damaged or doesn’t match the listed specifications?
+
Contact ToolHaat support with your order ID and photos if Polycab PSIS-5K0 Grid Tie Inverter, 5 kW Single Phase Inverter, For Residential & Commercial Use arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.
Does Polycab PSIS-5K0 Grid Tie Inverter, 5 kW Single Phase Inverter, For Residential & Commercial Use come with a warranty or after-sales support?
+
Warranty terms for Polycab PSIS-5K0 Grid Tie Inverter, 5 kW Single Phase Inverter, For Residential & Commercial Use vary by vendor and brand — check the product listing for specific coverage. ToolHaat support can help connect you with the vendor for warranty claims or service queries after purchase.
Can I compare different brands and price points for Polycab PSIS-5K0 Grid Tie Inverter, 5 kW Single Phase Inverter, For Residential & Commercial Use before buying?
+
Yes — ToolHaat lists Polycab PSIS-5K0 Grid Tie Inverter, 5 kW Single Phase Inverter, For Residential & Commercial Use from multiple vendors and brands at different price points and specifications, so you can compare before committing to a bulk purchase.
