Polycab · SKU: thagri10691

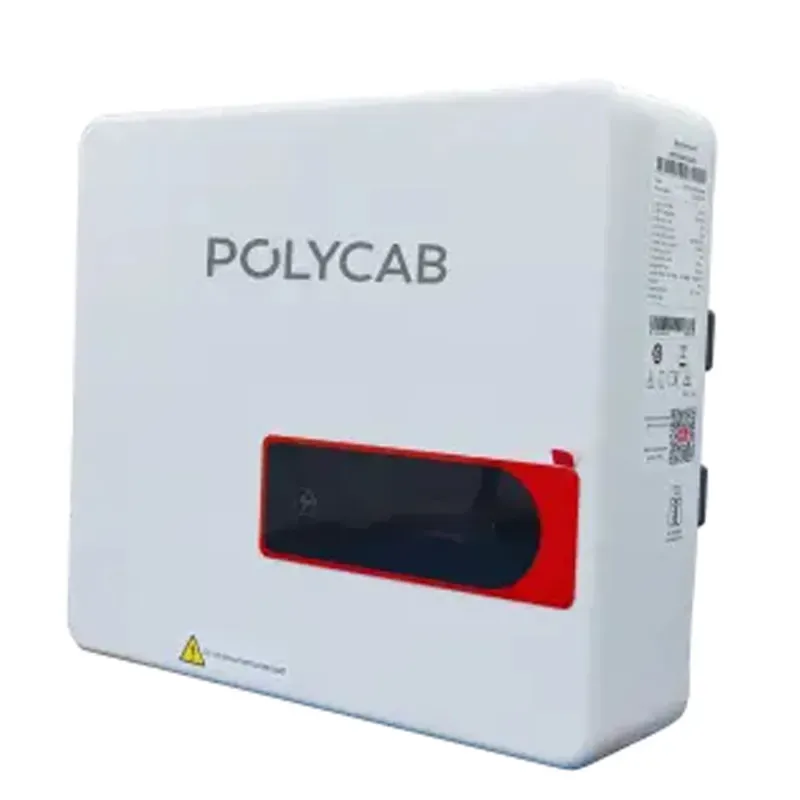

Polycab PSIS-3K6 Grid Tie Inverter, 3.6 kW Single Phase Inverter, For Residential & Commercial Use
In Stock
₹20,473₹26,900-24% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Polycab |
| Weight (Approx.) | 4.40 kg |
| Model | PSIS-3K6 |
| Rating | 3.6 kW |
| Max. Input Voltage | 550V |
| Max. PV Configuration (STC) | 150% |
| Rated / Nominal Input Voltage | 360V |
| Max. Input Current | 20A |
| Max. Short Circuit Current | 30A |
| Start Input Voltage | 50V |
| MPPT Operating Voltage Range | 40-540Vdc |
| Full Power MPPT Voltage | 190V-500V |
| Max. Number of PV Strings | 1 |
| No. of MPPTs | 1 |
| Rated AC Active Power | 3,600W |
| Max. AC Apparent Power | 3,960VA |
| Max. AC Active Power (PF=1) | 3,960W |
| Max. AC Output Current | 18A |
| Rated AC Voltage | 220V/230V/240V, L+N+PE |
| AC Voltage Range | 160V-300V (Adjustable) |
| Rated Grid Frequency | 50Hz/60Hz |
| Grid Frequency Range | 45Hz-55Hz / 55Hz-65Hz (Adjustable) |
| THDi | <3% (Rated Power) |
| DC Current Injection | <0.5%ln |
| Power Factor | > 0.99 Rated Power (Adjustable 0.8 LD - 0.8 LG) |
| Max. Efficiency | 97.1% |
| Europe Efficiency | 96.1% |
| Topology | Transformer-less |
| IP Rating | IP66 |
| Night Self Consumption | <1W |
| Cooling | Natural Cooling |
| Operating Temperature Range | -25°C to 60°C |
| Relative Humidity Range | 0-100% |
| Max. Operating Altitude | 4000m |
| Noise(typical) | 30dB |
| Dimensions (WxHxD) | 271 x 256 x 135 mm |
| Superior Efficiency | Boasts a maximum efficiency of up to 97.8%, ensuring minimal energy loss during conversion. |
| High Power Compatibility | Supports a string current of up to 20A, making it compatible with modern high-wattage PV modules (like TOPCon and Mono-PERC). |
| Wide MPPT Range | Features an ultra-wide MPPT voltage range (50V – 490V) with a low start-up voltage of 70V, allowing for power generation even in low-light conditions. |
| Smart Monitoring | Integrated RS-485 port with optional Wi-Fi/GPRS/LAN sticks for real-time remote monitoring via a mobile app or web portal. |
| Advanced Protection | Built-in DC/AC surge protection (Type III), anti-islanding, short-circuit, and over-voltage protections for maximum safety. |
| Robust Build | IP65-rated waterproof and dustproof die-cast aluminum cabinet designed for durability in harsh environments. |
| DC Overloading | Supports up to 150% PV configuration, allowing you to oversize your solar array for better performance in cloudy weather. |
| Warranty | Comes with a standard 8-year warranty (extendable up to 10 years in some regions). |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Polycab PSIS-3K6 Grid Tie Inverter, 3.6 kW Single Phase Inverter, For Residential & Commercial Use
Polycab PSIS-3K6 Grid Tie Inverter, 3.6 kW Single Phase Inverter, For Residential & Commercial Use is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by Polycab. Key specifications include weight (approx.) 4.40 kg, rating 3.6 kW, max. input voltage 550V, max. pv configuration (stc) 150%, rated / nominal input voltage 360V. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Polycab PSIS-3K6 Grid Tie Inverter, 3.6 kW Single Phase Inverter, For Residential & Commercial Use specifications
| Weight (Approx.) | 4.40 kg |
|---|---|
| Rating | 3.6 kW |
| Max. Input Voltage | 550V |
| Max. PV Configuration (STC) | 150% |
| Rated / Nominal Input Voltage | 360V |
| Max. Input Current | 20A |
| Max. Short Circuit Current | 30A |
| Start Input Voltage | 50V |
| MPPT Operating Voltage Range | 40-540Vdc |
| Full Power MPPT Voltage | 190V-500V |
| Max. Number of PV Strings | 1 |
| No. of MPPTs | 1 |
FAQs related to Polycab PSIS-3K6 Grid Tie Inverter, 3.6 kW Single Phase Inverter, For Residential & Commercial Use
Is a GST invoice provided for Polycab PSIS-3K6 Grid Tie Inverter, 3.6 kW Single Phase Inverter, For Residential & Commercial Use purchases?
+
Yes, every Polycab PSIS-3K6 Grid Tie Inverter, 3.6 kW Single Phase Inverter, For Residential & Commercial Use order comes with an automatically generated GST invoice, useful for input tax credit claims and standard farm-business accounting.
Can dealers or distributors get a custom quote for Polycab PSIS-3K6 Grid Tie Inverter, 3.6 kW Single Phase Inverter, For Residential & Commercial Use in large volumes?
+
Yes — use the RFQ feature for dealer or distributor-level Polycab PSIS-3K6 Grid Tie Inverter, 3.6 kW Single Phase Inverter, For Residential & Commercial Use orders. Our sales team provides a dedicated quote and delivery plan for bulk agricultural equipment purchases.
How long does delivery take for Polycab PSIS-3K6 Grid Tie Inverter, 3.6 kW Single Phase Inverter, For Residential & Commercial Use orders, including to rural areas?
+
Delivery timelines for Polycab PSIS-3K6 Grid Tie Inverter, 3.6 kW Single Phase Inverter, For Residential & Commercial Use are shown at checkout based on your pincode. ToolHaat delivers pan-India, including rural and semi-urban locations, though larger equipment may have a longer transit window than smaller accessories.
Is Polycab PSIS-3K6 Grid Tie Inverter, 3.6 kW Single Phase Inverter, For Residential & Commercial Use suitable for both small farms and large agricultural operations?
+
ToolHaat lists Polycab PSIS-3K6 Grid Tie Inverter, 3.6 kW Single Phase Inverter, For Residential & Commercial Use across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
Can I compare different brands and price points for Polycab PSIS-3K6 Grid Tie Inverter, 3.6 kW Single Phase Inverter, For Residential & Commercial Use before buying?
+
Yes — ToolHaat lists Polycab PSIS-3K6 Grid Tie Inverter, 3.6 kW Single Phase Inverter, For Residential & Commercial Use from multiple vendors and brands at different price points and specifications, so you can compare before committing to a bulk purchase.
