LUMINOUS · SKU: thagri3398

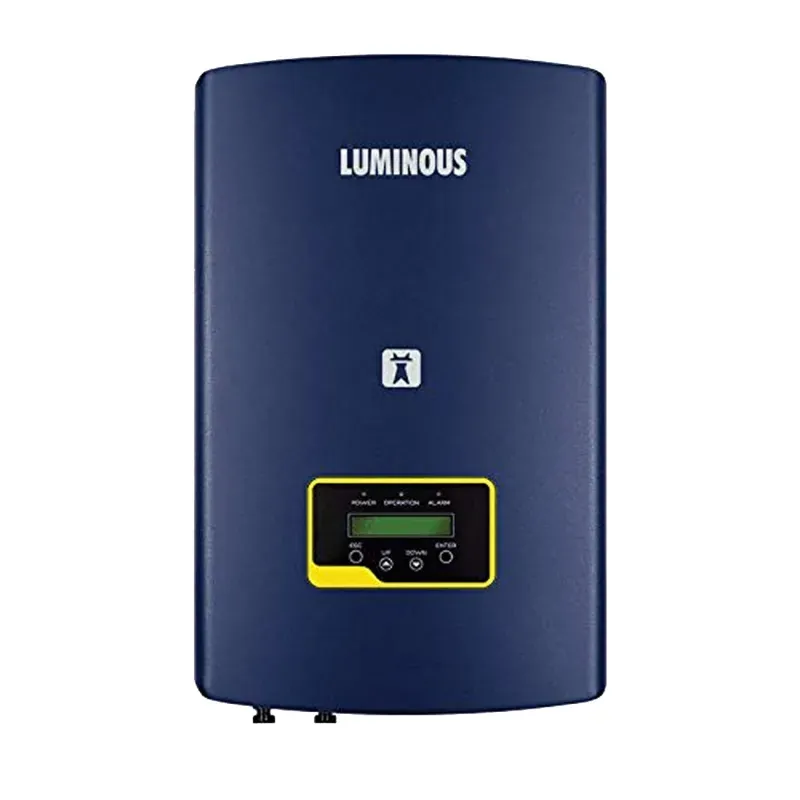

LUMINOUS 8 kW NXI 308 Solar Grid Tie Three Phase Inverter With 10 Years Warranty Designed for Residential Use
In Stock
₹73,260₹90,000-19% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | LUMINOUS |
| Weight (Approx.) | 18 kg |
| Rated output power (kW) | 8 |
| Max. DC Input Power (kW) | 12 |
| Max. DC Input Voltage (V) | 1100 |
| Start-up Voltage [V] | 180 |
| MPPT Voltage range (V) | 160 - 1000 |
| Max input current per MPPT (A) | 16 |
| Number of MPPT | 2 |
| Max Input Strings Number | 2 |
| Max. output power [kW] | 8.8 |
| Max. output Current [A] | 13.4 |
| Grid Frequency range (Hz) | 50/60 Hz |
| Power Factor (at rated output power) | 0.8 …1... 0.8 |
| Total harmonic distortion [THDi] | <2% |
| Feed-in phase/connection phase | Three Phase |
| Max. Efficiency | 98.30% |
| MPPT Efficiency | 99.5% |
| Inbuilt Protections | DC Reverse Polarity Protection, Short Circuit Protection, O/P Over Current Protection, O/P Over voltage protection, Insulation resistance monitoring, Residual current detection, surge protection, slanding Protection, Temperature Protection, Integrated DC Switch (optional) |
| DC Connection | MC4 Connectors |
| Display | LCD 2X 20Z |
| Datalogger & Communication | RS485/GSM/WiFi* (Optional) |
| Topology | Transformerless |
| Consumption @ night | < 1 W |
| Operating Temperature Range | -25°C to 60°C |
| Cooling Method | Natural Convection |
| Relative Humidity | 0 to 100% |
| Max. Operational Altitude | 4000m |
| Noise [dBA] | <30 dBA |
| Designed Lifetime | > 20 years |
| Ingress Protection | IP66 |
| Dimensions (W*H*D) (mm) | 310W*563H*129D |
| Net weight (Kg) | 17.8 |
| Safety/EMC | BIS Certified as per IS/IEC standards |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About LUMINOUS 8 kW NXI 308 Solar Grid Tie Three Phase Inverter With 10 Years Warranty Designed for Residential Use
LUMINOUS 8 kW NXI 308 Solar Grid Tie Three Phase Inverter With 10 Years Warranty Designed for Residential Use is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by LUMINOUS. Key specifications include weight (approx.) 18 kg, rated output power (kw) 8, max. dc input power (kw) 12, max. dc input voltage (v) 1100, start-up voltage [v] 180. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
LUMINOUS 8 kW NXI 308 Solar Grid Tie Three Phase Inverter With 10 Years Warranty Designed for Residential Use specifications
| Weight (Approx.) | 18 kg |
|---|---|
| Rated output power (kW) | 8 |
| Max. DC Input Power (kW) | 12 |
| Max. DC Input Voltage (V) | 1100 |
| Start-up Voltage [V] | 180 |
| MPPT Voltage range (V) | 160 - 1000 |
| Max input current per MPPT (A) | 16 |
| Number of MPPT | 2 |
| Max Input Strings Number | 2 |
| Max. output power [kW] | 8.8 |
| Max. output Current [A] | 13.4 |
| Grid Frequency range (Hz) | 50/60 Hz |
FAQs related to LUMINOUS 8 kW NXI 308 Solar Grid Tie Three Phase Inverter With 10 Years Warranty Designed for Residential Use
How long does delivery take for LUMINOUS 8 kW NXI 308 Solar Grid Tie Three Phase Inverter With 10 Years Warranty Designed for Residential Use orders, including to rural areas?
+
Delivery timelines for LUMINOUS 8 kW NXI 308 Solar Grid Tie Three Phase Inverter With 10 Years Warranty Designed for Residential Use are shown at checkout based on your pincode. ToolHaat delivers pan-India, including rural and semi-urban locations, though larger equipment may have a longer transit window than smaller accessories.
Can dealers or distributors get a custom quote for LUMINOUS 8 kW NXI 308 Solar Grid Tie Three Phase Inverter With 10 Years Warranty Designed for Residential Use in large volumes?
+
Yes — use the RFQ feature for dealer or distributor-level LUMINOUS 8 kW NXI 308 Solar Grid Tie Three Phase Inverter With 10 Years Warranty Designed for Residential Use orders. Our sales team provides a dedicated quote and delivery plan for bulk agricultural equipment purchases.
Is a GST invoice provided for LUMINOUS 8 kW NXI 308 Solar Grid Tie Three Phase Inverter With 10 Years Warranty Designed for Residential Use purchases?
+
Yes, every LUMINOUS 8 kW NXI 308 Solar Grid Tie Three Phase Inverter With 10 Years Warranty Designed for Residential Use order comes with an automatically generated GST invoice, useful for input tax credit claims and standard farm-business accounting.
What if LUMINOUS 8 kW NXI 308 Solar Grid Tie Three Phase Inverter With 10 Years Warranty Designed for Residential Use arrives damaged or doesn’t match the listed specifications?
+
Contact ToolHaat support with your order ID and photos if LUMINOUS 8 kW NXI 308 Solar Grid Tie Three Phase Inverter With 10 Years Warranty Designed for Residential Use arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.
What is the bulk pricing structure for LUMINOUS 8 kW NXI 308 Solar Grid Tie Three Phase Inverter With 10 Years Warranty Designed for Residential Use?
+
LUMINOUS 8 kW NXI 308 Solar Grid Tie Three Phase Inverter With 10 Years Warranty Designed for Residential Use on ToolHaat uses tiered bulk pricing — cost per unit drops as order quantity rises, shown on the product page. For dealer-volume or distributor-level quantities, an RFQ gets you a dedicated quote.
