LUMINOUS · SKU: thagri10517

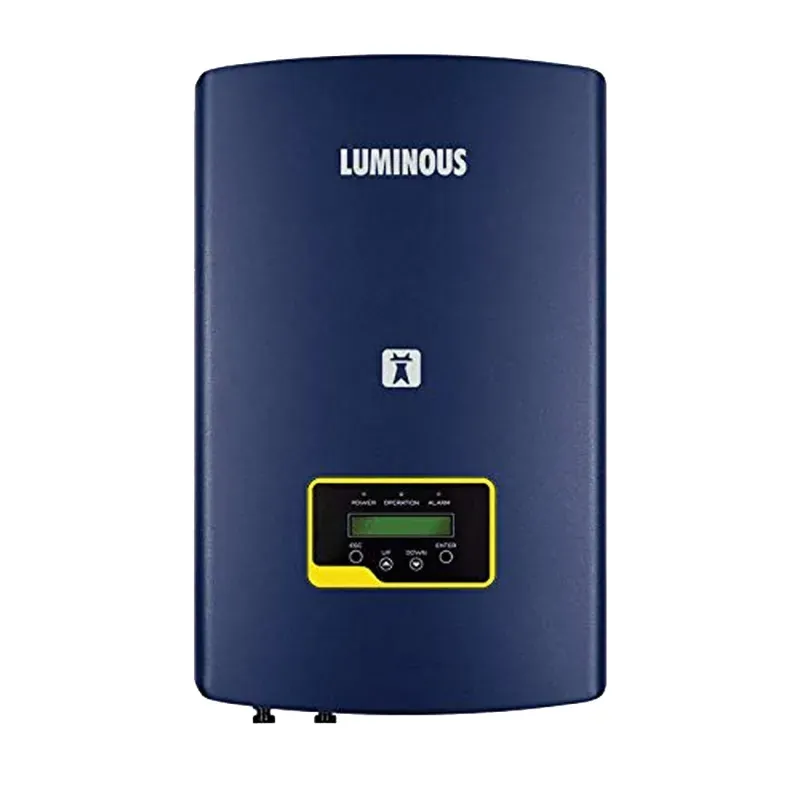

LUMINOUS 4 kW NXI 140 Solar Grid Tie Single Phase Inverter Designed for Residential Use
In Stock
₹38,610₹45,000-14% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | LUMINOUS |
| Weight (Approx.) | 9 kg |
| Rated output power (kW) | 4 |
| Max. DC Input Power (kW) | 6.0 |
| Max. DC Input Voltage (V) | 550 |
| Start-up Voltage [V] | 100 |
| MPPT Voltage range (V) | 90 - 550 |
| Max input current per MPPT (A) | 16 |
| Number of MPPT | 2 |
| Max Input Strings Number | 2 |
| Max. output power [kW] | 4.4 |
| Max. output Current [A] | 21 |
| Grid Frequency range (Hz) | 50/60Hz |
| Power Factor (at rated output power) | 0.8 …1... 0.8 |
| Total harmonic distortion [THDi] | < 1.5% |
| Feed-in phase/connection phase | Single Phase |
| Max. Efficiency | >97.6 |
| MPPT Efficiency | >99.5 |
| Inbuilt Protections | DC Reverse Polarity Protection, Short Circuit Protection, O/P Over Current Protection, O/P Over voltage protection, Insulation resistance monitoring, Residual current detection, surge protection, slanding Protection, Temperature Protection |
| DC Connection | MC4 Connectors |
| Display | LED + Bluetooth App |
| Datalogger & Communication | RS485/GSM/WiFi* (Optional) |
| Topology | Transformerless |
| Consumption @ night | < 1 W |
| Operating Temperature Range | -25°C to 60°C |
| Cooling Method | Natural Convection |
| Relative Humidity | 0 - 100 % |
| Max. Operational Altitude | 4000m |
| Noise [dBA] | <30dBA |
| Designed Lifetime | > 20 years |
| Ingress Protection | IP66 |
| Dimensions (W*H*D) (mm) | 310W *543H *160D |
| Safety/EMC | BIS Certified as per IS/IEC standards |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About LUMINOUS 4 kW NXI 140 Solar Grid Tie Single Phase Inverter Designed for Residential Use
LUMINOUS 4 kW NXI 140 Solar Grid Tie Single Phase Inverter Designed for Residential Use is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by LUMINOUS. Key specifications include weight (approx.) 9 kg, rated output power (kw) 4, max. dc input power (kw) 6.0, max. dc input voltage (v) 550, start-up voltage [v] 100. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
LUMINOUS 4 kW NXI 140 Solar Grid Tie Single Phase Inverter Designed for Residential Use specifications
| Weight (Approx.) | 9 kg |
|---|---|
| Rated output power (kW) | 4 |
| Max. DC Input Power (kW) | 6.0 |
| Max. DC Input Voltage (V) | 550 |
| Start-up Voltage [V] | 100 |
| MPPT Voltage range (V) | 90 - 550 |
| Max input current per MPPT (A) | 16 |
| Number of MPPT | 2 |
| Max Input Strings Number | 2 |
| Max. output power [kW] | 4.4 |
| Max. output Current [A] | 21 |
| Grid Frequency range (Hz) | 50/60Hz |
