LUMINOUS · SKU: thagri10543

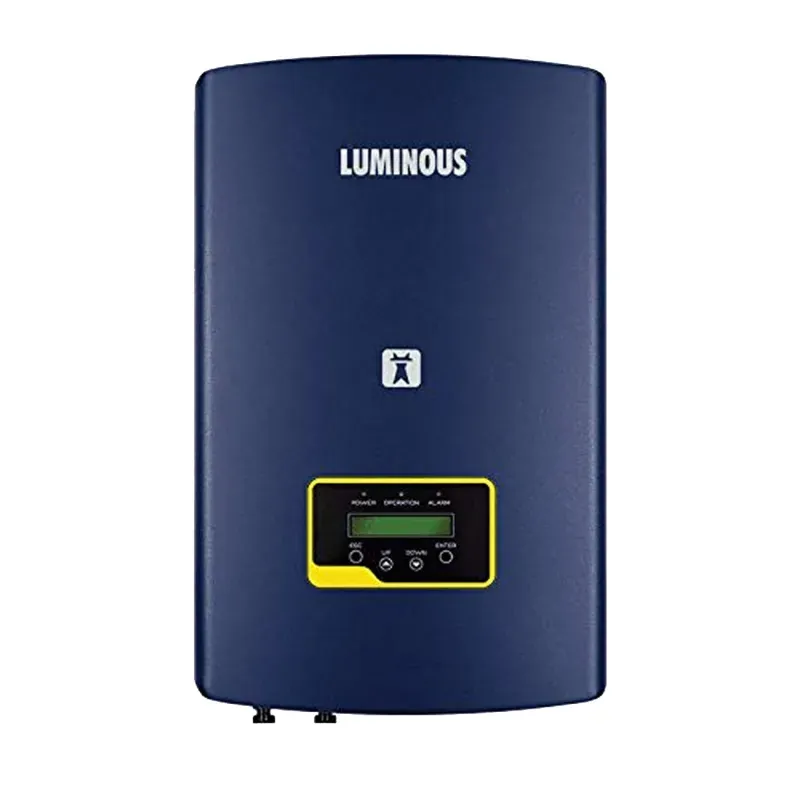

LUMINOUS 12 kW NXI 312 Solar Grid Tie Three Phase Inverter Designed for Residential Use
In Stock
₹81,180₹95,000-15% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | LUMINOUS |
| Weight (Approx.) | 19 kg |
| Rated output power (kW) | 12 |
| Max. DC Input Power (kW) | 18 |
| Max. DC Input Voltage (V) | 1100 |
| Start-up Voltage [V] | 180 |
| MPPT Voltage range (V) | 160 - 1000 |
| Max input current per MPPT (A) | 32 |
| Number of MPPT | 2 |
| Max Input Strings Number | 4 |
| Max. output power [kW] | 13.2 |
| Max. output Current [A] | 20.1 |
| Grid Frequency range (Hz) | 50/60 Hz |
| Power Factor (at rated output power) | 0.8 …1... 0.8 |
| Total harmonic distortion [THDi] | <2% |
| Feed-in phase/connection phase | Three Phase |
| Max. Efficiency | 98.60% |
| MPPT Efficiency | 99.5% |
| Inbuilt Protections | DC Reverse Polarity Protection, Short Circuit Protection, O/P Over Current Protection, O/P Over voltage protection, Insulation resistance monitoring, Residual current detection, surge protection, slanding Protection, Temperature Protection, Integrated DC Switch (optional) |
| DC Connection | MC4 Connectors |
| Display | LCD 2X 20Z |
| Datalogger & Communication | RS485/GSM/WiFi* (Optional) |
| Topology | Transformerless |
| Consumption @ night | < 1 W |
| Operating Temperature Range | -25°C to 60°C |
| Cooling Method | Intelligent Redundant Fan Colling |
| Relative Humidity | 0 to 100% |
| Max. Operational Altitude | 4000m |
| Noise [dBA] | <30 dBA |
| Designed Lifetime | > 20 years |
| Ingress Protection | IP66 |
| Dimensions (W*H*D) (mm) | 310W*608H*219D |
| Net weight (Kg) | 18.8 |
| Safety/EMC | BIS Certified as per IS/IEC standards |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About LUMINOUS 12 kW NXI 312 Solar Grid Tie Three Phase Inverter Designed for Residential Use
LUMINOUS 12 kW NXI 312 Solar Grid Tie Three Phase Inverter Designed for Residential Use is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by LUMINOUS. Key specifications include weight (approx.) 19 kg, rated output power (kw) 12, max. dc input power (kw) 18, max. dc input voltage (v) 1100, start-up voltage [v] 180. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
LUMINOUS 12 kW NXI 312 Solar Grid Tie Three Phase Inverter Designed for Residential Use specifications
| Weight (Approx.) | 19 kg |
|---|---|
| Rated output power (kW) | 12 |
| Max. DC Input Power (kW) | 18 |
| Max. DC Input Voltage (V) | 1100 |
| Start-up Voltage [V] | 180 |
| MPPT Voltage range (V) | 160 - 1000 |
| Max input current per MPPT (A) | 32 |
| Number of MPPT | 2 |
| Max Input Strings Number | 4 |
| Max. output power [kW] | 13.2 |
| Max. output Current [A] | 20.1 |
| Grid Frequency range (Hz) | 50/60 Hz |
