LUMINOUS · SKU: thagri10544

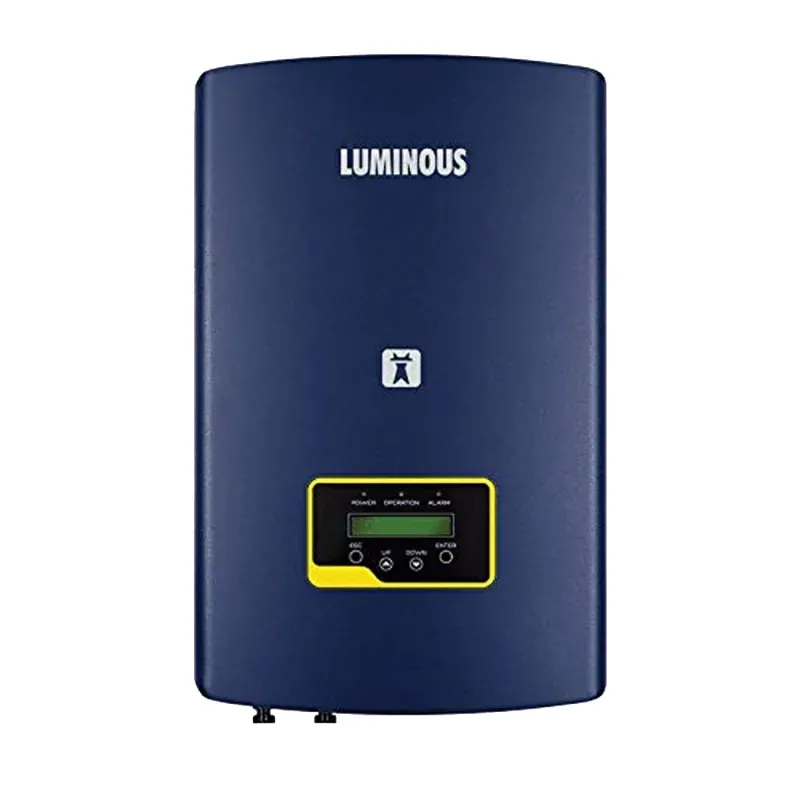

LUMINOUS 10 kW NXI 310 Solar Grid Tie Three Phase Inverter Designed for Residential Use
In Stock
₹74,250₹90,000-18% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | LUMINOUS |
| Weight (Approx.) | 15 kg |
| Rated output power (kW) | 10 |
| Max. DC Input Power (kW) | 15 |
| Max. DC Input Voltage (V) | 1100 |
| Start-up Voltage [V] | 180 |
| MPPT Voltage range (V) | 160 - 1000 |
| Max input current per MPPT (A) | 16 |
| Number of MPPT | 2 |
| Max Input Strings Number | 2 |
| Max. output power [kW] | 11 |
| Max. output Current [A] | 16.7 |
| Grid Frequency range (Hz) | 50/60 Hz |
| Power Factor (at rated output power) | 0.8 …1... 0.8 |
| Total harmonic distortion [THDi] | <2% |
| Feed-in phase/connection phase | Three Phase |
| Max. Efficiency | 98.30% |
| MPPT Efficiency | 99.5% |
| Inbuilt Protections | DC Reverse Polarity Protection, Short Circuit Protection, O/P Over Current Protection, O/P Over voltage protection, Insulation resistance monitoring, Residual current detection, surge protection, slanding Protection, Temperature Protection, Integrated DC Switch (optional) |
| DC Connection | MC4 Connectors |
| Display | LCD 2X 20Z |
| Datalogger & Communication | RS485/GSM/WiFi* (Optional) |
| Topology | Transformerless |
| Consumption @ night | < 1 W |
| Operating Temperature Range | -25°C to 60°C |
| Cooling Method | Natural Convection |
| Relative Humidity | 0 to 100% |
| Max. Operational Altitude | 4000m |
| Noise [dBA] | <30 dBA |
| Designed Lifetime | > 20 years |
| Ingress Protection | IP66 |
| Dimensions (W*H*D) (mm) | 310W*563H*129D |
| Safety/EMC | BIS Certified as per IS/IEC standards |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About LUMINOUS 10 kW NXI 310 Solar Grid Tie Three Phase Inverter Designed for Residential Use
LUMINOUS 10 kW NXI 310 Solar Grid Tie Three Phase Inverter Designed for Residential Use is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by LUMINOUS. Key specifications include weight (approx.) 15 kg, rated output power (kw) 10, max. dc input power (kw) 15, max. dc input voltage (v) 1100, start-up voltage [v] 180. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
LUMINOUS 10 kW NXI 310 Solar Grid Tie Three Phase Inverter Designed for Residential Use specifications
| Weight (Approx.) | 15 kg |
|---|---|
| Rated output power (kW) | 10 |
| Max. DC Input Power (kW) | 15 |
| Max. DC Input Voltage (V) | 1100 |
| Start-up Voltage [V] | 180 |
| MPPT Voltage range (V) | 160 - 1000 |
| Max input current per MPPT (A) | 16 |
| Number of MPPT | 2 |
| Max Input Strings Number | 2 |
| Max. output power [kW] | 11 |
| Max. output Current [A] | 16.7 |
| Grid Frequency range (Hz) | 50/60 Hz |
FAQs related to LUMINOUS 10 kW NXI 310 Solar Grid Tie Three Phase Inverter Designed for Residential Use
Is a GST invoice provided for LUMINOUS 10 kW NXI 310 Solar Grid Tie Three Phase Inverter Designed for Residential Use purchases?
+
Yes, every LUMINOUS 10 kW NXI 310 Solar Grid Tie Three Phase Inverter Designed for Residential Use order comes with an automatically generated GST invoice, useful for input tax credit claims and standard farm-business accounting.
Can I compare different brands and price points for LUMINOUS 10 kW NXI 310 Solar Grid Tie Three Phase Inverter Designed for Residential Use before buying?
+
Yes — ToolHaat lists LUMINOUS 10 kW NXI 310 Solar Grid Tie Three Phase Inverter Designed for Residential Use from multiple vendors and brands at different price points and specifications, so you can compare before committing to a bulk purchase.
Can dealers or distributors get a custom quote for LUMINOUS 10 kW NXI 310 Solar Grid Tie Three Phase Inverter Designed for Residential Use in large volumes?
+
Yes — use the RFQ feature for dealer or distributor-level LUMINOUS 10 kW NXI 310 Solar Grid Tie Three Phase Inverter Designed for Residential Use orders. Our sales team provides a dedicated quote and delivery plan for bulk agricultural equipment purchases.
Are spare parts or accessories for LUMINOUS 10 kW NXI 310 Solar Grid Tie Three Phase Inverter Designed for Residential Use also available on ToolHaat?
+
Many LUMINOUS 10 kW NXI 310 Solar Grid Tie Three Phase Inverter Designed for Residential Use categories on ToolHaat also list compatible accessories and spare parts separately — check related subcategories or use search to find parts matching your specific model.
Is LUMINOUS 10 kW NXI 310 Solar Grid Tie Three Phase Inverter Designed for Residential Use suitable for both small farms and large agricultural operations?
+
ToolHaat lists LUMINOUS 10 kW NXI 310 Solar Grid Tie Three Phase Inverter Designed for Residential Use across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
