KisanKraft · SKU: thagri6887

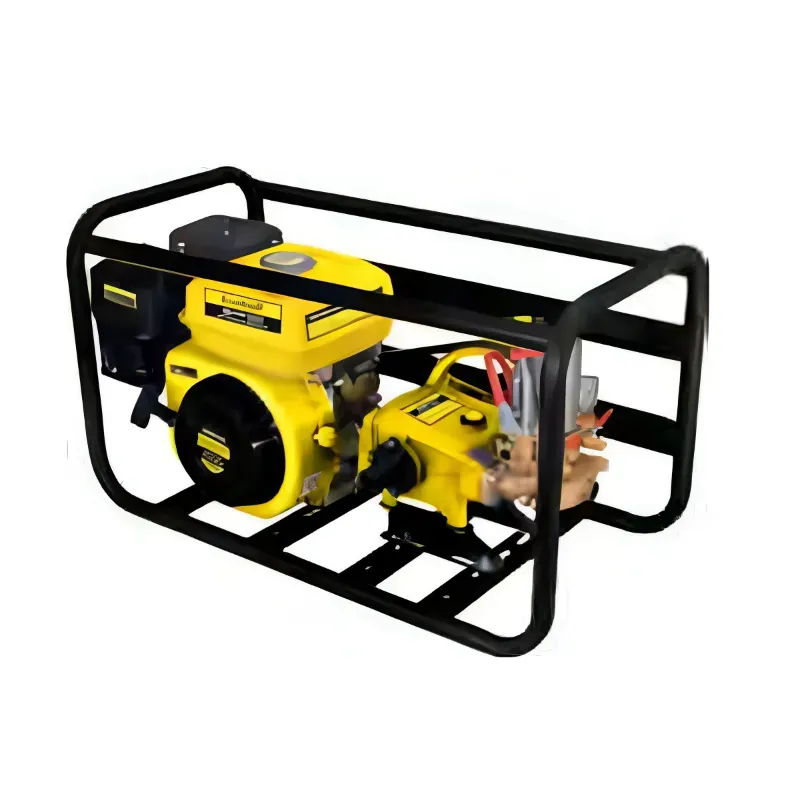

KisanKraft KK-PSP-22 x 3, Heavy Duty 4 stroke 196 CC HTP Pump Set with Engine
In Stock
₹16,335₹21,500-24% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | KisanKraft |
| Weight (Approx.) | 38 kg |
| Model Number | KK-PSP-22X3 |
| Engine | 4 Stroke |
| Fuel Used | Petrol |
| Displacement | 196 cc |
| Fuel Tank | 3.6 L |
| Required Power | 2-5 hp |
| Discharge Rate | 13-22 LPM |
| Engine Oil Capacity | 600 ml (20W40) |
| Pump Speed | 800-1000RPM |
| Out Pressure | 10-40 kg/cm2 |
| Suction Volume | 10-22 L/min |
| No. of Piston | 3 |
| No. of Cock (Outlet Connections) | 2 |
| Suitable Hose Pipe Diameter | 8.5 MM & 10 MM |
| Body Material | Cast Iron |
| Pump Material | Brass |
| Pump Oil Capacity | 700 ml (20W40) |
| Powerful Engine Performance | The HTP pump is equipped with a robust engine, this powerful engine ensures that the pump can handle demanding tasks efficiently, providing high flow rates and pressure suitable for various applications such as irrigation, cleaning, and agricultural spraying. |
| Advanced Pump Design | HTP pumps feature a triple piston design that maximizes power and efficiency. The advanced engineering ensures consistent performance even under challenging conditions. |
| Fuel Efficiency | The petrol engines used in HTP pumps are designed for optimal fuel efficiency and also minimizes environmental impact by consuming less fuel while delivering high performance. |
| Durability and Reliability | Constructed from high-quality materials, HTP pumps are built to withstand harsh environments and prolonged use. |
| User-Friendly Design | HTP pumps are designed with user convenience in mind. Easy maintenance procedures help keep the pump in optimal working condition. |
| High Output Pressure | HTP pumps can achieve output pressures ranging from 10-40 kg/cm², allowing them to tackle tough jobs effectively by providing the necessary force required for various applications. |
| Connect Suction Hose | Attach one end of the suction hose to the pump’s inlet port and submerge the other end in water or liquid you intend to pump. Make sure that there are no air leaks in this connection as it can affect performance. |
| Attach Discharge Hose | Connect a discharge hose to the outlet port of the pump where water will be expelled. Ensure this connection is tight to avoid leaks during operation. |
| Prime the Pump (if necessary) | Some pumps may require priming before starting. To do this, fill the suction hose with water by either submerging it or using a priming plug if available. |
| Turn On Fuel Valve | If your model has a fuel valve, turn it on to allow fuel flow to the engine. |
| Set Choke Position | Depending on ambient temperature, set the choke lever accordingly (closed for cold starts). |
| Start Engine | Pull on the recoil starter handle firmly until you hear it start. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About KisanKraft KK-PSP-22 x 3, Heavy Duty 4 stroke 196 CC HTP Pump Set with Engine
KisanKraft KK-PSP-22 x 3, Heavy Duty 4 stroke 196 CC HTP Pump Set with Engine is listed under HTP Pump in Agricultural Tools on ToolHaat, supplied by KisanKraft. Key specifications include weight (approx.) 38 kg, model number KK-PSP-22X3, engine 4 Stroke, fuel used Petrol, displacement 196 cc. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
KisanKraft KK-PSP-22 x 3, Heavy Duty 4 stroke 196 CC HTP Pump Set with Engine specifications
| Weight (Approx.) | 38 kg |
|---|---|
| Model Number | KK-PSP-22X3 |
| Engine | 4 Stroke |
| Fuel Used | Petrol |
| Displacement | 196 cc |
| Fuel Tank | 3.6 L |
| Required Power | 2-5 hp |
| Discharge Rate | 13-22 LPM |
| Engine Oil Capacity | 600 ml (20W40) |
| Pump Speed | 800-1000RPM |
| Out Pressure | 10-40 kg/cm2 |
| Suction Volume | 10-22 L/min |
FAQs related to KisanKraft KK-PSP-22 x 3, Heavy Duty 4 stroke 196 CC HTP Pump Set with Engine
Can I compare different brands and price points for KisanKraft KK-PSP-22 x 3, Heavy Duty 4 stroke 196 CC HTP Pump Set with Engine before buying?
+
Yes — ToolHaat lists KisanKraft KK-PSP-22 x 3, Heavy Duty 4 stroke 196 CC HTP Pump Set with Engine from multiple vendors and brands at different price points and specifications, so you can compare before committing to a bulk purchase.
Can KisanKraft KK-PSP-22 x 3, Heavy Duty 4 stroke 196 CC HTP Pump Set with Engine orders be timed to arrive before the sowing or harvest season?
+
Yes — for seasonal equipment needs, place your KisanKraft KK-PSP-22 x 3, Heavy Duty 4 stroke 196 CC HTP Pump Set with Engine order with enough lead time before peak season, or contact our sales team to confirm stock availability and delivery timing ahead of sowing or harvest windows.
What is the bulk pricing structure for KisanKraft KK-PSP-22 x 3, Heavy Duty 4 stroke 196 CC HTP Pump Set with Engine?
+
KisanKraft KK-PSP-22 x 3, Heavy Duty 4 stroke 196 CC HTP Pump Set with Engine on ToolHaat uses tiered bulk pricing — cost per unit drops as order quantity rises, shown on the product page. For dealer-volume or distributor-level quantities, an RFQ gets you a dedicated quote.
Is a GST invoice provided for KisanKraft KK-PSP-22 x 3, Heavy Duty 4 stroke 196 CC HTP Pump Set with Engine purchases?
+
Yes, every KisanKraft KK-PSP-22 x 3, Heavy Duty 4 stroke 196 CC HTP Pump Set with Engine order comes with an automatically generated GST invoice, useful for input tax credit claims and standard farm-business accounting.
What if KisanKraft KK-PSP-22 x 3, Heavy Duty 4 stroke 196 CC HTP Pump Set with Engine arrives damaged or doesn’t match the listed specifications?
+
Contact ToolHaat support with your order ID and photos if KisanKraft KK-PSP-22 x 3, Heavy Duty 4 stroke 196 CC HTP Pump Set with Engine arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.
