HYXiPOWER · SKU: thagri10503

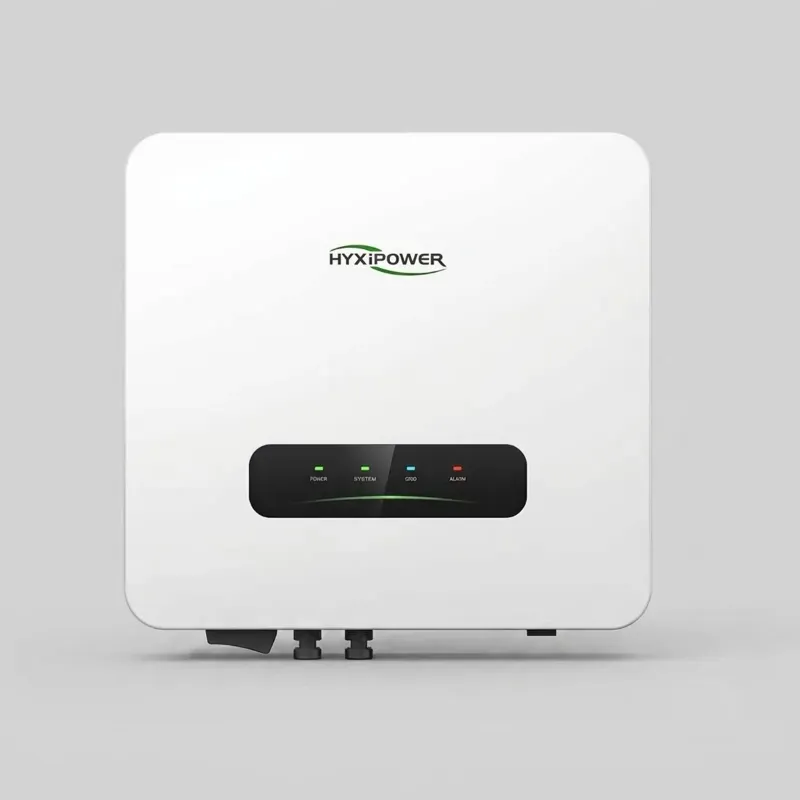

HYXiPOWER 4 kW (HYX-S4K-S1) Single Phase Solar Inverter with On Grid Systems for Residential & Commercial Use
In Stock
₹31,670₹44,800-29% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | HYXiPOWER |
| Weight (Approx.) | 12 kg |
| Max. Input Power | 5200W |
| Max. Input Voltage | 600V |
| Rated Input Voltage | 360V |
| Start-up Voltage | 100V |
| MPPT Operating Voltage Range | 80 - 560V |
| MPPT Full Load Voltage Range | 200 - 500V |
| Max. Input Current Per MPPT | 18A |
| Max. Short-Circuit Current | 25 A |
| Number of MPP Trackers | 1 |
| Number of Input | 1 |
| Max. Backfilling Current | 0A |
| Rated Output Power | 4000W |
| Max. Apparent Power¹ | 4000VA |
| Rated Output Voltage | 1 / N /PE, 220 V / 230 V / 240 V |
| Rated AC Grid Frequency | 50/60 Hz |
| Adjustable Power Factor | 0.8 Leading .......0.8 Lagging |
| THDi | <3% |
| Max. Efficiency | 97.7% |
| European Weighted Efficiency | 97.2% |
| MPPT Efficiency | 99.9% |
| Active Anti-islanding Protection | General Electric Frequency Shift |
| Residual Current Monitoring | Yes |
| DC Reverse Polarity Protection | Yes |
| DC Switch | Yes |
| AC Short-circuit Protection | Yes |
| AC Overvoltage Protection | Yes |
| AC Overcurrent Protection | Yes |
| DC Surge Protection | Type II |
| AC Surge Protection | Type II |
| Ground Fault Detection | Yes |
| AFCI | Yes |
| Operating Temperature Range | -30 to +60℃ (Derating from 45℃) |
| Relative Operating Humidity | 0 - 100 %RH |
| Operating Altitude | 4,000m |
| Cooling | Natural Cooling |
| Display | LED+App |
| Communication | RS485 / 4G / WIFI |
| Dimensions (W x H x D) | 340 x 360 x 136mm |
| Topology | Non-Isolated |
| Degree of Protection | IP66 |
| Overvoltage Level | PV II / AC III |
| Protection Class | I |
| Nighttime Power Consumption | <1W |
| High Current Compatibility | Designed with an 18A input current capability to fully support modern, high-power solar PV panels. |
| Type II Surge Arrester Protection | Built-in DC and AC Type II surge protection safeguards system electronics against lightning and grid transients. |
| Silent Natural Cooling | Convection cooling system provides silent, fanless operation with zero mechanical wear and long service life. |
| Plug and Play Installation | Lightweight, compact architecture with 3-step rapid setup and app-based configuration. |
| Intelligent I-V Curve Diagnosis | Performs automated remote troubleshooting and fault locating to minimize maintenance site visits. |
| Residential Solar Rooftops | Ideal for medium to large single phase home installations seeking high energy yield and lower utility bills. |
| Small Business & Office Roofs | Suitable for small commercial units, retail outlets, and offices generating daytime solar power. |
| Agricultural & Utility Sheds | Powers water pumps, lighting, and machinery in agricultural and rural utility buildings. |
| Grid-Tied Net Metering Projects | Enables seamless feedback of excess solar energy into the local electrical grid. |
| Solar Assisted EV Charging | Pairs seamlessly with home EV chargers to power electric vehicles with solar energy. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About HYXiPOWER 4 kW (HYX-S4K-S1) Single Phase Solar Inverter with On Grid Systems for Residential & Commercial Use
HYXiPOWER 4 kW (HYX-S4K-S1) Single Phase Solar Inverter with On Grid Systems for Residential & Commercial Use is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by HYXiPOWER. Key specifications include weight (approx.) 12 kg, max. input power 5200W, max. input voltage 600V, rated input voltage 360V, start-up voltage 100V. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
HYXiPOWER 4 kW (HYX-S4K-S1) Single Phase Solar Inverter with On Grid Systems for Residential & Commercial Use specifications
| Weight (Approx.) | 12 kg |
|---|---|
| Max. Input Power | 5200W |
| Max. Input Voltage | 600V |
| Rated Input Voltage | 360V |
| Start-up Voltage | 100V |
| MPPT Operating Voltage Range | 80 - 560V |
| MPPT Full Load Voltage Range | 200 - 500V |
| Max. Input Current Per MPPT | 18A |
| Max. Short-Circuit Current | 25 A |
| Number of MPP Trackers | 1 |
| Number of Input | 1 |
| Max. Backfilling Current | 0A |
FAQs related to HYXiPOWER 4 kW (HYX-S4K-S1) Single Phase Solar Inverter with On Grid Systems for Residential & Commercial Use
Is HYXiPOWER 4 kW (HYX-S4K-S1) Single Phase Solar Inverter with On Grid Systems for Residential & Commercial Use suitable for both small farms and large agricultural operations?
+
ToolHaat lists HYXiPOWER 4 kW (HYX-S4K-S1) Single Phase Solar Inverter with On Grid Systems for Residential & Commercial Use across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
What if HYXiPOWER 4 kW (HYX-S4K-S1) Single Phase Solar Inverter with On Grid Systems for Residential & Commercial Use arrives damaged or doesn’t match the listed specifications?
+
Contact ToolHaat support with your order ID and photos if HYXiPOWER 4 kW (HYX-S4K-S1) Single Phase Solar Inverter with On Grid Systems for Residential & Commercial Use arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.
Does HYXiPOWER 4 kW (HYX-S4K-S1) Single Phase Solar Inverter with On Grid Systems for Residential & Commercial Use come with a warranty or after-sales support?
+
Warranty terms for HYXiPOWER 4 kW (HYX-S4K-S1) Single Phase Solar Inverter with On Grid Systems for Residential & Commercial Use vary by vendor and brand — check the product listing for specific coverage. ToolHaat support can help connect you with the vendor for warranty claims or service queries after purchase.
What is the bulk pricing structure for HYXiPOWER 4 kW (HYX-S4K-S1) Single Phase Solar Inverter with On Grid Systems for Residential & Commercial Use?
+
HYXiPOWER 4 kW (HYX-S4K-S1) Single Phase Solar Inverter with On Grid Systems for Residential & Commercial Use on ToolHaat uses tiered bulk pricing — cost per unit drops as order quantity rises, shown on the product page. For dealer-volume or distributor-level quantities, an RFQ gets you a dedicated quote.
Is a GST invoice provided for HYXiPOWER 4 kW (HYX-S4K-S1) Single Phase Solar Inverter with On Grid Systems for Residential & Commercial Use purchases?
+
Yes, every HYXiPOWER 4 kW (HYX-S4K-S1) Single Phase Solar Inverter with On Grid Systems for Residential & Commercial Use order comes with an automatically generated GST invoice, useful for input tax credit claims and standard farm-business accounting.
