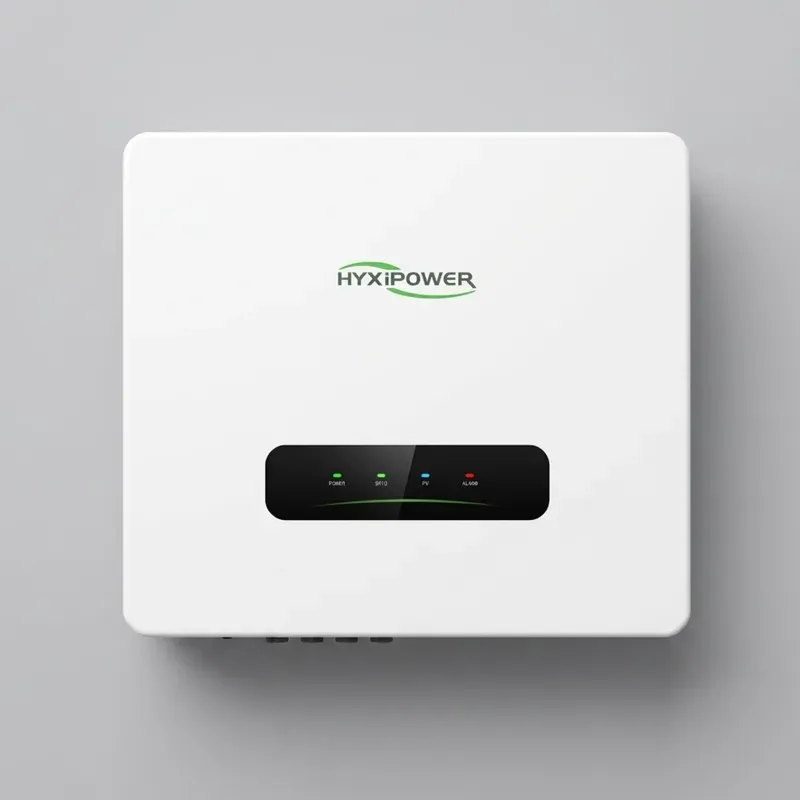

Name: HYXiPOWER 15 kW (HYX-S15K-T) Three Phase On-Grid Solar String Inverter with Dual MPPT IP66 Weatherproof Enclosure
Brand: HYXiPOWER
SKU: thagri10810
Availability: InStock

Question 1

Can HYXiPOWER 15 kW (HYX-S15K-T) Three Phase On-Grid Solar String Inverter with Dual MPPT IP66 Weatherproof Enclosure orders be timed to arrive before the sowing or harvest season?

Accepted Answer

Yes — for seasonal equipment needs, place your HYXiPOWER 15 kW (HYX-S15K-T) Three Phase On-Grid Solar String Inverter with Dual MPPT IP66 Weatherproof Enclosure order with enough lead time before peak season, or contact our sales team to confirm stock availability and delivery timing ahead of sowing or harvest windows.

Question 2

How long does delivery take for HYXiPOWER 15 kW (HYX-S15K-T) Three Phase On-Grid Solar String Inverter with Dual MPPT IP66 Weatherproof Enclosure orders, including to rural areas?

Accepted Answer

Delivery timelines for HYXiPOWER 15 kW (HYX-S15K-T) Three Phase On-Grid Solar String Inverter with Dual MPPT IP66 Weatherproof Enclosure are shown at checkout based on your pincode. ToolHaat delivers pan-India, including rural and semi-urban locations, though larger equipment may have a longer transit window than smaller accessories.

Question 3

Does HYXiPOWER 15 kW (HYX-S15K-T) Three Phase On-Grid Solar String Inverter with Dual MPPT IP66 Weatherproof Enclosure come with a warranty or after-sales support?

Accepted Answer

Warranty terms for HYXiPOWER 15 kW (HYX-S15K-T) Three Phase On-Grid Solar String Inverter with Dual MPPT IP66 Weatherproof Enclosure vary by vendor and brand — check the product listing for specific coverage. ToolHaat support can help connect you with the vendor for warranty claims or service queries after purchase.

Question 4

What if HYXiPOWER 15 kW (HYX-S15K-T) Three Phase On-Grid Solar String Inverter with Dual MPPT IP66 Weatherproof Enclosure arrives damaged or doesn’t match the listed specifications?

Accepted Answer

Contact ToolHaat support with your order ID and photos if HYXiPOWER 15 kW (HYX-S15K-T) Three Phase On-Grid Solar String Inverter with Dual MPPT IP66 Weatherproof Enclosure arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.

Question 5

Is HYXiPOWER 15 kW (HYX-S15K-T) Three Phase On-Grid Solar String Inverter with Dual MPPT IP66 Weatherproof Enclosure suitable for both small farms and large agricultural operations?

Accepted Answer

ToolHaat lists HYXiPOWER 15 kW (HYX-S15K-T) Three Phase On-Grid Solar String Inverter with Dual MPPT IP66 Weatherproof Enclosure across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.

DC Surge Protection	Type II
AC Surge Protection	Type II
Brand	HYXiPOWER
Weight (Approx.)	45 kg
Max. Input Power	24,000W
Max. Input Voltage	1,100V
Nominal Input Voltage	600V
Start-up Voltage	160V
MPPT Operating Voltage Range	140 - 1,000V
MPPT Full Load Voltage Range	315 - 850V
Max. Input Current Per MPPT	40A
Max. Input Current Per String	20A
Max Short-Circuit Current	50A
Number of MPPT	2
Max. Input Number Per MPPT	2/2
Nominal Output Power	15,000W
Max. Apparent Power	16,500VA
Nominal Output Voltage	3L/N/PE, 220 /380V, 230/400V
Nominal AC Grid Frequency	50/60Hz
Adjustable Power Factor	0.8 leadingâ€¦0.8 lagging
THDi	< 3%
Max. Efficiency	98.5%
European Weighted Efficiency	98.2%
MPPT Efficiency	99.9%
Active Anti-islanding Protection	General Electric Frequency Shift
Residual Current Monitoring	YES
DC Reverse Polarity Protection	YES
DC Switch	YES
AC Short-circuit Protection	YES
AC Overvoltage Protection	YES
AC Overcurrent Protection	YES
Ground Fault Detection	YES
AFCI	YES
Operating Temperature Range	-30 to + 60Â°C
Relative Operating Humidity	0 - 100% RH
Operating Altitude	4000m
Cooling	Smart Air Cooling
Display	LED+APP
Communication	RS485 / 4G / WIFI
Dimensions (W x H x D)	519 x 426 x 192mm
Topology	Non-Isolated
Degree of Protection	IP66
Overvoltage Level	PV II/AC III
24kW PV Oversizing Capability	Supports up to 24,000W DC input power (160% PV oversizing) across dual MPPT channels for maximum daily energy capture.
Advanced Arc Fault & Surge Protection	Features built-in Type II DC/AC surge protection and intelligent AFCI arc detection with rapid 0.5-second shutdown.
High Input Current Design	Fully compatible with current modern high-power bifacial and large-format PV modules.
IP66 Rugged Enclosure	Provides complete dust protection and water-jet resistance for long-term outdoor reliability in harsh climates.
Smart Monitoring & Diagnostics	Offers fast app setup, live cloud data updates, and intelligent IV curve diagnostics for quick fault identification.
Commercial & Business Buildings	Ideal for small-to-medium commercial facilities, offices, retail centers, and factories operating on three-phase grid power to reduce daytime power costs.
Large Residential Estates	Excellent choice for large modern homes, villas, and luxury multi-family properties requiring substantial 3-phase solar output capacity.
Agricultural & Farming Infrastructure	Well-suited for agricultural facilities, dairy farms, cold storage operations, and solar irrigation systems connected to local three-phase grids.
Split & Multi-Angle Solar Arrays	Dual MPPT channels allow solar panel strings to be configured across different roof slopes without cross-array mismatch loss.

DC Surge Protection	Type II
AC Surge Protection	Type II
Weight (Approx.)	45 kg
Max. Input Power	24,000W
Max. Input Voltage	1,100V
Nominal Input Voltage	600V
Start-up Voltage	160V
MPPT Operating Voltage Range	140 - 1,000V
MPPT Full Load Voltage Range	315 - 850V
Max. Input Current Per MPPT	40A
Max. Input Current Per String	20A
Max Short-Circuit Current	50A

HYXiPOWER 15 kW (HYX-S15K-T) Three Phase On-Grid Solar String Inverter with Dual MPPT IP66 Weatherproof Enclosure

About HYXiPOWER 15 kW (HYX-S15K-T) Three Phase On-Grid Solar String Inverter with Dual MPPT IP66 Weatherproof Enclosure
