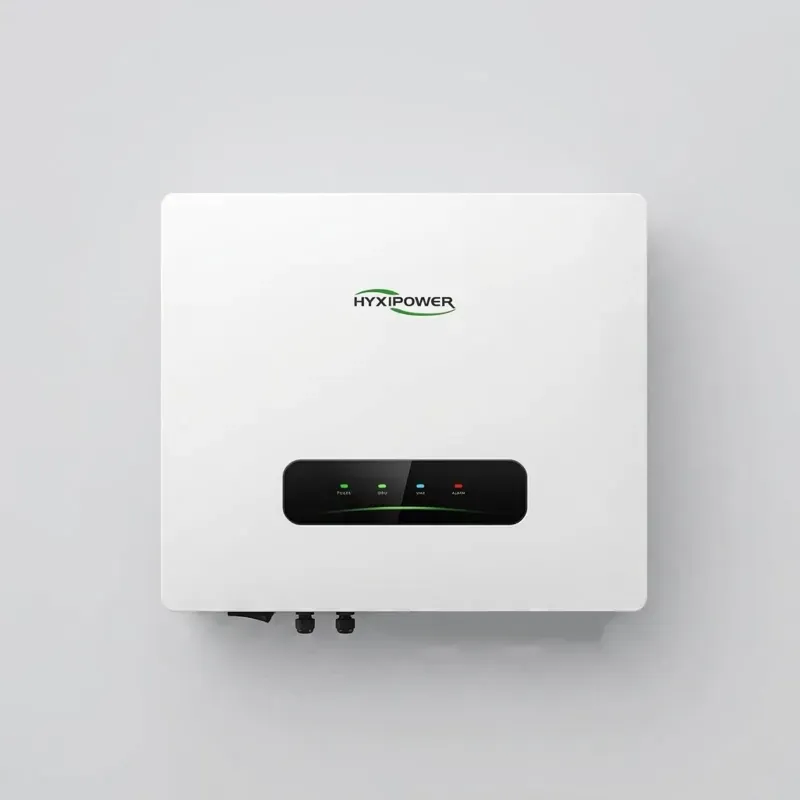

Name: HYXiPOWER 12 kW (HYX-S12K-T) Three Phase Solar String Inverter With IP66 Protection and Dual MPPT for Commercial Use
Brand: HYXiPOWER
SKU: thagri11393
Availability: InStock

Question 1

Can dealers or distributors get a custom quote for HYXiPOWER 12 kW (HYX-S12K-T) Three Phase Solar String Inverter With IP66 Protection and Dual MPPT for Commercial Use in large volumes?

Accepted Answer

Yes — use the RFQ feature for dealer or distributor-level HYXiPOWER 12 kW (HYX-S12K-T) Three Phase Solar String Inverter With IP66 Protection and Dual MPPT for Commercial Use orders. Our sales team provides a dedicated quote and delivery plan for bulk agricultural equipment purchases.

Question 2

How long does delivery take for HYXiPOWER 12 kW (HYX-S12K-T) Three Phase Solar String Inverter With IP66 Protection and Dual MPPT for Commercial Use orders, including to rural areas?

Accepted Answer

Delivery timelines for HYXiPOWER 12 kW (HYX-S12K-T) Three Phase Solar String Inverter With IP66 Protection and Dual MPPT for Commercial Use are shown at checkout based on your pincode. ToolHaat delivers pan-India, including rural and semi-urban locations, though larger equipment may have a longer transit window than smaller accessories.

Question 3

Does HYXiPOWER 12 kW (HYX-S12K-T) Three Phase Solar String Inverter With IP66 Protection and Dual MPPT for Commercial Use come with a warranty or after-sales support?

Accepted Answer

Warranty terms for HYXiPOWER 12 kW (HYX-S12K-T) Three Phase Solar String Inverter With IP66 Protection and Dual MPPT for Commercial Use vary by vendor and brand — check the product listing for specific coverage. ToolHaat support can help connect you with the vendor for warranty claims or service queries after purchase.

Question 4

Are spare parts or accessories for HYXiPOWER 12 kW (HYX-S12K-T) Three Phase Solar String Inverter With IP66 Protection and Dual MPPT for Commercial Use also available on ToolHaat?

Accepted Answer

Many HYXiPOWER 12 kW (HYX-S12K-T) Three Phase Solar String Inverter With IP66 Protection and Dual MPPT for Commercial Use categories on ToolHaat also list compatible accessories and spare parts separately — check related subcategories or use search to find parts matching your specific model.

Question 5

Can I compare different brands and price points for HYXiPOWER 12 kW (HYX-S12K-T) Three Phase Solar String Inverter With IP66 Protection and Dual MPPT for Commercial Use before buying?

Accepted Answer

Yes — ToolHaat lists HYXiPOWER 12 kW (HYX-S12K-T) Three Phase Solar String Inverter With IP66 Protection and Dual MPPT for Commercial Use from multiple vendors and brands at different price points and specifications, so you can compare before committing to a bulk purchase.

Brand	HYXiPOWER
Weight (Approx.)	40 kg
Max. Input Power	19200W
Max. Input Voltage	1100Vd.c.
Nominal Input Voltage	600Vd.c.
Start-up Voltage	160Vd.c
MPPT Operating Voltage Range	140 - 1000Vd.c.
MPPT Full Load Voltage Range	330 ~ 850Vd.c.
Max. Input Current Per MPPT	18Ad.c.
Max Short-Circuit Current	24Ad.c.
Number of MPPT	2
Max. Input Number Per MPPT	1/1
Nominal Output Power	12000W
Max. Apparent Power	13200VA
Nominal Output Voltage	3L/N/PE, 220/380Va.c., 230/400Va.c.
Nominal AC Grid Frequency	50/60Hz
THDi	< 3%
Max. Efficiency	98.5%
European Weighted Efficiency	98.1%
MPPT Efficiency	99.9%
Active Anti-islanding Protection	General Electric Frequency Shift
Residual Current Monitoring	YES
DC Reverse Polarity Protection	YES
DC Switch	YES
AC Short-circuit Protection	YES
AC Overvoltage Protection	YES
AC Overcurrent Protection	YES
DC Surge Protection	Type II
AC Surge Protection	Type II
Ground Fault Detection	YES
AFCI	YES
Operating Temperature Range	-30 to + 60Â°C
Relative Operating Humidity	0 - 100% RH
Operating Altitude	4000m
Cooling	Natural Cooling
Display	LED+APP
Communication	RS485/4G/WIFI
Weight	21kg
Dimensions (W x H x D)	522 Ã— 416 Ã— 162.5mm
Topology	Non-Isolated
Degree of Protection	IP66
Overvoltage Level	PV II/AC III
Ultra High Energy Yield	Features up to 98.5% maximum efficiency and 99.9% MPPT efficiency to minimize power conversion loss.
Dual MPPT	Allows oversized solar panel across two separate tracking channels for maximum generation efficiency.
IP66 Industrial-Grade Protection	Dust-tight and water-jet resistant enclosure ensures long service life in harsh outdoor climates.
Smart Monitoring & Rapid Configuration	Supports plug-and-play setup with real-time web and mobile app monitoring via WiFi.
Large Residential Homes	Designed for three-phase large homes requiring robust, high-capacity solar power conversion with multi string rooftop installations.
Commercial & Business Buildings	Ideal for small-to-medium commercial offices, retail centers, and workshops looking to lower daytime operational power costs.
Agricultural & Rural Facilities	Suitable for powering farm infrastructure, solar irrigation pumps, and cold storage units requiring steady 3-phase grid connections.
Multi-Angle Rooftop Layouts	Dual MPPT channels make it easy to manage split solar array installations (e.g., East-West roof orientations) without performance degradation.
On-Grid Net Metering Systems	Built for direct integration into municipal 3-phase electrical grids to maximize feed-in tariff benefits and energy offset.
