Havells · SKU: thagri10347

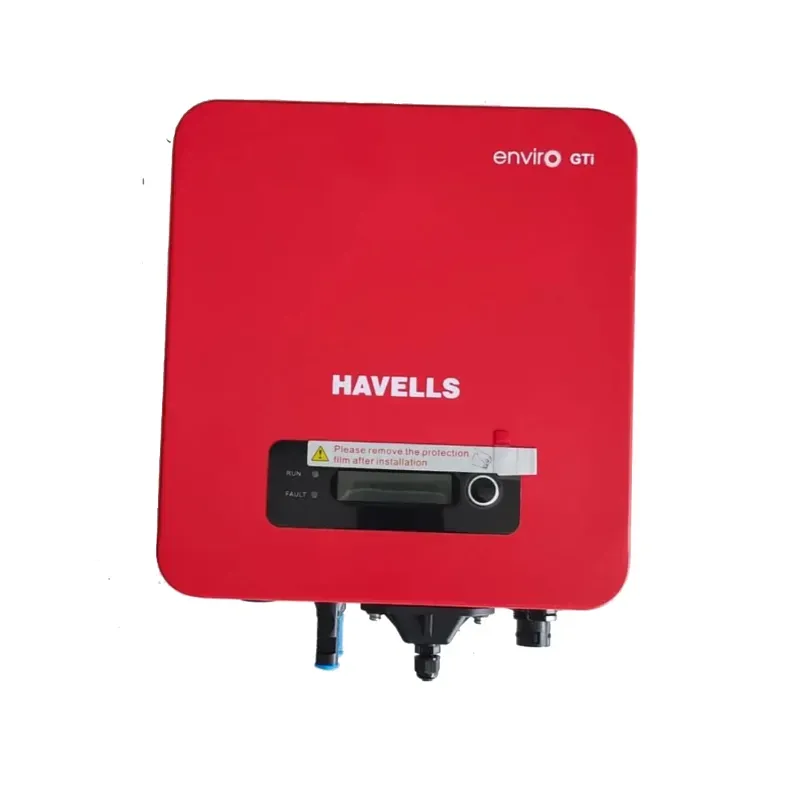

Havells 5 kW Enviro GTi5000D NG Single Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftop Systems
In Stock
₹43,659₹61,800-29% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Havells |
| Weight (Approx.) | 10 kg |
| Recommended Max. PV input power | 7500 Wp |
| Max. DC power for single MPPT | 3750 W |
| Number of MPP trackers | 2 |
| Number of DC inputs | 1 for each MPPT |
| Max. Input voltage | 600 V |
| Start-up voltage | 90 V |
| Rated input voltage | 380 V |
| MPPT operating voltage range | 80 V - 550 V |
| Full power MPPT voltage range | 210 V - 500 V |
| Max. Input MPPT current | 15 A / 15 A |
| Max. input short circuit current per MPPT | 22.5 A / 22.5 A |
| Rated Power | 5000 W |
| Max. AC Power | 5500 VA |
| Nominal output current | 22.7 A |
| Max. Output current | 25 A |
| Nominal grid voltage | L/N/PE, 220 Vac, 230 Vac, 240 Vac |
| Grid voltage range | 180 Vac-276 Vac (According to local standard) |
| Nominal frequency | 50 Hz / 60 Hz |
| Grid frequency range | 45 Hz - 55 Hz (According to local standard) |
| Active power adjustable range | 0~100 % |
| THDi | <3 % |
| Power factor | 1default (adjustable+/-0. 8) |
| Max. efficiency | 98.4 % |
| European efficiency | 97.5 % |
| DC Reverse Polarity Protection | Yes |
| DC Switch | Optional |
| AFCI protection | Optional |
| Protection class/overvoltage category | I / III |
| Safety protection | Anti islanding, RCMU, Ground fault monitoring |
| SPD | MOV - Type III standard |
| Standard communication mode | RS485 / USB, Optional: WiFi / GPRS |
| Ambient temperature range | -30 °C~+60 °C |
| Self-consumption at night | <1 W |
| Topology | Transformerless |
| Degree of protection | IP65 |
| Allowable relative humidity range | 0~100 % |
| Max. Operating altitude | 4000 m |
| Noise | <25 dB |
| Cooling | Natural |
| Display | LCD |
| Dimension | 349 mm x 344 mm x 164 mm |
| EMC | EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, |
| Safety standards | IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1,2,14,30), IEC 62109-1/2 |
| Dual MPPT Optimization | Tracks power output from two separate panel arrays independently to optimize energy harvest across complex roof angles. |
| Real-Time Remote Monitoring | Monitor power generation history and system diagnostics live via desktop or mobile app using WiFi/GPRS dongles. |
| High Power Rating | 5kW (5000W) continuous AC output capacity designed for efficient grid-tied solar generation. |
| Residential Solar Rooftops | Perfect for independent houses, villas, and residential apartments equipped with 5kW solar PV arrays. |
| Commercial Offices & Retail | Ideal for small-to-medium offices, retail stores, and service centers looking to offset grid energy consumption during daytime hours. |
| Educational Institutions | Suitable for schools, colleges, and training centers operating high daytime electrical loads. |
| Health & Hospitality Facilities | Powers clinics, small hotels, and banquet halls directly with green, clean solar electricity. |
| Mounting | Securely mount the inverter vertically on a flat, solid wall or structure in a well-ventilated area protected from direct rain and prolonged direct sunlight. |
| DC/AC Wiring | Connect the DC string cables from your solar PV arrays to the dual MC4 input terminals. Connect the AC output terminals to your main distribution panel with proper grounding. |
| Data Logger Setup | Plug the WiFi/GPRS data logger into the USB port and configure connection settings using the smartphone mobile app. |
| System Activation | Turn on the external AC isolator first, then switch on the integrated DC switch on the inverter body to start grid synchronization. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Havells 5 kW Enviro GTi5000D NG Single Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftop Systems
Havells 5 kW Enviro GTi5000D NG Single Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftop Systems is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by Havells. Key specifications include weight (approx.) 10 kg, recommended max. pv input power 7500 Wp, max. dc power for single mppt 3750 W, number of mpp trackers 2, number of dc inputs 1 for each MPPT. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Havells 5 kW Enviro GTi5000D NG Single Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftop Systems specifications
| Weight (Approx.) | 10 kg |
|---|---|
| Recommended Max. PV input power | 7500 Wp |
| Max. DC power for single MPPT | 3750 W |
| Number of MPP trackers | 2 |
| Number of DC inputs | 1 for each MPPT |
| Max. Input voltage | 600 V |
| Start-up voltage | 90 V |
| Rated input voltage | 380 V |
| MPPT operating voltage range | 80 V - 550 V |
| Full power MPPT voltage range | 210 V - 500 V |
| Max. Input MPPT current | 15 A / 15 A |
| Max. input short circuit current per MPPT | 22.5 A / 22.5 A |
FAQs related to Havells 5 kW Enviro GTi5000D NG Single Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftop Systems
Are spare parts or accessories for Havells 5 kW Enviro GTi5000D NG Single Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftop Systems also available on ToolHaat?
+
Many Havells 5 kW Enviro GTi5000D NG Single Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftop Systems categories on ToolHaat also list compatible accessories and spare parts separately — check related subcategories or use search to find parts matching your specific model.
Is Havells 5 kW Enviro GTi5000D NG Single Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftop Systems suitable for both small farms and large agricultural operations?
+
ToolHaat lists Havells 5 kW Enviro GTi5000D NG Single Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftop Systems across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
What if Havells 5 kW Enviro GTi5000D NG Single Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftop Systems arrives damaged or doesn’t match the listed specifications?
+
Contact ToolHaat support with your order ID and photos if Havells 5 kW Enviro GTi5000D NG Single Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftop Systems arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.
Does Havells 5 kW Enviro GTi5000D NG Single Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftop Systems come with a warranty or after-sales support?
+
Warranty terms for Havells 5 kW Enviro GTi5000D NG Single Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftop Systems vary by vendor and brand — check the product listing for specific coverage. ToolHaat support can help connect you with the vendor for warranty claims or service queries after purchase.
How long does delivery take for Havells 5 kW Enviro GTi5000D NG Single Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftop Systems orders, including to rural areas?
+
Delivery timelines for Havells 5 kW Enviro GTi5000D NG Single Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftop Systems are shown at checkout based on your pincode. ToolHaat delivers pan-India, including rural and semi-urban locations, though larger equipment may have a longer transit window than smaller accessories.
