Havells · SKU: thagri11392

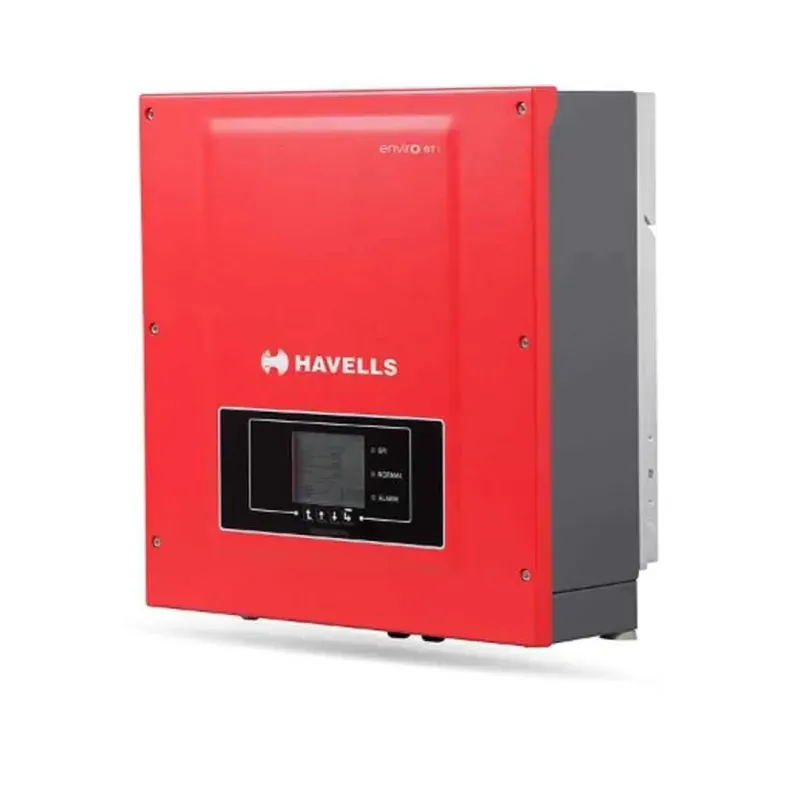

Havells 5000 W Enviro GTi 5500TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops
In Stock
₹76,715₹1,08,500-29% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Havells |
| Weight (Approx.) | 17 kg |
| Recommended Max. PV input power | 7500 Wp |
| Number of MPP trackers | 2 |
| Number of DC inputs | 1/1 |
| Max. Input voltage | 1100 V |
| Start-up voltage | 160 V |
| Rated input voltage | 650 V |
| MPPT operating voltage range | 140 V - 1000 V |
| Full power MPPT voltage range | 240 V - 850 V |
| Max. Input MPPT current | 15 A / 15 A |
| Max. input short circuit current per MPPT | 22.5 A / 22.5 A |
| Rated Power | 5000 W |
| Max. AC Power | 5500 VA |
| Max. Output current | 8.3 A |
| Nominal grid voltage | 3 / N / PE, 220 V / 380 Vac, 230 V / 400 Vac |
| Grid voltage range | 310 Vac - 480 Vac ( According to local standard ) |
| Nominal frequency | 50 Hz / 60 Hz |
| Grid frequency range | 45 Hz - 55 Hz (According to local standard) |
| Active power adjustable range | 0~100 % |
| THDi | <3 % |
| Power factor | 1default (adjustable+/-0. 8) |
| Max. efficiency | 98.4 % |
| European efficiency | 97.5 % |
| DC Reverse Polarity Protection | Yes |
| Anti-islanding protection | Yes |
| Leakage current protection | Yes |
| Ground fault monitoring | Yes |
| PV-array string fault monitoring | Yes |
| Anti reverse power function | Yes |
| DC switch | Yes |
| AFCI protection | Optional |
| Input / output SPD | PV- type II standard, AC: type II standard |
| Standard communication mode | RS485 / USB / Bluetooth, Optional: WiFi / GPRS |
| Ambient temperature range | -30 °C~+60 °C |
| Self-consumption at night | <1 W |
| Topology | Transformerless |
| Degree of protection | IP65 |
| Allowable relative humidity range | 0~100 % |
| Max. Operating altitude | 4000 m |
| Noise | <40 dB |
| Cooling | Natural |
| Display | LCD |
| Dimension | 430 mm x 385 mm x 82 mm |
| EMC | EN61000-3-2, EN61000-3-3, EN61000-3-11, EN61000-3-12, EN61000-6-1, EN61000-6-3 |
| Safety standards | IEC62109-1/2, IEC62116, IEC61727, IEC61683, IEC60068 (1,2,14,30) |
| Three Phase Grid Synchronization | Delivers balanced 3-phase power distribution across all lines to handle commercial electrical equipment seamlessly. |
| Dual MPPT Channel Optimization | Maximizes energy yield from two independent solar array strings facing different directions or inclinations. |
| Integrated Anti-Reverse / Zero Export | Built-in power control functionality lets you restrict grid feed-in to meet local DISCOM requirements. |
| Rugged IP65 Housing | Weatherproof design protects internal electronics against rain, dust, and aggressive environmental elements. |
| Real-Time Online Diagnostics | Plug-and-play USB WiFi/GPRS dongles provide instant remote monitoring via mobile application or web portal. |
| Natural Convection Cooling | Fanless heat dissipation structure reduces mechanical failure risks, ensures silent operation, and lowers maintenance needs. |
| Residential Solar Rooftops | Perfect for independent houses, villas, and residential apartments |
| Commercial Offices & Retail | Ideal for small-to-medium offices, retail stores, and service centers looking to offset grid energy consumption during daytime hours. |
| Educational Institutions | Suitable for schools, colleges, and training centers operating high daytime electrical loads. |
| Health & Hospitality Facilities | Powers clinics, small hotels, and banquet halls directly with green, clean solar electricity. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Havells 5000 W Enviro GTi 5500TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops
Havells 5000 W Enviro GTi 5500TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by Havells. Key specifications include weight (approx.) 17 kg, recommended max. pv input power 7500 Wp, number of mpp trackers 2, number of dc inputs 1/1, max. input voltage 1100 V. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Havells 5000 W Enviro GTi 5500TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops specifications
| Weight (Approx.) | 17 kg |
|---|---|
| Recommended Max. PV input power | 7500 Wp |
| Number of MPP trackers | 2 |
| Number of DC inputs | 1/1 |
| Max. Input voltage | 1100 V |
| Start-up voltage | 160 V |
| Rated input voltage | 650 V |
| MPPT operating voltage range | 140 V - 1000 V |
| Full power MPPT voltage range | 240 V - 850 V |
| Max. Input MPPT current | 15 A / 15 A |
| Max. input short circuit current per MPPT | 22.5 A / 22.5 A |
| Rated Power | 5000 W |
FAQs related to Havells 5000 W Enviro GTi 5500TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops
Can dealers or distributors get a custom quote for Havells 5000 W Enviro GTi 5500TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops in large volumes?
+
Yes — use the RFQ feature for dealer or distributor-level Havells 5000 W Enviro GTi 5500TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops orders. Our sales team provides a dedicated quote and delivery plan for bulk agricultural equipment purchases.
Can Havells 5000 W Enviro GTi 5500TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops orders be timed to arrive before the sowing or harvest season?
+
Yes — for seasonal equipment needs, place your Havells 5000 W Enviro GTi 5500TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops order with enough lead time before peak season, or contact our sales team to confirm stock availability and delivery timing ahead of sowing or harvest windows.
How long does delivery take for Havells 5000 W Enviro GTi 5500TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops orders, including to rural areas?
+
Delivery timelines for Havells 5000 W Enviro GTi 5500TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops are shown at checkout based on your pincode. ToolHaat delivers pan-India, including rural and semi-urban locations, though larger equipment may have a longer transit window than smaller accessories.
Can I compare different brands and price points for Havells 5000 W Enviro GTi 5500TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops before buying?
+
Yes — ToolHaat lists Havells 5000 W Enviro GTi 5500TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops from multiple vendors and brands at different price points and specifications, so you can compare before committing to a bulk purchase.
What if Havells 5000 W Enviro GTi 5500TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops arrives damaged or doesn’t match the listed specifications?
+
Contact ToolHaat support with your order ID and photos if Havells 5000 W Enviro GTi 5500TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.
